Schema OTA_VehResRS.xsd

schema location:	http://xmlprosdk.wspan.com/msgdoc/wsdl/OTA_VehResRS.xsd
attribute form default:
element form default:	qualified
targetNamespace:	http://www.opentravel.org/OTA_RS/2003/05

Elements	Complex types	Simple types	Attr. groups
OTA_VehResRS	BankAcctType	AlphaLength3	CompanyID_AttributesGroup
TPA_Extensions	CompanyNameType	AlphaNumericStringLength1to19	CurrencyAmountGroup
	CustomerPrimaryAdditionalType	AlphaNumericStringLength1to8	CurrencyCodeGroup
	CustomerType	DistanceUnitNameType	CustomerLoyaltyGroup
	DirectBillType	EquipmentRestrictionType	ErrorWarningAttributeGroup
	ErrorsType	MMYYDate	ID_Group
	ErrorType	Money	LocationGroup
	FormattedTextSubSectionType	Numeric1to99	OTA_PayloadStdAttributes
	FormattedTextTextType	Numeric1to999	PaymentCardDateGroup
	FormattedTextType	NumericStringLength1to19	PromotionCodeGroup
	FreeTextType	OffLocationServiceID_Type	RateQualifierCoreGroup
	LocationType	OTA_CodeType	TelephoneAttributesGroup
	OffLocationServiceCoreType	PaymentCardCodeType	TelephoneGroup
	OffLocationServicePricedType	RatePeriodSimpleType	TelephoneInfoGroup
	OffLocationServiceType	StringLength0to128	UniqueID_Group
	ParagraphType	StringLength0to255	VehicleClassGroup
	PaymentCardType	StringLength0to64	VehicleEquipmentCoreGroup
	PaymentDetailType	StringLength1to128	VehicleRateDistanceGroup
	PaymentFormType	StringLength1to16	VehicleTypeGroup
	PersonNameType	StringLength1to32	VoucherGroup
	RateQualifierType	StringLength1to64
	SuccessType	StringLength1to8
	TPA_ExtensionsType	TransactionStatusType
	UniqueID_Type	UpperCaseAlphaLength1to2
	VehicleChargePurposeType	VehicleFuelUnitNameType
	VehicleChargeType	VehiclePeriodUnitNameType
	VehicleCoreType	VehicleTransmissionType
	VehicleEquipmentPricedType	VehicleUnitNameType
	VehicleEquipmentType
	VehicleLocationAdditionalDetailsType
	VehicleLocationDetailsType
	VehicleRentalCoreType
	VehicleRentalRateType
	VehicleReservationType
	VehicleResRSAdditionalInfoType
	VehicleResRSCoreType
	VehicleSegmentAdditionalInfoType
	VehicleSegmentCoreType
	VehicleTourInfoType
	VehicleType
	VehicleWhereAtFacilityType
	WarningsType
	WarningType

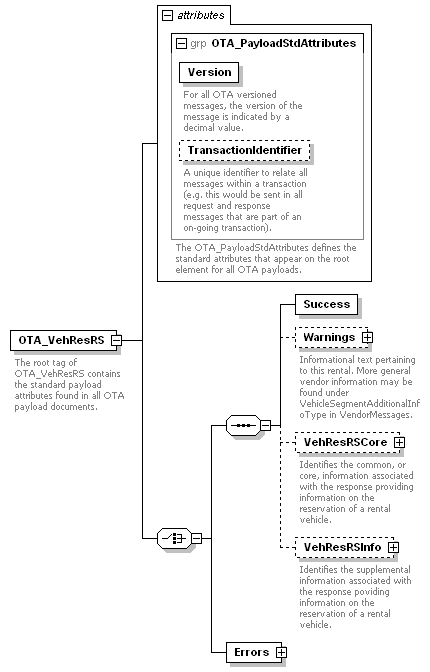

element OTA_VehResRS

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
properties	content  complex
children	Success Warnings VehResRSCore VehResRSInfo Errors
attributes	Name   Type   Use   Default   Fixed   Annotation Version xs:decimal required         documentation For all OTA versioned messages, the version of the message is indicated by a decimal value. TransactionIdentifier StringLength1to32 optional         documentation A unique identifier to relate all messages within a transaction (e.g. this would be sent in all request and response messages that are part of an on-going transaction).
annotation	documentation The root tag of OTA_VehResRS contains the standard payload attributes found in all OTA payload documents.
source	<xs:element name="OTA_VehResRS">   <xs:annotation>     <xs:documentation xml:lang="en">The root tag of OTA_VehResRS contains the standard payload attributes found in all OTA payload documents.  </xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:choice>       <xs:sequence>         <xs:element name="Success" type="SuccessType"/>         <xs:element name="Warnings" type="WarningsType" minOccurs="0">           <xs:annotation>             <xs:documentation xml:lang="en">Informational text pertaining to this rental. More general vendor information may be found under VehicleSegmentAdditionalInfoType in VendorMessages.</xs:documentation>           </xs:annotation>         </xs:element>         <xs:element name="VehResRSCore" minOccurs="0">           <xs:annotation>             <xs:documentation xml:lang="en">Identifies the common, or core, information associated with the response providing information on the reservation of a rental vehicle.</xs:documentation>           </xs:annotation>           <xs:complexType>             <xs:complexContent>               <xs:extension base="VehicleResRSCoreType">                 <xs:attribute name="ReservationStatus" use="optional">                   <xs:annotation>                     <xs:documentation xml:lang="en">Used to specify the status of the reservation with either one of the enumerations in TransactionStatusType or an UpperCaseAlphaLength1to2 code such as an IATA status code. </xs:documentation>                   </xs:annotation>                   <xs:simpleType>                     <xs:union memberTypes="TransactionStatusType UpperCaseAlphaLength1to2"/>                   </xs:simpleType>                 </xs:attribute>               </xs:extension>             </xs:complexContent>           </xs:complexType>         </xs:element>         <xs:element name="VehResRSInfo" type="VehicleResRSAdditionalInfoType" minOccurs="0">           <xs:annotation>             <xs:documentation xml:lang="en">Identifies the supplemental information associated with the response poviding information on the reservation of a rental vehicle.</xs:documentation>           </xs:annotation>         </xs:element>       </xs:sequence>       <xs:element name="Errors" type="ErrorsType"/>     </xs:choice>     <xs:attributeGroup ref="OTA_PayloadStdAttributes"/>   </xs:complexType> </xs:element>

element OTA_VehResRS/Success

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
type	SuccessType
properties	isRef  0 content  complex
source	<xs:element name="Success" type="SuccessType"/>

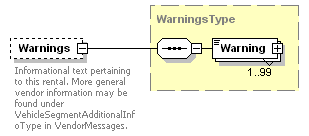

element OTA_VehResRS/Warnings

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
type	WarningsType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	Warning
annotation	documentation Informational text pertaining to this rental. More general vendor information may be found under VehicleSegmentAdditionalInfoType in VendorMessages.
source	<xs:element name="Warnings" type="WarningsType" minOccurs="0">   <xs:annotation>     <xs:documentation xml:lang="en">Informational text pertaining to this rental. More general vendor information may be found under VehicleSegmentAdditionalInfoType in VendorMessages.</xs:documentation>   </xs:annotation> </xs:element>

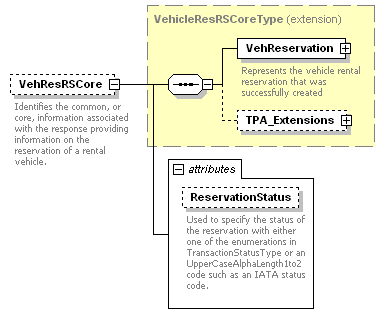

element OTA_VehResRS/VehResRSCore

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
type	extension of VehicleResRSCoreType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	VehReservation TPA_Extensions
attributes	Name   Type   Use   Default   Fixed   Annotation ReservationStatus derived by: TransactionStatusType optional         documentation Used to specify the status of the reservation with either one of the enumerations in TransactionStatusType or an UpperCaseAlphaLength1to2 code such as an IATA status code.
annotation	documentation Identifies the common, or core, information associated with the response providing information on the reservation of a rental vehicle.
source	<xs:element name="VehResRSCore" minOccurs="0">   <xs:annotation>     <xs:documentation xml:lang="en">Identifies the common, or core, information associated with the response providing information on the reservation of a rental vehicle.</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="VehicleResRSCoreType">         <xs:attribute name="ReservationStatus" use="optional">           <xs:annotation>             <xs:documentation xml:lang="en">Used to specify the status of the reservation with either one of the enumerations in TransactionStatusType or an UpperCaseAlphaLength1to2 code such as an IATA status code. </xs:documentation>           </xs:annotation>           <xs:simpleType>             <xs:union memberTypes="TransactionStatusType UpperCaseAlphaLength1to2"/>           </xs:simpleType>         </xs:attribute>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

attribute OTA_VehResRS/VehResRSCore/@ReservationStatus

type	union of (TransactionStatusType, UpperCaseAlphaLength1to2)
properties	isRef  0 use  optional
annotation	documentation Used to specify the status of the reservation with either one of the enumerations in TransactionStatusType or an UpperCaseAlphaLength1to2 code such as an IATA status code.
source	<xs:attribute name="ReservationStatus" use="optional">   <xs:annotation>     <xs:documentation xml:lang="en">Used to specify the status of the reservation with either one of the enumerations in TransactionStatusType or an UpperCaseAlphaLength1to2 code such as an IATA status code. </xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:union memberTypes="TransactionStatusType UpperCaseAlphaLength1to2"/>   </xs:simpleType> </xs:attribute>

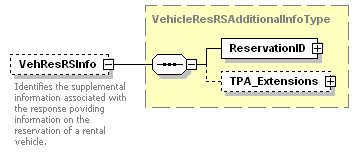

element OTA_VehResRS/VehResRSInfo

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
type	VehicleResRSAdditionalInfoType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	ReservationID TPA_Extensions
annotation	documentation Identifies the supplemental information associated with the response poviding information on the reservation of a rental vehicle.
source	<xs:element name="VehResRSInfo" type="VehicleResRSAdditionalInfoType" minOccurs="0">   <xs:annotation>     <xs:documentation xml:lang="en">Identifies the supplemental information associated with the response poviding information on the reservation of a rental vehicle.</xs:documentation>   </xs:annotation> </xs:element>

element OTA_VehResRS/Errors

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
type	ErrorsType
properties	isRef  0 content  complex
children	Error
source	<xs:element name="Errors" type="ErrorsType"/>

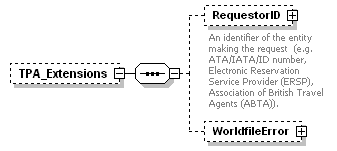

element TPA_Extensions

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
type	TPA_ExtensionsType
properties	content  complex
annotation	documentation A placeholder in the schema to allow for additional elements and attributes to be included if required, per Trading Partner Agreement (TPA).
source	<xs:element name="TPA_Extensions" type="TPA_ExtensionsType">   <xs:annotation>     <xs:documentation xml:lang="en">A placeholder in the schema to allow for additional elements and attributes to be included if required, per Trading Partner Agreement (TPA).</xs:documentation>   </xs:annotation> </xs:element>

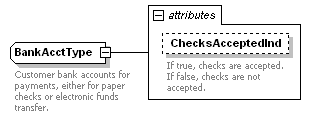

complexType BankAcctType

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
used by	element  PaymentFormType/BankAcct
attributes	Name   Type   Use   Default   Fixed   Annotation ChecksAcceptedInd xs:boolean optional         documentation If true, checks are accepted. If false, checks are not accepted.
annotation	documentation Customer bank accounts for payments, either for paper checks or electronic funds transfer.
source	<xs:complexType name="BankAcctType">   <xs:annotation>     <xs:documentation xml:lang="en">Customer bank accounts for payments, either for paper checks or electronic funds transfer.</xs:documentation>   </xs:annotation>   <xs:attribute name="ChecksAcceptedInd" type="xs:boolean" use="optional">     <xs:annotation>       <xs:documentation xml:lang="en">If true, checks are accepted. If false, checks are not accepted.</xs:documentation>     </xs:annotation>   </xs:attribute> </xs:complexType>

attribute BankAcctType/@ChecksAcceptedInd

type	xs:boolean
properties	isRef  0 use  optional
annotation	documentation If true, checks are accepted. If false, checks are not accepted.
source	<xs:attribute name="ChecksAcceptedInd" type="xs:boolean" use="optional">   <xs:annotation>     <xs:documentation xml:lang="en">If true, checks are accepted. If false, checks are not accepted.</xs:documentation>   </xs:annotation> </xs:attribute>

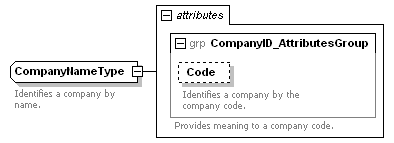

complexType CompanyNameType

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
type	extension of StringLength0to128
properties	base  StringLength0to128
used by	element  VehicleSegmentCoreType/Vendor
facets	minLength  0 maxLength  128
attributes	Name   Type   Use   Default   Fixed   Annotation Code StringLength1to16 optional         documentation Identifies a company by the company code.
annotation	documentation Identifies a company by name.
source	<xs:complexType name="CompanyNameType">   <xs:annotation>     <xs:documentation xml:lang="en">Identifies a company by name.</xs:documentation>   </xs:annotation>   <xs:simpleContent>     <xs:extension base="StringLength0to128">       <xs:attributeGroup ref="CompanyID_AttributesGroup"/>     </xs:extension>   </xs:simpleContent> </xs:complexType>

complexType CustomerPrimaryAdditionalType

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
children	Primary

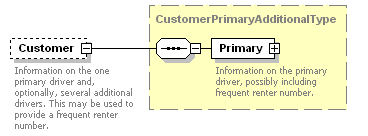

used by	element  VehicleReservationType/Customer
annotation	documentation Information on the one primary driver and, optionally, several additional drivers. This may be used to provide a frequent renter number.
source	<xs:complexType name="CustomerPrimaryAdditionalType">   <xs:annotation>     <xs:documentation xml:lang="en">Information on the one primary driver and, optionally, several additional drivers. This may be used to provide a frequent renter number.</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="Primary">       <xs:annotation>         <xs:documentation xml:lang="en">Information on the primary driver, possibly including frequent renter number.</xs:documentation>       </xs:annotation>       <xs:complexType>         <xs:complexContent>           <xs:extension base="CustomerType">             <xs:sequence>               <xs:element name="CustomerID" type="UniqueID_Type" minOccurs="0">                 <xs:annotation>                   <xs:documentation xml:lang="en">The identification of the customer for whom a booking is being requested. This is different from the customer's loyalty number.</xs:documentation>                 </xs:annotation>               </xs:element>             </xs:sequence>           </xs:extension>         </xs:complexContent>       </xs:complexType>     </xs:element>   </xs:sequence> </xs:complexType>

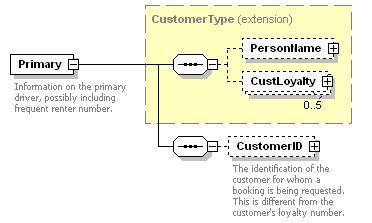

element CustomerPrimaryAdditionalType/Primary

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
type	extension of CustomerType
properties	isRef  0 content  complex
children	PersonName CustLoyalty CustomerID
annotation	documentation Information on the primary driver, possibly including frequent renter number.
source	<xs:element name="Primary">   <xs:annotation>     <xs:documentation xml:lang="en">Information on the primary driver, possibly including frequent renter number.</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="CustomerType">         <xs:sequence>           <xs:element name="CustomerID" type="UniqueID_Type" minOccurs="0">             <xs:annotation>               <xs:documentation xml:lang="en">The identification of the customer for whom a booking is being requested. This is different from the customer's loyalty number.</xs:documentation>             </xs:annotation>           </xs:element>         </xs:sequence>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

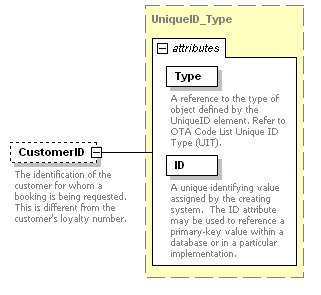

element CustomerPrimaryAdditionalType/Primary/CustomerID

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
type	UniqueID_Type
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation Type OTA_CodeType required         documentation A reference to the type of object defined by the UniqueID element. Refer to OTA Code List Unique ID Type (UIT). ID StringLength1to32 required         documentation A unique identifying value assigned by the creating system.  The ID attribute may be used to reference a primary-key value within a database or in a particular implementation.
annotation	documentation The identification of the customer for whom a booking is being requested. This is different from the customer's loyalty number.
source	<xs:element name="CustomerID" type="UniqueID_Type" minOccurs="0">   <xs:annotation>     <xs:documentation xml:lang="en">The identification of the customer for whom a booking is being requested. This is different from the customer's loyalty number.</xs:documentation>   </xs:annotation> </xs:element>

complexType CustomerType

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
children	PersonName CustLoyalty
used by	element  CustomerPrimaryAdditionalType/Primary
annotation	documentation Contains basic data on the customer's identity, location, relationships, finances, memberships, etc.
source	<xs:complexType name="CustomerType">   <xs:annotation>     <xs:documentation xml:lang="en">Contains basic data on the customer's identity, location, relationships, finances, memberships, etc.</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="PersonName" type="PersonNameType" minOccurs="0"/>     <xs:element name="CustLoyalty" minOccurs="0" maxOccurs="5">       <xs:complexType>         <xs:attributeGroup ref="CustomerLoyaltyGroup"/>       </xs:complexType>     </xs:element>   </xs:sequence> </xs:complexType>

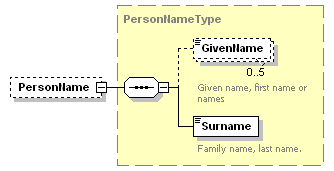

element CustomerType/PersonName

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
type	PersonNameType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	GivenName Surname
source	<xs:element name="PersonName" type="PersonNameType" minOccurs="0"/>

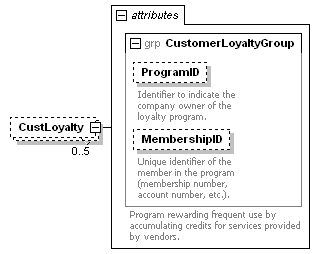

element CustomerType/CustLoyalty

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
properties	isRef  0 minOcc  0 maxOcc  5 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation ProgramID StringLength1to16          documentation Identifier to indicate the company owner of the loyalty program. MembershipID StringLength1to32          documentation Unique identifier of the member in the program (membership number, account number, etc.).
source	<xs:element name="CustLoyalty" minOccurs="0" maxOccurs="5">   <xs:complexType>     <xs:attributeGroup ref="CustomerLoyaltyGroup"/>   </xs:complexType> </xs:element>

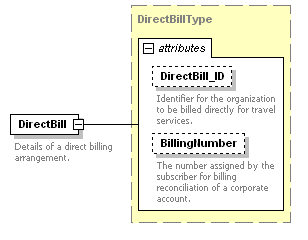

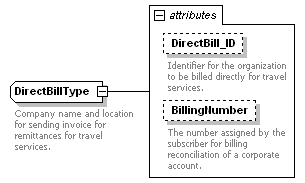

complexType DirectBillType

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
used by	element  PaymentFormType/DirectBill
attributes	Name   Type   Use   Default   Fixed   Annotation DirectBill_ID StringLength1to32 optional         documentation Identifier for the organization to be billed directly for travel services. BillingNumber StringLength0to64 optional         documentation The number assigned by the subscriber for billing reconciliation of a corporate account.
annotation	documentation Company name and location for sending invoice for remittances for travel services.
source	<xs:complexType name="DirectBillType">   <xs:annotation>     <xs:documentation xml:lang="en">Company name and location for sending invoice for remittances for travel services.</xs:documentation>   </xs:annotation>   <xs:attribute name="DirectBill_ID" type="StringLength1to32" use="optional">     <xs:annotation>       <xs:documentation xml:lang="en">Identifier for the organization to be billed directly for travel services.</xs:documentation>     </xs:annotation>   </xs:attribute>   <xs:attribute name="BillingNumber" type="StringLength0to64" use="optional">     <xs:annotation>       <xs:documentation xml:lang="en">The number assigned by the subscriber for billing reconciliation of a corporate account.</xs:documentation>     </xs:annotation>   </xs:attribute> </xs:complexType>

attribute DirectBillType/@DirectBill_ID

type	StringLength1to32
properties	isRef  0 use  optional
facets	minLength  1 maxLength  32
annotation	documentation Identifier for the organization to be billed directly for travel services.
source	<xs:attribute name="DirectBill_ID" type="StringLength1to32" use="optional">   <xs:annotation>     <xs:documentation xml:lang="en">Identifier for the organization to be billed directly for travel services.</xs:documentation>   </xs:annotation> </xs:attribute>

attribute DirectBillType/@BillingNumber

type	StringLength0to64
properties	isRef  0 use  optional
facets	minLength  0 maxLength  64
annotation	documentation The number assigned by the subscriber for billing reconciliation of a corporate account.
source	<xs:attribute name="BillingNumber" type="StringLength0to64" use="optional">   <xs:annotation>     <xs:documentation xml:lang="en">The number assigned by the subscriber for billing reconciliation of a corporate account.</xs:documentation>   </xs:annotation> </xs:attribute>

complexType ErrorsType

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
children	Error
used by	element  OTA_VehResRS/Errors
annotation	documentation A collection of errors that occurred during the processing of a message.
source	<xs:complexType name="ErrorsType">   <xs:annotation>     <xs:documentation xml:lang="en">A collection of errors that occurred during the processing of a message.</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="Error" type="ErrorType" maxOccurs="99"/>   </xs:sequence> </xs:complexType>

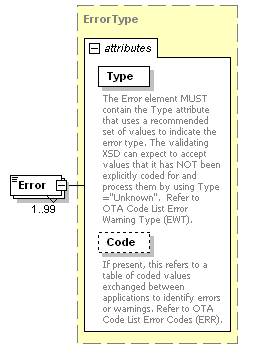

element ErrorsType/Error

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
type	ErrorType
properties	isRef  0 minOcc  1 maxOcc  99 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation Type OTA_CodeType required         documentation The Error element MUST contain the Type attribute that uses a recommended set of values to indicate the error type. The validating XSD can expect to accept values that it has NOT been explicitly coded for and process them by using Type ="Unknown".  Refer to OTA Code List Error Warning Type (EWT). Code OTA_CodeType optional         documentation If present, this refers to a table of coded values exchanged between applications to identify errors or warnings. Refer to OTA Code List Error Codes (ERR).
source	<xs:element name="Error" type="ErrorType" maxOccurs="99"/>

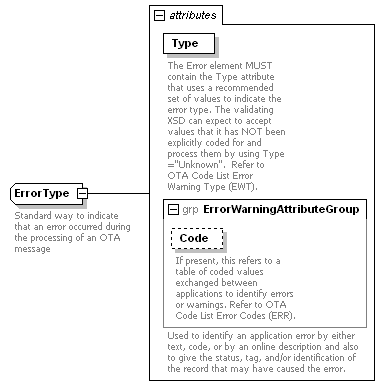

complexType ErrorType

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
type	extension of FreeTextType
properties	base  FreeTextType
used by	element  ErrorsType/Error
attributes	Name   Type   Use   Default   Fixed   Annotation Type OTA_CodeType required         documentation The Error element MUST contain the Type attribute that uses a recommended set of values to indicate the error type. The validating XSD can expect to accept values that it has NOT been explicitly coded for and process them by using Type ="Unknown".  Refer to OTA Code List Error Warning Type (EWT). Code OTA_CodeType optional         documentation If present, this refers to a table of coded values exchanged between applications to identify errors or warnings. Refer to OTA Code List Error Codes (ERR).
annotation	documentation Standard way to indicate that an error occurred during the processing of an OTA message
source	<xs:complexType name="ErrorType">   <xs:annotation>     <xs:documentation xml:lang="en">Standard way to indicate that an error occurred during the processing of an OTA message</xs:documentation>   </xs:annotation>   <xs:simpleContent>     <xs:extension base="FreeTextType">       <xs:attribute name="Type" type="OTA_CodeType" use="required">         <xs:annotation>           <xs:documentation xml:lang="en">The Error element MUST contain the Type attribute that uses a recommended set of values to indicate the error type. The validating XSD can expect to accept values that it has NOT been explicitly coded for and process them by using Type ="Unknown".  Refer to OTA Code List Error Warning Type (EWT).</xs:documentation>         </xs:annotation>       </xs:attribute>       <xs:attributeGroup ref="ErrorWarningAttributeGroup"/>     </xs:extension>   </xs:simpleContent> </xs:complexType>

attribute ErrorType/@Type

type	OTA_CodeType
properties	isRef  0 use  required
facets	pattern  [0-9A-Z]{1,3}(\.[A-Z]{3}(\.X){0,1}){0,1}
annotation	documentation The Error element MUST contain the Type attribute that uses a recommended set of values to indicate the error type. The validating XSD can expect to accept values that it has NOT been explicitly coded for and process them by using Type ="Unknown".  Refer to OTA Code List Error Warning Type (EWT).
source	<xs:attribute name="Type" type="OTA_CodeType" use="required">   <xs:annotation>     <xs:documentation xml:lang="en">The Error element MUST contain the Type attribute that uses a recommended set of values to indicate the error type. The validating XSD can expect to accept values that it has NOT been explicitly coded for and process them by using Type ="Unknown".  Refer to OTA Code List Error Warning Type (EWT).</xs:documentation>   </xs:annotation> </xs:attribute>

complexType FormattedTextSubSectionType

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
children	Paragraph
used by	element  FormattedTextType/SubSection
annotation	documentation Used to provide subsection formatted text information.
source	<xs:complexType name="FormattedTextSubSectionType">   <xs:annotation>     <xs:documentation xml:lang="en">Used to provide subsection formatted text information.</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="Paragraph" type="ParagraphType" maxOccurs="99"/>   </xs:sequence> </xs:complexType>

element FormattedTextSubSectionType/Paragraph

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
type	ParagraphType
properties	isRef  0 minOcc  1 maxOcc  99 content  complex
children	Text
attributes	Name   Type   Use   Default   Fixed   Annotation Name StringLength1to64 optional         documentation In many cases the description repeats, this will allow you to define the information that is being sent, typically used when multiple occurrences of ParagraphType are being sent.
source	<xs:element name="Paragraph" type="ParagraphType" maxOccurs="99"/>

complexType FormattedTextTextType

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
type	extension of xs:string
properties	base  xs:string
used by	elements  VehicleRentalRateType/RateGuarantee/Description RateQualifierType/RateComments/RateComment ParagraphType/Text
annotation	documentation Provides text and indicates whether it is formatted or not.
source	<xs:complexType name="FormattedTextTextType">   <xs:annotation>     <xs:documentation xml:lang="en">Provides text and indicates whether it is formatted or not.</xs:documentation>   </xs:annotation>   <xs:simpleContent>     <xs:extension base="xs:string"/>   </xs:simpleContent> </xs:complexType>

complexType FormattedTextType

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
children	SubSection
used by	element  VehicleSegmentAdditionalInfoType/VendorMessages/VendorMessage
annotation	documentation Collection of formatted text sub sections.
source	<xs:complexType name="FormattedTextType">   <xs:annotation>     <xs:documentation xml:lang="en">Collection of formatted text sub sections.</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="SubSection" type="FormattedTextSubSectionType" maxOccurs="99"/>   </xs:sequence> </xs:complexType>

element FormattedTextType/SubSection

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
type	FormattedTextSubSectionType
properties	isRef  0 minOcc  1 maxOcc  99 content  complex
children	Paragraph
source	<xs:element name="SubSection" type="FormattedTextSubSectionType" maxOccurs="99"/>

complexType FreeTextType

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
type	extension of xs:string
properties	base  xs:string
used by	complexTypes  ErrorType WarningType
annotation	documentation Textual information to provide descriptions and/or additional information.
source	<xs:complexType name="FreeTextType">   <xs:annotation>     <xs:documentation xml:lang="en">Textual information to provide descriptions and/or additional information.</xs:documentation>   </xs:annotation>   <xs:simpleContent>     <xs:extension base="xs:string"/>   </xs:simpleContent> </xs:complexType>

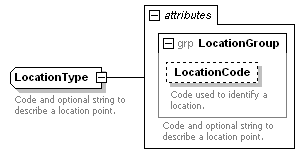

complexType LocationType

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
type	extension of xs:string
properties	base  xs:string

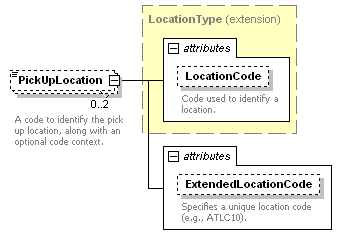

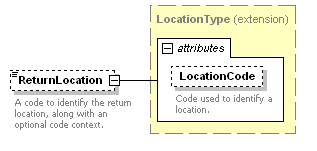

used by	elements  VehicleRentalCoreType/PickUpLocation VehicleRentalCoreType/ReturnLocation
attributes	Name   Type   Use   Default   Fixed   Annotation LocationCode StringLength1to16 optional         documentation Code used to identify a location.
annotation	documentation Code and optional string to describe a location point.
source	<xs:complexType name="LocationType">   <xs:annotation>     <xs:documentation xml:lang="en">Code and optional string to describe a location point.</xs:documentation>   </xs:annotation>   <xs:simpleContent>     <xs:extension base="xs:string">       <xs:attributeGroup ref="LocationGroup"/>     </xs:extension>   </xs:simpleContent> </xs:complexType>

complexType OffLocationServiceCoreType

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
used by	complexType  OffLocationServiceType
attributes	Name   Type   Use   Default   Fixed   Annotation Type OffLocationServiceID_Type required
annotation	documentation The OffLocationServiceCoreType complex type defines the core data that is used to describe an off-location service.
source	<xs:complexType name="OffLocationServiceCoreType">   <xs:annotation>     <xs:documentation xml:lang="en">The OffLocationServiceCoreType complex type defines the core data that is used to describe an off-location service.</xs:documentation>   </xs:annotation>   <xs:attribute name="Type" type="OffLocationServiceID_Type" use="required"/> </xs:complexType>

attribute OffLocationServiceCoreType/@Type

type	OffLocationServiceID_Type
properties	isRef  0 use  required
facets	enumeration  CustPickUp enumeration  VehDelivery enumeration  CustDropOff enumeration  VehCollection enumeration  Exchange
source	<xs:attribute name="Type" type="OffLocationServiceID_Type" use="required"/>

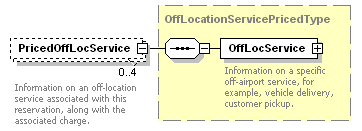

complexType OffLocationServicePricedType

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
children	OffLocService
used by	element  VehicleSegmentAdditionalInfoType/PricedOffLocService
annotation	documentation The OffLocationServicePricedType complex type describes the data that is used to describe a priced off-location service, that is, an off-location service and the corresponding charge.
source	<xs:complexType name="OffLocationServicePricedType">   <xs:annotation>     <xs:documentation xml:lang="en">The OffLocationServicePricedType complex type describes the data that is used to describe a priced off-location service, that is, an off-location service and the corresponding charge.</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="OffLocService" type="OffLocationServiceType">       <xs:annotation>         <xs:documentation xml:lang="en">Information on a specific off-airport service, for example, vehicle delivery, customer pickup.</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

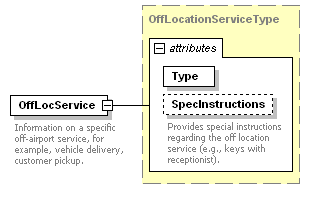

element OffLocationServicePricedType/OffLocService

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
type	OffLocationServiceType
properties	isRef  0 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation Type OffLocationServiceID_Type required         SpecInstructions StringLength1to128 optional         documentation Provides special instructions regarding the off location service (e.g., keys with receptionist).
annotation	documentation Information on a specific off-airport service, for example, vehicle delivery, customer pickup.
source	<xs:element name="OffLocService" type="OffLocationServiceType">   <xs:annotation>     <xs:documentation xml:lang="en">Information on a specific off-airport service, for example, vehicle delivery, customer pickup.</xs:documentation>   </xs:annotation> </xs:element>

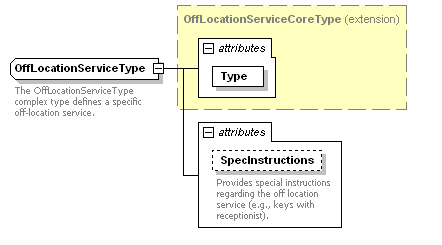

complexType OffLocationServiceType

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
type	extension of OffLocationServiceCoreType
properties	base  OffLocationServiceCoreType
used by	element  OffLocationServicePricedType/OffLocService
attributes	Name   Type   Use   Default   Fixed   Annotation Type OffLocationServiceID_Type required         SpecInstructions StringLength1to128 optional         documentation Provides special instructions regarding the off location service (e.g., keys with receptionist).
annotation	documentation The OffLocationServiceType complex type defines a specific off-location service.
source	<xs:complexType name="OffLocationServiceType">   <xs:annotation>     <xs:documentation xml:lang="en">The OffLocationServiceType complex type defines a specific off-location service.</xs:documentation>   </xs:annotation>   <xs:complexContent>     <xs:extension base="OffLocationServiceCoreType">       <xs:attribute name="SpecInstructions" type="StringLength1to128" use="optional">         <xs:annotation>           <xs:documentation xml:lang="en">Provides special instructions regarding the off location service (e.g., keys with receptionist).</xs:documentation>         </xs:annotation>       </xs:attribute>     </xs:extension>   </xs:complexContent> </xs:complexType>

attribute OffLocationServiceType/@SpecInstructions

type	StringLength1to128
properties	isRef  0 use  optional
facets	minLength  1 maxLength  128
annotation	documentation Provides special instructions regarding the off location service (e.g., keys with receptionist).
source	<xs:attribute name="SpecInstructions" type="StringLength1to128" use="optional">   <xs:annotation>     <xs:documentation xml:lang="en">Provides special instructions regarding the off location service (e.g., keys with receptionist).</xs:documentation>   </xs:annotation> </xs:attribute>

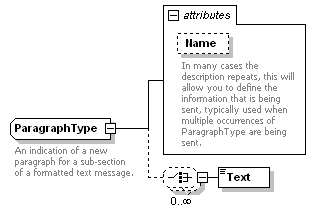

complexType ParagraphType

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
children	Text
used by	element  FormattedTextSubSectionType/Paragraph
attributes	Name   Type   Use   Default   Fixed   Annotation Name StringLength1to64 optional         documentation In many cases the description repeats, this will allow you to define the information that is being sent, typically used when multiple occurrences of ParagraphType are being sent.
annotation	documentation An indication of a new paragraph for a sub-section of a formatted text message.
source	<xs:complexType name="ParagraphType">   <xs:annotation>     <xs:documentation xml:lang="en">An indication of a new paragraph for a sub-section of a formatted text message.</xs:documentation>   </xs:annotation>   <xs:choice minOccurs="0" maxOccurs="unbounded">     <xs:element name="Text" type="FormattedTextTextType"/>   </xs:choice>   <xs:attribute name="Name" type="StringLength1to64" use="optional">     <xs:annotation>       <xs:documentation xml:lang="en">In many cases the description repeats, this will allow you to define the information that is being sent, typically used when multiple occurrences of ParagraphType are being sent.</xs:documentation>     </xs:annotation>   </xs:attribute> </xs:complexType>

attribute ParagraphType/@Name

type	StringLength1to64
properties	isRef  0 use  optional
facets	minLength  1 maxLength  64
annotation	documentation In many cases the description repeats, this will allow you to define the information that is being sent, typically used when multiple occurrences of ParagraphType are being sent.
source	<xs:attribute name="Name" type="StringLength1to64" use="optional">   <xs:annotation>     <xs:documentation xml:lang="en">In many cases the description repeats, this will allow you to define the information that is being sent, typically used when multiple occurrences of ParagraphType are being sent.</xs:documentation>   </xs:annotation> </xs:attribute>

element ParagraphType/Text

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
type	FormattedTextTextType
properties	isRef  0 content  complex
source	<xs:element name="Text" type="FormattedTextTextType"/>

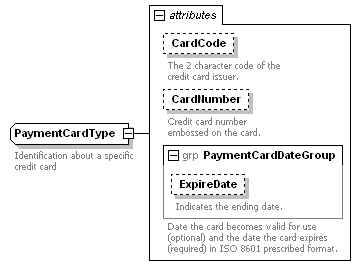

complexType PaymentCardType

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
used by	element  PaymentFormType/PaymentCard
attributes	Name   Type   Use   Default   Fixed   Annotation CardCode PaymentCardCodeType optional         documentation The 2 character code of the credit card issuer. CardNumber NumericStringLength1to19 optional         documentation Credit card number embossed on the card. ExpireDate MMYYDate optional         documentation Indicates the ending date.
annotation	documentation Identification about a specific credit card
source	<xs:complexType name="PaymentCardType">   <xs:annotation>     <xs:documentation xml:lang="en">Identification about a specific credit card</xs:documentation>   </xs:annotation>   <xs:attribute name="CardCode" type="PaymentCardCodeType" use="optional">     <xs:annotation>       <xs:documentation xml:lang="en">The 2 character code of the credit card issuer.</xs:documentation>     </xs:annotation>   </xs:attribute>   <xs:attribute name="CardNumber" type="NumericStringLength1to19" use="optional">     <xs:annotation>       <xs:documentation xml:lang="en">Credit card number embossed on the card.</xs:documentation>     </xs:annotation>   </xs:attribute>   <xs:attributeGroup ref="PaymentCardDateGroup">     <xs:annotation>       <xs:documentation xml:lang="en">Date the card becomes valid for use (optional) and the date the card expires (required) in ISO 8601 prescribed format.</xs:documentation>     </xs:annotation>   </xs:attributeGroup> </xs:complexType>

attribute PaymentCardType/@CardCode

type	PaymentCardCodeType
properties	isRef  0 use  optional
annotation	documentation The 2 character code of the credit card issuer.
source	<xs:attribute name="CardCode" type="PaymentCardCodeType" use="optional">   <xs:annotation>     <xs:documentation xml:lang="en">The 2 character code of the credit card issuer.</xs:documentation>   </xs:annotation> </xs:attribute>

attribute PaymentCardType/@CardNumber

type	NumericStringLength1to19
properties	isRef  0 use  optional
facets	pattern  [0-9]{1,19}
annotation	documentation Credit card number embossed on the card.
source	<xs:attribute name="CardNumber" type="NumericStringLength1to19" use="optional">   <xs:annotation>     <xs:documentation xml:lang="en">Credit card number embossed on the card.</xs:documentation>   </xs:annotation> </xs:attribute>

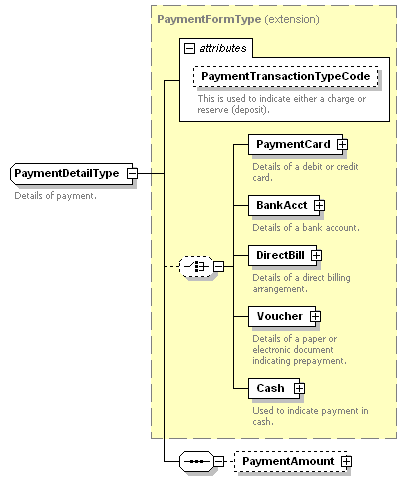

complexType PaymentDetailType

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
type	extension of PaymentFormType
properties	base  PaymentFormType
children	PaymentCard BankAcct DirectBill Voucher Cash PaymentAmount

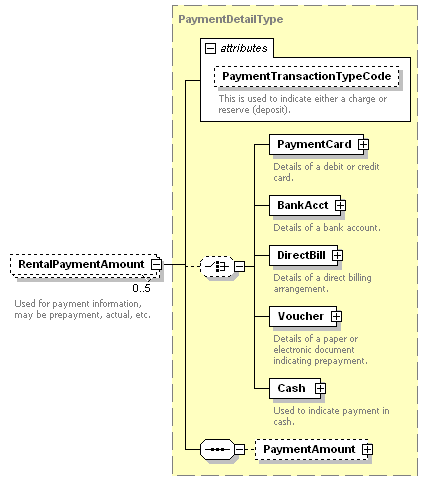

used by	element  VehicleSegmentAdditionalInfoType/RentalPaymentAmount
attributes	Name   Type   Use   Default   Fixed   Annotation PaymentTransactionTypeCode derived by: xs:NMTOKEN optional         documentation This is used to indicate either a charge or reserve (deposit).
annotation	documentation Details of payment.
source	<xs:complexType name="PaymentDetailType">   <xs:annotation>     <xs:documentation xml:lang="en">Details of payment.</xs:documentation>   </xs:annotation>   <xs:complexContent>     <xs:extension base="PaymentFormType">       <xs:sequence>         <xs:element name="PaymentAmount" minOccurs="0">           <xs:complexType>             <xs:attributeGroup ref="CurrencyAmountGroup"/>           </xs:complexType>         </xs:element>       </xs:sequence>     </xs:extension>   </xs:complexContent> </xs:complexType>

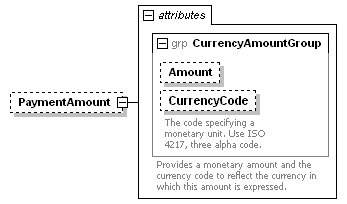

element PaymentDetailType/PaymentAmount

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation Amount Money optional         CurrencyCode AlphaLength3 optional         documentation The code specifying a monetary unit. Use ISO 4217, three alpha code.
source	<xs:element name="PaymentAmount" minOccurs="0">   <xs:complexType>     <xs:attributeGroup ref="CurrencyAmountGroup"/>   </xs:complexType> </xs:element>

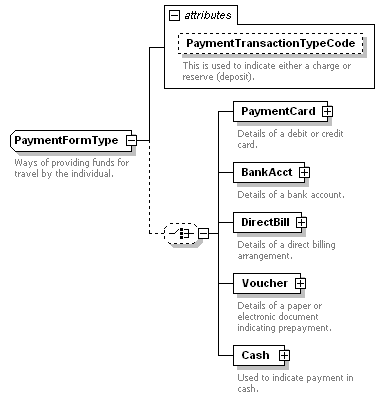

complexType PaymentFormType

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
children	PaymentCard BankAcct DirectBill Voucher Cash
used by	complexType  PaymentDetailType
attributes	Name   Type   Use   Default   Fixed   Annotation PaymentTransactionTypeCode derived by: xs:NMTOKEN optional         documentation This is used to indicate either a charge or reserve (deposit).
annotation	documentation Ways of providing funds for travel by the individual.
source	<xs:complexType name="PaymentFormType">   <xs:annotation>     <xs:documentation xml:lang="en">Ways of providing funds for travel by the individual.</xs:documentation>   </xs:annotation>   <xs:choice minOccurs="0">     <xs:element name="PaymentCard" type="PaymentCardType">       <xs:annotation>         <xs:documentation xml:lang="en">Details of a debit or credit card.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="BankAcct" type="BankAcctType">       <xs:annotation>         <xs:documentation xml:lang="en">Details of a bank account. </xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="DirectBill" type="DirectBillType">       <xs:annotation>         <xs:documentation xml:lang="en">Details of a direct billing arrangement.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="Voucher">       <xs:annotation>         <xs:documentation xml:lang="en">Details of a paper or electronic document indicating prepayment.</xs:documentation>       </xs:annotation>       <xs:complexType>         <xs:attributeGroup ref="VoucherGroup"/>       </xs:complexType>     </xs:element>     <xs:element name="Cash">       <xs:annotation>         <xs:documentation xml:lang="en">Used to indicate payment in cash.</xs:documentation>       </xs:annotation>       <xs:complexType>         <xs:attribute name="CashIndicator" type="xs:boolean" use="optional" default="true">           <xs:annotation>             <xs:documentation xml:lang="en">If true, this indicates cash is being used.</xs:documentation>           </xs:annotation>         </xs:attribute>       </xs:complexType>     </xs:element>   </xs:choice>   <xs:attribute name="PaymentTransactionTypeCode" use="optional">     <xs:annotation>       <xs:documentation xml:lang="en">This is used to indicate either a charge or reserve (deposit).</xs:documentation>     </xs:annotation>     <xs:simpleType>       <xs:restriction base="xs:NMTOKEN">         <xs:enumeration value="charge">           <xs:annotation>             <xs:documentation xml:lang="en">This indicates that an actual payment has been made.</xs:documentation>           </xs:annotation>         </xs:enumeration>         <xs:enumeration value="reserve">           <xs:annotation>             <xs:documentation xml:lang="en">This indicates that a hold for the indicated amount has been placed on a credit card or that a cash amount has been taken from the customer to guarantee final payment.</xs:documentation>           </xs:annotation>         </xs:enumeration>       </xs:restriction>     </xs:simpleType>   </xs:attribute> </xs:complexType>

attribute PaymentFormType/@PaymentTransactionTypeCode

type	restriction of xs:NMTOKEN
properties	isRef  0 use  optional
facets	enumeration  charge enumeration  reserve
annotation	documentation This is used to indicate either a charge or reserve (deposit).
source	<xs:attribute name="PaymentTransactionTypeCode" use="optional">   <xs:annotation>     <xs:documentation xml:lang="en">This is used to indicate either a charge or reserve (deposit).</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:NMTOKEN">       <xs:enumeration value="charge">         <xs:annotation>           <xs:documentation xml:lang="en">This indicates that an actual payment has been made.</xs:documentation>         </xs:annotation>       </xs:enumeration>       <xs:enumeration value="reserve">         <xs:annotation>           <xs:documentation xml:lang="en">This indicates that a hold for the indicated amount has been placed on a credit card or that a cash amount has been taken from the customer to guarantee final payment.</xs:documentation>         </xs:annotation>       </xs:enumeration>     </xs:restriction>   </xs:simpleType> </xs:attribute>

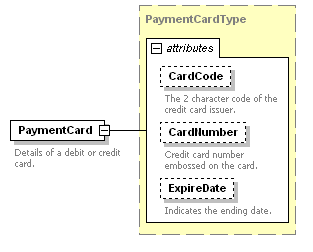

element PaymentFormType/PaymentCard

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
type	PaymentCardType
properties	isRef  0 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation CardCode PaymentCardCodeType optional         documentation The 2 character code of the credit card issuer. CardNumber NumericStringLength1to19 optional         documentation Credit card number embossed on the card. ExpireDate MMYYDate optional         documentation Indicates the ending date.
annotation	documentation Details of a debit or credit card.
source	<xs:element name="PaymentCard" type="PaymentCardType">   <xs:annotation>     <xs:documentation xml:lang="en">Details of a debit or credit card.</xs:documentation>   </xs:annotation> </xs:element>

element PaymentFormType/BankAcct

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
type	BankAcctType
properties	isRef  0 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation ChecksAcceptedInd xs:boolean optional         documentation If true, checks are accepted. If false, checks are not accepted.
annotation	documentation Details of a bank account.
source	<xs:element name="BankAcct" type="BankAcctType">   <xs:annotation>     <xs:documentation xml:lang="en">Details of a bank account. </xs:documentation>   </xs:annotation> </xs:element>

element PaymentFormType/DirectBill

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
type	DirectBillType
properties	isRef  0 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation DirectBill_ID StringLength1to32 optional         documentation Identifier for the organization to be billed directly for travel services. BillingNumber StringLength0to64 optional         documentation The number assigned by the subscriber for billing reconciliation of a corporate account.
annotation	documentation Details of a direct billing arrangement.
source	<xs:element name="DirectBill" type="DirectBillType">   <xs:annotation>     <xs:documentation xml:lang="en">Details of a direct billing arrangement.</xs:documentation>   </xs:annotation> </xs:element>

element PaymentFormType/Voucher

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
properties	isRef  0 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation SeriesCode StringLength1to32          documentation Identification of a series of coupons or vouchers identified by serial number(s).
annotation	documentation Details of a paper or electronic document indicating prepayment.
source	<xs:element name="Voucher">   <xs:annotation>     <xs:documentation xml:lang="en">Details of a paper or electronic document indicating prepayment.</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attributeGroup ref="VoucherGroup"/>   </xs:complexType> </xs:element>

element PaymentFormType/Cash

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
properties	isRef  0 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation CashIndicator xs:boolean optional   true      documentation If true, this indicates cash is being used.
annotation	documentation Used to indicate payment in cash.
source	<xs:element name="Cash">   <xs:annotation>     <xs:documentation xml:lang="en">Used to indicate payment in cash.</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="CashIndicator" type="xs:boolean" use="optional" default="true">       <xs:annotation>         <xs:documentation xml:lang="en">If true, this indicates cash is being used.</xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

attribute PaymentFormType/Cash/@CashIndicator

type	xs:boolean
properties	isRef  0 default  true use  optional
annotation	documentation If true, this indicates cash is being used.
source	<xs:attribute name="CashIndicator" type="xs:boolean" use="optional" default="true">   <xs:annotation>     <xs:documentation xml:lang="en">If true, this indicates cash is being used.</xs:documentation>   </xs:annotation> </xs:attribute>

complexType PersonNameType

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
children	GivenName Surname
used by	element  CustomerType/PersonName
annotation	documentation This provides name information for a person.
source	<xs:complexType name="PersonNameType">   <xs:annotation>     <xs:documentation xml:lang="en">This provides name information for a person.</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="GivenName" type="StringLength1to64" minOccurs="0" maxOccurs="5">       <xs:annotation>         <xs:documentation xml:lang="en">Given name, first name or names</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="Surname" type="StringLength1to64">       <xs:annotation>         <xs:documentation xml:lang="en">Family name, last name.</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element PersonNameType/GivenName

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
type	StringLength1to64
properties	isRef  0 minOcc  0 maxOcc  5 content  simple
facets	minLength  1 maxLength  64
annotation	documentation Given name, first name or names
source	<xs:element name="GivenName" type="StringLength1to64" minOccurs="0" maxOccurs="5">   <xs:annotation>     <xs:documentation xml:lang="en">Given name, first name or names</xs:documentation>   </xs:annotation> </xs:element>

element PersonNameType/Surname

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
type	StringLength1to64
properties	isRef  0 content  simple
facets	minLength  1 maxLength  64
annotation	documentation Family name, last name.
source	<xs:element name="Surname" type="StringLength1to64">   <xs:annotation>     <xs:documentation xml:lang="en">Family name, last name.</xs:documentation>   </xs:annotation> </xs:element>

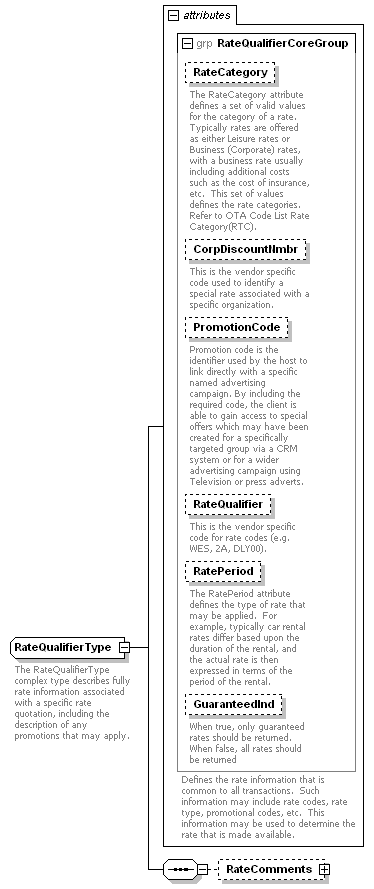

complexType RateQualifierType

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
children	RateComments
used by	element  VehicleRentalRateType/RateQualifier
attributes	Name   Type   Use   Default   Fixed   Annotation RateCategory OTA_CodeType optional         documentation The RateCategory attribute defines a set of valid values for the category of a rate.  Typically rates are offered as either Leisure rates or Business (Corporate) rates, with a business rate usually including additional costs such as the cost of insurance, etc.  This set of values defines the rate categories. Refer to OTA Code List Rate Category(RTC). CorpDiscountNmbr AlphaNumericStringLength1to8 optional         documentation This is the vendor specific code used to identify a special rate associated with a specific organization. PromotionCode StringLength1to32 optional         documentation Promotion code is the identifier used by the host to link directly with a specific named advertising campaign. By including the required code, the client is able to gain access to special offers which may have been created for a specifically targeted group via a CRM system or for a wider advertising campaign using Television or press adverts. RateQualifier StringLength1to32 optional         documentation This is the vendor specific code for rate codes (e.g. WES, 2A, DLY00). RatePeriod derived by: RatePeriodSimpleType optional         documentation The RatePeriod attribute defines the type of rate that may be applied.  For example, typically car rental rates differ based upon the duration of the rental, and the actual rate is then expressed in terms of the period of the rental. GuaranteedInd xs:boolean optional         documentation When true, only guaranteed rates should be returned.  When false, all rates should be returned
annotation	documentation The RateQualifierType complex type describes fully rate information associated with a specific rate quotation, including the description of any promotions that may apply.
source	<xs:complexType name="RateQualifierType">   <xs:annotation>     <xs:documentation xml:lang="en">The RateQualifierType complex type describes fully rate information associated with a specific rate quotation, including the description of any promotions that may apply.</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="RateComments" minOccurs="0">       <xs:complexType>         <xs:sequence>           <xs:element name="RateComment" maxOccurs="15">             <xs:annotation>               <xs:documentation xml:lang="en">This may be used to provide any additional information about rates (e.g., must return by Monday at 8 AM). </xs:documentation>             </xs:annotation>             <xs:complexType>               <xs:simpleContent>                 <xs:extension base="FormattedTextTextType">                   <xs:attribute name="Name" type="StringLength1to64" use="optional">                     <xs:annotation>                       <xs:documentation xml:lang="en">Defines the type of rate comments (e.g., textual rule, marketing information).</xs:documentation>                     </xs:annotation>                   </xs:attribute>                 </xs:extension>               </xs:simpleContent>             </xs:complexType>           </xs:element>         </xs:sequence>       </xs:complexType>     </xs:element>   </xs:sequence>   <xs:attributeGroup ref="RateQualifierCoreGroup"/> </xs:complexType>

element RateQualifierType/RateComments

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	RateComment
source	<xs:element name="RateComments" minOccurs="0">   <xs:complexType>     <xs:sequence>       <xs:element name="RateComment" maxOccurs="15">         <xs:annotation>           <xs:documentation xml:lang="en">This may be used to provide any additional information about rates (e.g., must return by Monday at 8 AM). </xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:simpleContent>             <xs:extension base="FormattedTextTextType">               <xs:attribute name="Name" type="StringLength1to64" use="optional">                 <xs:annotation>                   <xs:documentation xml:lang="en">Defines the type of rate comments (e.g., textual rule, marketing information).</xs:documentation>                 </xs:annotation>               </xs:attribute>             </xs:extension>           </xs:simpleContent>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

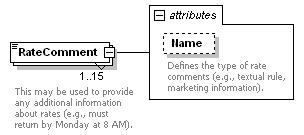

element RateQualifierType/RateComments/RateComment

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
type	extension of FormattedTextTextType
properties	isRef  0 minOcc  1 maxOcc  15 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation Name StringLength1to64 optional         documentation Defines the type of rate comments (e.g., textual rule, marketing information).
annotation	documentation This may be used to provide any additional information about rates (e.g., must return by Monday at 8 AM).
source	<xs:element name="RateComment" maxOccurs="15">   <xs:annotation>     <xs:documentation xml:lang="en">This may be used to provide any additional information about rates (e.g., must return by Monday at 8 AM). </xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:simpleContent>       <xs:extension base="FormattedTextTextType">         <xs:attribute name="Name" type="StringLength1to64" use="optional">           <xs:annotation>             <xs:documentation xml:lang="en">Defines the type of rate comments (e.g., textual rule, marketing information).</xs:documentation>           </xs:annotation>         </xs:attribute>       </xs:extension>     </xs:simpleContent>   </xs:complexType> </xs:element>

attribute RateQualifierType/RateComments/RateComment/@Name

type	StringLength1to64
properties	isRef  0 use  optional
facets	minLength  1 maxLength  64
annotation	documentation Defines the type of rate comments (e.g., textual rule, marketing information).
source	<xs:attribute name="Name" type="StringLength1to64" use="optional">   <xs:annotation>     <xs:documentation xml:lang="en">Defines the type of rate comments (e.g., textual rule, marketing information).</xs:documentation>   </xs:annotation> </xs:attribute>

complexType SuccessType

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
used by	element  OTA_VehResRS/Success
annotation	documentation Standard way to indicate successful processing of an OTA message. Returning an empty element of this type indicates success.
source	<xs:complexType name="SuccessType">   <xs:annotation>     <xs:documentation xml:lang="en">Standard way to indicate successful processing of an OTA message. Returning an empty element of this type indicates success.</xs:documentation>   </xs:annotation> </xs:complexType>

complexType TPA_ExtensionsType

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
used by	element  TPA_Extensions
annotation	documentation Allows extensions to be added to the OTA specification per trading partner agreement.
source	<xs:complexType name="TPA_ExtensionsType">   <xs:annotation>     <xs:documentation xml:lang="en">Allows extensions to be added to the OTA specification per trading partner agreement.</xs:documentation>   </xs:annotation> </xs:complexType>

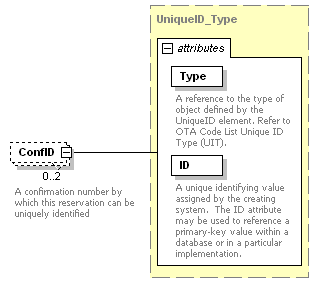

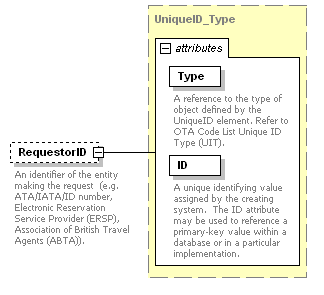

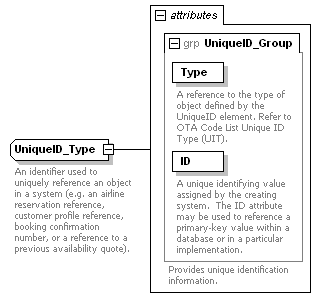

complexType UniqueID_Type

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
used by	elements  VehicleSegmentCoreType/ConfID CustomerPrimaryAdditionalType/Primary/CustomerID VehicleResRSAdditionalInfoType/TPA_Extensions/RequestorID VehicleResRSAdditionalInfoType/ReservationID
attributes	Name   Type   Use   Default   Fixed   Annotation Type OTA_CodeType required         documentation A reference to the type of object defined by the UniqueID element. Refer to OTA Code List Unique ID Type (UIT). ID StringLength1to32 required         documentation A unique identifying value assigned by the creating system.  The ID attribute may be used to reference a primary-key value within a database or in a particular implementation.
annotation	documentation An identifier used to uniquely reference an object in a system (e.g. an airline reservation reference, customer profile reference, booking confirmation number, or a reference to a previous availability quote).
source	<xs:complexType name="UniqueID_Type">   <xs:annotation>     <xs:documentation xml:lang="en">An identifier used to uniquely reference an object in a system (e.g. an airline reservation reference, customer profile reference, booking confirmation number, or a reference to a previous availability quote). </xs:documentation>   </xs:annotation>   <xs:attributeGroup ref="UniqueID_Group"/> </xs:complexType>

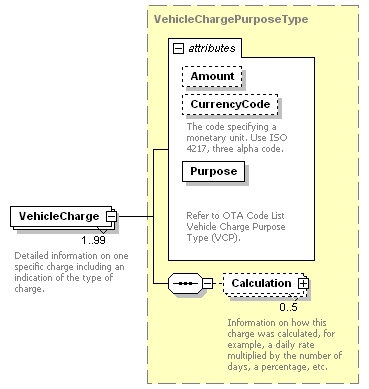

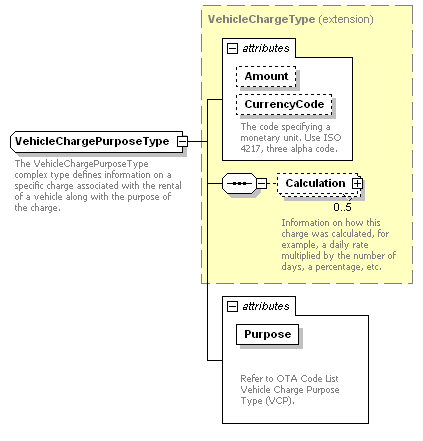

complexType VehicleChargePurposeType

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
type	extension of VehicleChargeType
properties	base  VehicleChargeType
children	Calculation
used by	element  VehicleRentalRateType/VehicleCharges/VehicleCharge
attributes	Name   Type   Use   Default   Fixed   Annotation Amount Money optional         CurrencyCode AlphaLength3 optional         documentation The code specifying a monetary unit. Use ISO 4217, three alpha code. Purpose OTA_CodeType required         documentation Refer to OTA Code List Vehicle Charge Purpose Type (VCP).
annotation	documentation The VehicleChargePurposeType complex type defines information on a specific charge associated with the rental of a vehicle along with the purpose of the charge.
source	<xs:complexType name="VehicleChargePurposeType">   <xs:annotation>     <xs:documentation xml:lang="en">The VehicleChargePurposeType complex type defines information on a specific charge associated with the rental of a vehicle along with the purpose of the charge.</xs:documentation>   </xs:annotation>   <xs:complexContent>     <xs:extension base="VehicleChargeType">       <xs:attribute name="Purpose" type="OTA_CodeType" use="required">         <xs:annotation>           <xs:documentation xml:lang="en"> Refer to OTA Code List Vehicle Charge Purpose Type (VCP). </xs:documentation>         </xs:annotation>       </xs:attribute>     </xs:extension>   </xs:complexContent> </xs:complexType>

attribute VehicleChargePurposeType/@Purpose

type	OTA_CodeType
properties	isRef  0 use  required
facets	pattern  [0-9A-Z]{1,3}(\.[A-Z]{3}(\.X){0,1}){0,1}
annotation	documentation Refer to OTA Code List Vehicle Charge Purpose Type (VCP).
source	<xs:attribute name="Purpose" type="OTA_CodeType" use="required">   <xs:annotation>     <xs:documentation xml:lang="en"> Refer to OTA Code List Vehicle Charge Purpose Type (VCP). </xs:documentation>   </xs:annotation> </xs:attribute>

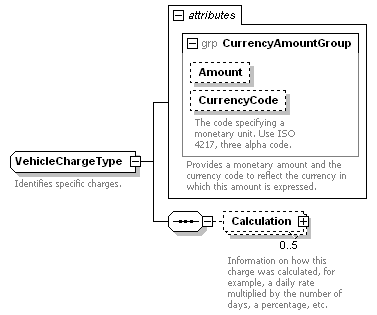

complexType VehicleChargeType

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
children	Calculation
used by	element  VehicleEquipmentPricedType/Charge complexType  VehicleChargePurposeType
attributes	Name   Type   Use   Default   Fixed   Annotation Amount Money optional         CurrencyCode AlphaLength3 optional         documentation The code specifying a monetary unit. Use ISO 4217, three alpha code.
annotation	documentation Identifies specific charges.
source	<xs:complexType name="VehicleChargeType">   <xs:annotation>     <xs:documentation xml:lang="en">Identifies specific charges.  </xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="Calculation" minOccurs="0" maxOccurs="5">       <xs:annotation>         <xs:documentation xml:lang="en">Information on how this charge was calculated, for example, a daily rate multiplied by the number of days, a percentage, etc.</xs:documentation>       </xs:annotation>       <xs:complexType>         <xs:attribute name="UnitCharge" type="Money" use="optional">           <xs:annotation>             <xs:documentation xml:lang="en">This is used in conjunction with UnitName to specify the charge per unit as defined by UnitName (e.g., if UnitCharge="100" and UnitName="day" the result is 100 dollars per day).</xs:documentation>           </xs:annotation>         </xs:attribute>         <xs:attribute name="UnitName" type="VehicleUnitNameType" use="optional">           <xs:annotation>             <xs:documentation xml:lang="en">The UnitName attribute provides the unit on which an item charge may be based when renting a vehicle (e.g., there may be a charge which is based upon the number of days, another charge that is based upon the number of miles, a charge that is based upon the number of gallons).  </xs:documentation>           </xs:annotation>         </xs:attribute>       </xs:complexType>     </xs:element>   </xs:sequence>   <xs:attributeGroup ref="CurrencyAmountGroup"/> </xs:complexType>

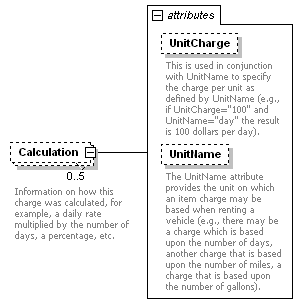

element VehicleChargeType/Calculation

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
properties	isRef  0 minOcc  0 maxOcc  5 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation UnitCharge Money optional         documentation This is used in conjunction with UnitName to specify the charge per unit as defined by UnitName (e.g., if UnitCharge="100" and UnitName="day" the result is 100 dollars per day). UnitName VehicleUnitNameType optional         documentation The UnitName attribute provides the unit on which an item charge may be based when renting a vehicle (e.g., there may be a charge which is based upon the number of days, another charge that is based upon the number of miles, a charge that is based upon the number of gallons).
annotation	documentation Information on how this charge was calculated, for example, a daily rate multiplied by the number of days, a percentage, etc.
source	<xs:element name="Calculation" minOccurs="0" maxOccurs="5">   <xs:annotation>     <xs:documentation xml:lang="en">Information on how this charge was calculated, for example, a daily rate multiplied by the number of days, a percentage, etc.</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="UnitCharge" type="Money" use="optional">       <xs:annotation>         <xs:documentation xml:lang="en">This is used in conjunction with UnitName to specify the charge per unit as defined by UnitName (e.g., if UnitCharge="100" and UnitName="day" the result is 100 dollars per day).</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="UnitName" type="VehicleUnitNameType" use="optional">       <xs:annotation>         <xs:documentation xml:lang="en">The UnitName attribute provides the unit on which an item charge may be based when renting a vehicle (e.g., there may be a charge which is based upon the number of days, another charge that is based upon the number of miles, a charge that is based upon the number of gallons).  </xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

attribute VehicleChargeType/Calculation/@UnitCharge

type	Money
properties	isRef  0 use  optional
facets	fractionDigits  3
annotation	documentation This is used in conjunction with UnitName to specify the charge per unit as defined by UnitName (e.g., if UnitCharge="100" and UnitName="day" the result is 100 dollars per day).
source	<xs:attribute name="UnitCharge" type="Money" use="optional">   <xs:annotation>     <xs:documentation xml:lang="en">This is used in conjunction with UnitName to specify the charge per unit as defined by UnitName (e.g., if UnitCharge="100" and UnitName="day" the result is 100 dollars per day).</xs:documentation>   </xs:annotation> </xs:attribute>

attribute VehicleChargeType/Calculation/@UnitName

type	VehicleUnitNameType
properties	isRef  0 use  optional
annotation	documentation The UnitName attribute provides the unit on which an item charge may be based when renting a vehicle (e.g., there may be a charge which is based upon the number of days, another charge that is based upon the number of miles, a charge that is based upon the number of gallons).
source	<xs:attribute name="UnitName" type="VehicleUnitNameType" use="optional">   <xs:annotation>     <xs:documentation xml:lang="en">The UnitName attribute provides the unit on which an item charge may be based when renting a vehicle (e.g., there may be a charge which is based upon the number of days, another charge that is based upon the number of miles, a charge that is based upon the number of gallons).  </xs:documentation>   </xs:annotation> </xs:attribute>

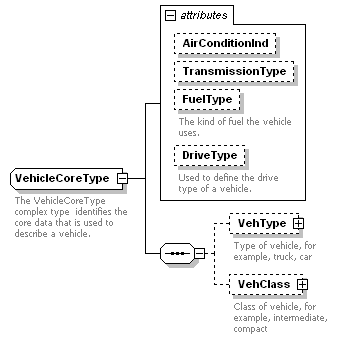

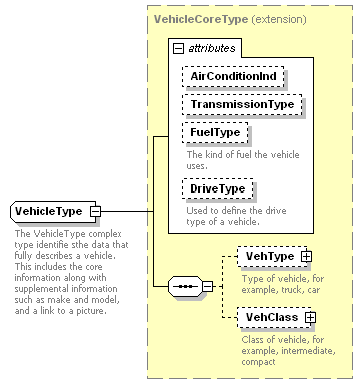

complexType VehicleCoreType

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
children	VehType VehClass
used by	complexType  VehicleType
attributes	Name   Type   Use   Default   Fixed   Annotation AirConditionInd xs:boolean optional         TransmissionType VehicleTransmissionType optional         FuelType derived by: xs:NMTOKEN optional         documentation The kind of fuel the vehicle uses. DriveType derived by: xs:NMTOKEN optional         documentation Used to define the drive type of a vehicle.
annotation	documentation The VehicleCoreType complex type  identifies the core data that is used to describe a vehicle.
source	<xs:complexType name="VehicleCoreType">   <xs:annotation>     <xs:documentation xml:lang="en">The VehicleCoreType complex type  identifies the core data that is used to describe a vehicle.</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="VehType" minOccurs="0">       <xs:annotation>         <xs:documentation xml:lang="en">Type of vehicle, for example, truck, car</xs:documentation>       </xs:annotation>       <xs:complexType>         <xs:attributeGroup ref="VehicleTypeGroup"/>       </xs:complexType>     </xs:element>     <xs:element name="VehClass" minOccurs="0">       <xs:annotation>         <xs:documentation xml:lang="en">Class of vehicle, for example, intermediate, compact</xs:documentation>       </xs:annotation>       <xs:complexType>         <xs:attributeGroup ref="VehicleClassGroup"/>       </xs:complexType>     </xs:element>   </xs:sequence>   <xs:attribute name="AirConditionInd" type="xs:boolean" use="optional"/>   <xs:attribute name="TransmissionType" type="VehicleTransmissionType" use="optional"/>   <xs:attribute name="FuelType" use="optional">     <xs:annotation>       <xs:documentation xml:lang="en">The kind of fuel the vehicle uses.</xs:documentation>     </xs:annotation>     <xs:simpleType>       <xs:restriction base="xs:NMTOKEN">         <xs:enumeration value="Unspecified">           <xs:annotation>             <xs:documentation xml:lang="en">The type of fuel is not known.</xs:documentation>           </xs:annotation>         </xs:enumeration>         <xs:enumeration value="Diesel">           <xs:annotation>             <xs:documentation xml:lang="en">The type of fuel is diesel.</xs:documentation>           </xs:annotation>         </xs:enumeration>         <xs:enumeration value="Hybrid">           <xs:annotation>             <xs:documentation xml:lang="en">The type of fuel is hybrid.</xs:documentation>           </xs:annotation>         </xs:enumeration>         <xs:enumeration value="Electric">           <xs:annotation>             <xs:documentation xml:lang="en">The type of fuel is electric.</xs:documentation>           </xs:annotation>         </xs:enumeration>         <xs:enumeration value="LPG_CompressedGas">           <xs:annotation>             <xs:documentation xml:lang="en">The type of fuel is LPG/Compressed gas.</xs:documentation>           </xs:annotation>         </xs:enumeration>         <xs:enumeration value="Hydrogen">           <xs:annotation>             <xs:documentation xml:lang="en">The type of fuel is hydrogen.</xs:documentation>           </xs:annotation>         </xs:enumeration>         <xs:enumeration value="MultiFuel">           <xs:annotation>             <xs:documentation xml:lang="en">The type of fuel is multi.</xs:documentation>           </xs:annotation>         </xs:enumeration>         <xs:enumeration value="Petrol">           <xs:annotation>             <xs:documentation xml:lang="en">The type of fuel is petrol.</xs:documentation>           </xs:annotation>         </xs:enumeration>         <xs:enumeration value="Ethanol">           <xs:annotation>             <xs:documentation xml:lang="en">The type of fuel is ethanol.</xs:documentation>           </xs:annotation>         </xs:enumeration>       </xs:restriction>     </xs:simpleType>   </xs:attribute>   <xs:attribute name="DriveType" use="optional">     <xs:annotation>       <xs:documentation xml:lang="en">Used to define the drive type of a vehicle.</xs:documentation>     </xs:annotation>     <xs:simpleType>       <xs:restriction base="xs:NMTOKEN">         <xs:enumeration value="AWD">           <xs:annotation>             <xs:documentation xml:lang="en">Defines all wheel drive.</xs:documentation>           </xs:annotation>         </xs:enumeration>         <xs:enumeration value="4WD">           <xs:annotation>             <xs:documentation xml:lang="en">Defines four wheel drive.</xs:documentation>           </xs:annotation>         </xs:enumeration>         <xs:enumeration value="Unspecified">           <xs:annotation>             <xs:documentation xml:lang="en">The drive type of the vehicle is unknown.</xs:documentation>           </xs:annotation>         </xs:enumeration>       </xs:restriction>     </xs:simpleType>   </xs:attribute> </xs:complexType>

attribute VehicleCoreType/@AirConditionInd

type	xs:boolean
properties	isRef  0 use  optional
source	<xs:attribute name="AirConditionInd" type="xs:boolean" use="optional"/>

attribute VehicleCoreType/@TransmissionType

type	VehicleTransmissionType
properties	isRef  0 use  optional
facets	enumeration  Automatic enumeration  Manual
source	<xs:attribute name="TransmissionType" type="VehicleTransmissionType" use="optional"/>

attribute VehicleCoreType/@FuelType

type	restriction of xs:NMTOKEN
properties	isRef  0 use  optional
facets	enumeration  Unspecified enumeration  Diesel enumeration  Hybrid enumeration  Electric enumeration  LPG_CompressedGas enumeration  Hydrogen enumeration  MultiFuel enumeration  Petrol enumeration  Ethanol
annotation	documentation The kind of fuel the vehicle uses.
source	<xs:attribute name="FuelType" use="optional">   <xs:annotation>     <xs:documentation xml:lang="en">The kind of fuel the vehicle uses.</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:NMTOKEN">       <xs:enumeration value="Unspecified">         <xs:annotation>           <xs:documentation xml:lang="en">The type of fuel is not known.</xs:documentation>         </xs:annotation>       </xs:enumeration>       <xs:enumeration value="Diesel">         <xs:annotation>           <xs:documentation xml:lang="en">The type of fuel is diesel.</xs:documentation>         </xs:annotation>       </xs:enumeration>       <xs:enumeration value="Hybrid">         <xs:annotation>           <xs:documentation xml:lang="en">The type of fuel is hybrid.</xs:documentation>         </xs:annotation>       </xs:enumeration>       <xs:enumeration value="Electric">         <xs:annotation>           <xs:documentation xml:lang="en">The type of fuel is electric.</xs:documentation>         </xs:annotation>       </xs:enumeration>       <xs:enumeration value="LPG_CompressedGas">         <xs:annotation>           <xs:documentation xml:lang="en">The type of fuel is LPG/Compressed gas.</xs:documentation>         </xs:annotation>       </xs:enumeration>       <xs:enumeration value="Hydrogen">         <xs:annotation>           <xs:documentation xml:lang="en">The type of fuel is hydrogen.</xs:documentation>         </xs:annotation>       </xs:enumeration>       <xs:enumeration value="MultiFuel">         <xs:annotation>           <xs:documentation xml:lang="en">The type of fuel is multi.</xs:documentation>         </xs:annotation>       </xs:enumeration>       <xs:enumeration value="Petrol">         <xs:annotation>           <xs:documentation xml:lang="en">The type of fuel is petrol.</xs:documentation>         </xs:annotation>       </xs:enumeration>       <xs:enumeration value="Ethanol">         <xs:annotation>           <xs:documentation xml:lang="en">The type of fuel is ethanol.</xs:documentation>         </xs:annotation>       </xs:enumeration>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute VehicleCoreType/@DriveType

type	restriction of xs:NMTOKEN
properties	isRef  0 use  optional
facets	enumeration  AWD enumeration  4WD enumeration  Unspecified
annotation	documentation Used to define the drive type of a vehicle.
source	<xs:attribute name="DriveType" use="optional">   <xs:annotation>     <xs:documentation xml:lang="en">Used to define the drive type of a vehicle.</xs:documentation>   </xs:annotation>   <xs:simpleType>     <xs:restriction base="xs:NMTOKEN">       <xs:enumeration value="AWD">         <xs:annotation>           <xs:documentation xml:lang="en">Defines all wheel drive.</xs:documentation>         </xs:annotation>       </xs:enumeration>       <xs:enumeration value="4WD">         <xs:annotation>           <xs:documentation xml:lang="en">Defines four wheel drive.</xs:documentation>         </xs:annotation>       </xs:enumeration>       <xs:enumeration value="Unspecified">         <xs:annotation>           <xs:documentation xml:lang="en">The drive type of the vehicle is unknown.</xs:documentation>         </xs:annotation>       </xs:enumeration>     </xs:restriction>   </xs:simpleType> </xs:attribute>

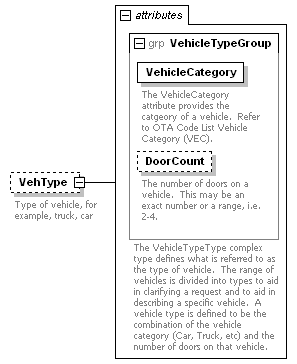

element VehicleCoreType/VehType

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation VehicleCategory OTA_CodeType required         documentation The VehicleCategory attribute provides the catgeory of a vehicle.  Refer to OTA Code List Vehicle Category (VEC). DoorCount StringLength1to8 optional         documentation The number of doors on a vehicle.  This may be an exact number or a range, i.e. 2-4.
annotation	documentation Type of vehicle, for example, truck, car
source	<xs:element name="VehType" minOccurs="0">   <xs:annotation>     <xs:documentation xml:lang="en">Type of vehicle, for example, truck, car</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attributeGroup ref="VehicleTypeGroup"/>   </xs:complexType> </xs:element>

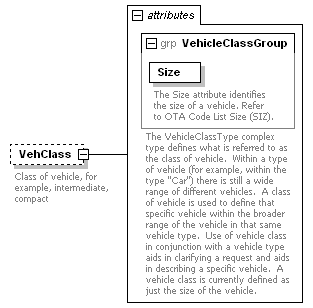

element VehicleCoreType/VehClass

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation Size OTA_CodeType required         documentation The Size attribute identifies the size of a vehicle. Refer to OTA Code List Size (SIZ).
annotation	documentation Class of vehicle, for example, intermediate, compact
source	<xs:element name="VehClass" minOccurs="0">   <xs:annotation>     <xs:documentation xml:lang="en">Class of vehicle, for example, intermediate, compact</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attributeGroup ref="VehicleClassGroup"/>   </xs:complexType> </xs:element>

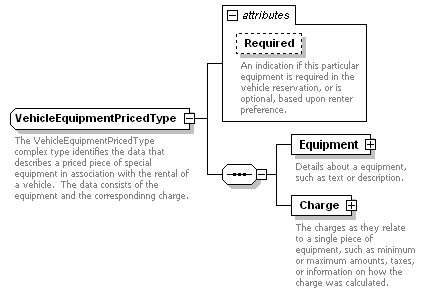

complexType VehicleEquipmentPricedType

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
children	Equipment Charge
used by	element  VehicleSegmentCoreType/PricedEquips/PricedEquip
attributes	Name   Type   Use   Default   Fixed   Annotation Required xs:boolean optional   false      documentation An indication if this particular equipment is required in the vehicle reservation, or is optional, based upon renter preference.
annotation	documentation The VehicleEquipmentPricedType complex type identifies the data that describes a priced piece of special equipment in association with the rental of a vehicle.  The data consists of the equipment and the correspondinng charge.
source	<xs:complexType name="VehicleEquipmentPricedType">   <xs:annotation>     <xs:documentation xml:lang="en">The VehicleEquipmentPricedType complex type identifies the data that describes a priced piece of special equipment in association with the rental of a vehicle.  The data consists of the equipment and the correspondinng charge.</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="Equipment" type="VehicleEquipmentType">       <xs:annotation>         <xs:documentation xml:lang="en">Details about a equipment, such as text or description.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="Charge" type="VehicleChargeType">       <xs:annotation>         <xs:documentation xml:lang="en">The charges as they relate to a single piece of equipment, such as minimum or maximum amounts, taxes, or information on how the charge was calculated.</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence>   <xs:attribute name="Required" type="xs:boolean" use="optional" default="false">     <xs:annotation>       <xs:documentation xml:lang="en">An indication if this particular equipment is required in the vehicle reservation, or is optional, based upon renter preference.</xs:documentation>     </xs:annotation>   </xs:attribute> </xs:complexType>

attribute VehicleEquipmentPricedType/@Required

type	xs:boolean
properties	isRef  0 default  false use  optional
annotation	documentation An indication if this particular equipment is required in the vehicle reservation, or is optional, based upon renter preference.
source	<xs:attribute name="Required" type="xs:boolean" use="optional" default="false">   <xs:annotation>     <xs:documentation xml:lang="en">An indication if this particular equipment is required in the vehicle reservation, or is optional, based upon renter preference.</xs:documentation>   </xs:annotation> </xs:attribute>

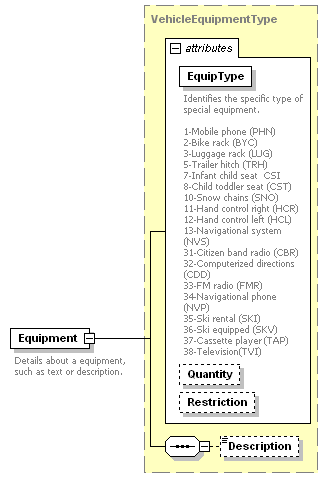

element VehicleEquipmentPricedType/Equipment

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
type	VehicleEquipmentType
properties	isRef  0 content  complex
children	Description
attributes	Name   Type   Use   Default   Fixed   Annotation EquipType OTA_CodeType required         documentation Identifies the specific type of special equipment. 1-Mobile phone (PHN) 2-Bike rack (BYC) 3-Luggage rack (LUG) 5-Trailer hitch (TRH) 7-Infant child seat CSI 8-Child toddler seat (CST) 10-Snow chains (SNO) 11-Hand control right (HCR) 12-Hand control left (HCL) 13-Navigational system (NVS) 31-Citizen band radio (CBR) 32-Computerized directions (CDD) 33-FM radio (FMR) 34-Navigational phone (NVP) 35-Ski rental (SKI) 36-Ski equipped (SKV) 37-Cassette player (TAP) 38-Television(TVI) Quantity xs:positiveInteger optional         Restriction EquipmentRestrictionType
annotation	documentation Details about a equipment, such as text or description.
source	<xs:element name="Equipment" type="VehicleEquipmentType">   <xs:annotation>     <xs:documentation xml:lang="en">Details about a equipment, such as text or description.</xs:documentation>   </xs:annotation> </xs:element>

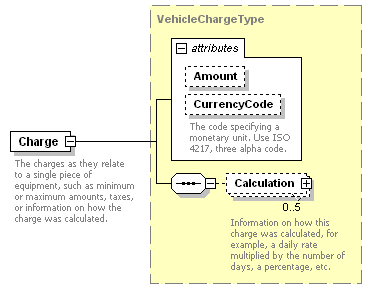

element VehicleEquipmentPricedType/Charge

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
type	VehicleChargeType
properties	isRef  0 content  complex
children	Calculation
attributes	Name   Type   Use   Default   Fixed   Annotation Amount Money optional         CurrencyCode AlphaLength3 optional         documentation The code specifying a monetary unit. Use ISO 4217, three alpha code.
annotation	documentation The charges as they relate to a single piece of equipment, such as minimum or maximum amounts, taxes, or information on how the charge was calculated.
source	<xs:element name="Charge" type="VehicleChargeType">   <xs:annotation>     <xs:documentation xml:lang="en">The charges as they relate to a single piece of equipment, such as minimum or maximum amounts, taxes, or information on how the charge was calculated.</xs:documentation>   </xs:annotation> </xs:element>

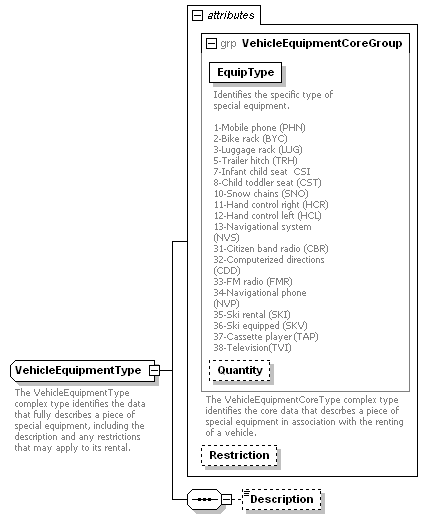

complexType VehicleEquipmentType

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
children	Description
used by	element  VehicleEquipmentPricedType/Equipment
attributes	Name   Type   Use   Default   Fixed   Annotation EquipType OTA_CodeType required         documentation Identifies the specific type of special equipment. 1-Mobile phone (PHN) 2-Bike rack (BYC) 3-Luggage rack (LUG) 5-Trailer hitch (TRH) 7-Infant child seat CSI 8-Child toddler seat (CST) 10-Snow chains (SNO) 11-Hand control right (HCR) 12-Hand control left (HCL) 13-Navigational system (NVS) 31-Citizen band radio (CBR) 32-Computerized directions (CDD) 33-FM radio (FMR) 34-Navigational phone (NVP) 35-Ski rental (SKI) 36-Ski equipped (SKV) 37-Cassette player (TAP) 38-Television(TVI) Quantity xs:positiveInteger optional         Restriction EquipmentRestrictionType
annotation	documentation The VehicleEquipmentType complex type identifies the data that fully describes a piece of special equipment, including the description and any restrictions that may apply to its rental.
source	<xs:complexType name="VehicleEquipmentType">   <xs:annotation>     <xs:documentation xml:lang="en">The VehicleEquipmentType complex type identifies the data that fully describes a piece of special equipment, including the description and any restrictions that may apply to its rental.</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="Description" type="xs:string" minOccurs="0"/>   </xs:sequence>   <xs:attributeGroup ref="VehicleEquipmentCoreGroup"/>   <xs:attribute name="Restriction" type="EquipmentRestrictionType"/> </xs:complexType>

attribute VehicleEquipmentType/@Restriction

type	EquipmentRestrictionType
properties	isRef  0
facets	enumeration  OneWayOnly enumeration  RoundTripOnly enumeration  AnyReservation
source	<xs:attribute name="Restriction" type="EquipmentRestrictionType"/>

element VehicleEquipmentType/Description

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="Description" type="xs:string" minOccurs="0"/>

complexType VehicleLocationAdditionalDetailsType

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
children	CounterLocation
used by	element  VehicleLocationDetailsType/AdditionalInfo
annotation	documentation The VehicleLocationAdditionalDetailsType complex type defines the supplemental information that describes a vehicle rental facility. Such information may include the  operation schedules and services offered.
source	<xs:complexType name="VehicleLocationAdditionalDetailsType">   <xs:annotation>     <xs:documentation xml:lang="en">The VehicleLocationAdditionalDetailsType complex type defines the supplemental information that describes a vehicle rental facility. Such information may include the  operation schedules and services offered.</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="CounterLocation" type="VehicleWhereAtFacilityType" minOccurs="0">       <xs:annotation>         <xs:documentation xml:lang="en">Descriptive information about where the rental counter is located. </xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

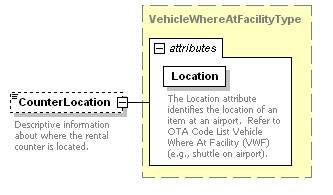

element VehicleLocationAdditionalDetailsType/CounterLocation

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05

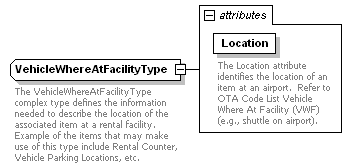

type	VehicleWhereAtFacilityType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
facets	minLength  0 maxLength  255
attributes	Name   Type   Use   Default   Fixed   Annotation Location OTA_CodeType required         documentation The Location attribute identifies the location of an item at an airport.  Refer to OTA Code List Vehicle Where At Facility (VWF) (e.g., shuttle on airport).
annotation	documentation Descriptive information about where the rental counter is located.
source	<xs:element name="CounterLocation" type="VehicleWhereAtFacilityType" minOccurs="0">   <xs:annotation>     <xs:documentation xml:lang="en">Descriptive information about where the rental counter is located. </xs:documentation>   </xs:annotation> </xs:element>

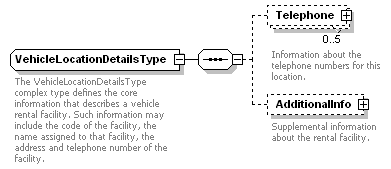

complexType VehicleLocationDetailsType

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
children	Telephone AdditionalInfo
used by	element  VehicleSegmentAdditionalInfoType/LocationDetails
annotation	documentation The VehicleLocationDetailsType complex type defines the core information that describes a vehicle rental facility. Such information may include the code of the facility, the name assigned to that facility, the address and telephone number of the facility.
source	<xs:complexType name="VehicleLocationDetailsType">   <xs:annotation>     <xs:documentation xml:lang="en">The VehicleLocationDetailsType complex type defines the core information that describes a vehicle rental facility. Such information may include the code of the facility, the name assigned to that facility, the address and telephone number of the facility.</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="Telephone" minOccurs="0" maxOccurs="5">       <xs:annotation>         <xs:documentation xml:lang="en">Information about the telephone numbers for this location.</xs:documentation>       </xs:annotation>       <xs:complexType>         <xs:attributeGroup ref="TelephoneInfoGroup"/>       </xs:complexType>     </xs:element>     <xs:element name="AdditionalInfo" type="VehicleLocationAdditionalDetailsType" minOccurs="0">       <xs:annotation>         <xs:documentation xml:lang="en">Supplemental information about the rental facility.</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

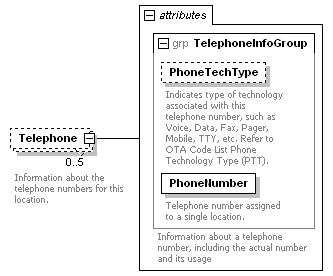

element VehicleLocationDetailsType/Telephone

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
properties	isRef  0 minOcc  0 maxOcc  5 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation PhoneTechType OTA_CodeType optional         documentation Indicates type of technology associated with this telephone number, such as Voice, Data, Fax, Pager, Mobile, TTY, etc. Refer to OTA Code List Phone Technology Type (PTT). PhoneNumber StringLength1to32 required         documentation Telephone number assigned to a single location.
annotation	documentation Information about the telephone numbers for this location.
source	<xs:element name="Telephone" minOccurs="0" maxOccurs="5">   <xs:annotation>     <xs:documentation xml:lang="en">Information about the telephone numbers for this location.</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attributeGroup ref="TelephoneInfoGroup"/>   </xs:complexType> </xs:element>

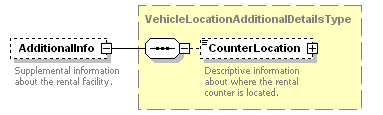

element VehicleLocationDetailsType/AdditionalInfo

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
type	VehicleLocationAdditionalDetailsType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	CounterLocation
annotation	documentation Supplemental information about the rental facility.
source	<xs:element name="AdditionalInfo" type="VehicleLocationAdditionalDetailsType" minOccurs="0">   <xs:annotation>     <xs:documentation xml:lang="en">Supplemental information about the rental facility.</xs:documentation>   </xs:annotation> </xs:element>

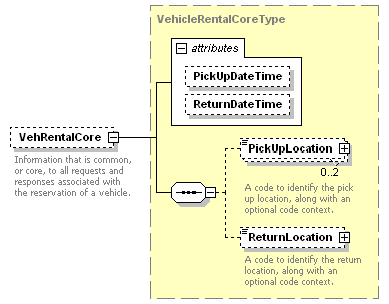

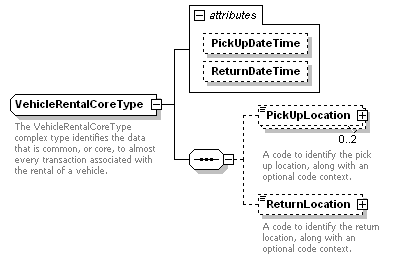

complexType VehicleRentalCoreType

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
children	PickUpLocation ReturnLocation
used by	element  VehicleSegmentCoreType/VehRentalCore
attributes	Name   Type   Use   Default   Fixed   Annotation PickUpDateTime xs:dateTime optional         ReturnDateTime xs:dateTime optional
annotation	documentation The VehicleRentalCoreType complex type identifies the data that is common, or core, to almost every transaction associated with the rental of a vehicle.
source	<xs:complexType name="VehicleRentalCoreType">   <xs:annotation>     <xs:documentation xml:lang="en">The VehicleRentalCoreType complex type identifies the data that is common, or core, to almost every transaction associated with the rental of a vehicle.</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="PickUpLocation" minOccurs="0" maxOccurs="2">       <xs:annotation>         <xs:documentation xml:lang="en">A code to identify the pick up location, along with an optional code context.</xs:documentation>       </xs:annotation>       <xs:complexType>         <xs:simpleContent>           <xs:extension base="LocationType">             <xs:attribute name="ExtendedLocationCode" type="StringLength1to8" use="optional">               <xs:annotation>                 <xs:documentation xml:lang="en">Specifies a unique location code (e.g., ATLC10).</xs:documentation>               </xs:annotation>             </xs:attribute>           </xs:extension>         </xs:simpleContent>       </xs:complexType>     </xs:element>     <xs:element name="ReturnLocation" minOccurs="0">       <xs:annotation>         <xs:documentation xml:lang="en">A code to identify the return location, along with an optional code context.</xs:documentation>       </xs:annotation>       <xs:complexType>         <xs:simpleContent>           <xs:extension base="LocationType"/>         </xs:simpleContent>       </xs:complexType>     </xs:element>   </xs:sequence>   <xs:attribute name="PickUpDateTime" type="xs:dateTime" use="optional"/>   <xs:attribute name="ReturnDateTime" type="xs:dateTime" use="optional"/> </xs:complexType>

attribute VehicleRentalCoreType/@PickUpDateTime

type	xs:dateTime
properties	isRef  0 use  optional
source	<xs:attribute name="PickUpDateTime" type="xs:dateTime" use="optional"/>

attribute VehicleRentalCoreType/@ReturnDateTime

type	xs:dateTime
properties	isRef  0 use  optional
source	<xs:attribute name="ReturnDateTime" type="xs:dateTime" use="optional"/>

element VehicleRentalCoreType/PickUpLocation

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
type	extension of LocationType
properties	isRef  0 minOcc  0 maxOcc  2 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation LocationCode StringLength1to16 optional         documentation Code used to identify a location. ExtendedLocationCode StringLength1to8 optional         documentation Specifies a unique location code (e.g., ATLC10).
annotation	documentation A code to identify the pick up location, along with an optional code context.
source	<xs:element name="PickUpLocation" minOccurs="0" maxOccurs="2">   <xs:annotation>     <xs:documentation xml:lang="en">A code to identify the pick up location, along with an optional code context.</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:simpleContent>       <xs:extension base="LocationType">         <xs:attribute name="ExtendedLocationCode" type="StringLength1to8" use="optional">           <xs:annotation>             <xs:documentation xml:lang="en">Specifies a unique location code (e.g., ATLC10).</xs:documentation>           </xs:annotation>         </xs:attribute>       </xs:extension>     </xs:simpleContent>   </xs:complexType> </xs:element>

attribute VehicleRentalCoreType/PickUpLocation/@ExtendedLocationCode

type	StringLength1to8
properties	isRef  0 use  optional
facets	minLength  1 maxLength  8
annotation	documentation Specifies a unique location code (e.g., ATLC10).
source	<xs:attribute name="ExtendedLocationCode" type="StringLength1to8" use="optional">   <xs:annotation>     <xs:documentation xml:lang="en">Specifies a unique location code (e.g., ATLC10).</xs:documentation>   </xs:annotation> </xs:attribute>

element VehicleRentalCoreType/ReturnLocation

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
type	extension of LocationType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation LocationCode StringLength1to16 optional         documentation Code used to identify a location.
annotation	documentation A code to identify the return location, along with an optional code context.
source	<xs:element name="ReturnLocation" minOccurs="0">   <xs:annotation>     <xs:documentation xml:lang="en">A code to identify the return location, along with an optional code context.</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:simpleContent>       <xs:extension base="LocationType"/>     </xs:simpleContent>   </xs:complexType> </xs:element>

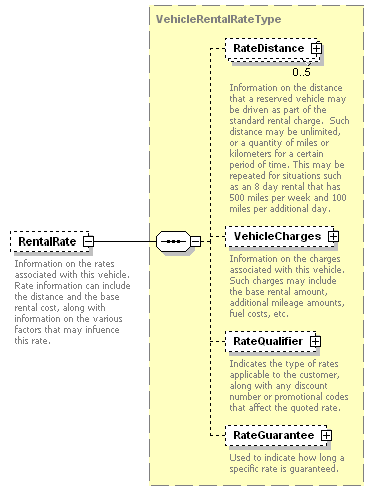

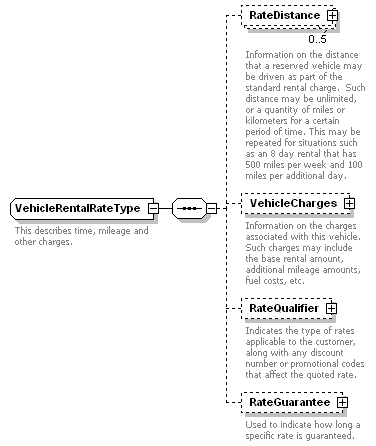

complexType VehicleRentalRateType

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
children	RateDistance VehicleCharges RateQualifier RateGuarantee
used by	element  VehicleSegmentCoreType/RentalRate
annotation	documentation This describes time, mileage and other charges.
source	<xs:complexType name="VehicleRentalRateType">   <xs:annotation>     <xs:documentation xml:lang="en">This describes time, mileage and other charges.</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="RateDistance" minOccurs="0" maxOccurs="5">       <xs:annotation>         <xs:documentation xml:lang="en">Information on the distance that a reserved vehicle may be driven as part of the standard rental charge.  Such distance may be unlimited, or a quantity of miles or kilometers for a certain period of time. This may be repeated for situations such as an 8 day rental that has 500 miles per week and 100 miles per additional day.</xs:documentation>       </xs:annotation>       <xs:complexType>         <xs:attributeGroup ref="VehicleRateDistanceGroup"/>       </xs:complexType>     </xs:element>     <xs:element name="VehicleCharges" minOccurs="0">       <xs:annotation>         <xs:documentation xml:lang="en">Information on the charges associated with this vehicle.  Such charges may include the base rental amount, additional mileage amounts, fuel costs, etc.</xs:documentation>       </xs:annotation>       <xs:complexType>         <xs:sequence>           <xs:element name="VehicleCharge" type="VehicleChargePurposeType" maxOccurs="99">             <xs:annotation>               <xs:documentation xml:lang="en">Detailed information on one specific charge including an indication of the type of charge.</xs:documentation>             </xs:annotation>           </xs:element>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="RateQualifier" type="RateQualifierType" minOccurs="0">       <xs:annotation>         <xs:documentation xml:lang="en">Indicates the type of rates applicable to the customer, along with any discount number or promotional codes that affect the quoted rate.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="RateGuarantee" minOccurs="0">       <xs:annotation>         <xs:documentation xml:lang="en">Used to indicate how long a specific rate is guaranteed.</xs:documentation>       </xs:annotation>       <xs:complexType>         <xs:sequence>           <xs:element name="Description" type="FormattedTextTextType" minOccurs="0">             <xs:annotation>               <xs:documentation xml:lang="en">A description of the rate guarantee.</xs:documentation>             </xs:annotation>           </xs:element>         </xs:sequence>       </xs:complexType>     </xs:element>   </xs:sequence> </xs:complexType>

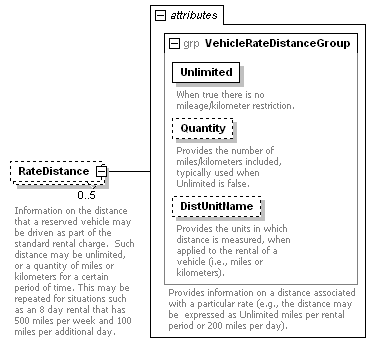

element VehicleRentalRateType/RateDistance

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
properties	isRef  0 minOcc  0 maxOcc  5 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation Unlimited xs:boolean required         documentation When true there is no mileage/kilometer restriction. Quantity xs:nonNegativeInteger optional         documentation Provides the number of miles/kilometers included, typically used when Unlimited is false. DistUnitName DistanceUnitNameType optional         documentation Provides the units in which distance is measured, when applied to the rental of a vehicle (i.e., miles or kilometers).
annotation	documentation Information on the distance that a reserved vehicle may be driven as part of the standard rental charge.  Such distance may be unlimited, or a quantity of miles or kilometers for a certain period of time. This may be repeated for situations such as an 8 day rental that has 500 miles per week and 100 miles per additional day.
source	<xs:element name="RateDistance" minOccurs="0" maxOccurs="5">   <xs:annotation>     <xs:documentation xml:lang="en">Information on the distance that a reserved vehicle may be driven as part of the standard rental charge.  Such distance may be unlimited, or a quantity of miles or kilometers for a certain period of time. This may be repeated for situations such as an 8 day rental that has 500 miles per week and 100 miles per additional day.</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attributeGroup ref="VehicleRateDistanceGroup"/>   </xs:complexType> </xs:element>

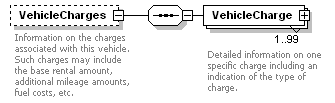

element VehicleRentalRateType/VehicleCharges

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	VehicleCharge
annotation	documentation Information on the charges associated with this vehicle.  Such charges may include the base rental amount, additional mileage amounts, fuel costs, etc.
source	<xs:element name="VehicleCharges" minOccurs="0">   <xs:annotation>     <xs:documentation xml:lang="en">Information on the charges associated with this vehicle.  Such charges may include the base rental amount, additional mileage amounts, fuel costs, etc.</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="VehicleCharge" type="VehicleChargePurposeType" maxOccurs="99">         <xs:annotation>           <xs:documentation xml:lang="en">Detailed information on one specific charge including an indication of the type of charge.</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element VehicleRentalRateType/VehicleCharges/VehicleCharge

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
type	VehicleChargePurposeType
properties	isRef  0 minOcc  1 maxOcc  99 content  complex
children	Calculation
attributes	Name   Type   Use   Default   Fixed   Annotation Amount Money optional         CurrencyCode AlphaLength3 optional         documentation The code specifying a monetary unit. Use ISO 4217, three alpha code. Purpose OTA_CodeType required         documentation Refer to OTA Code List Vehicle Charge Purpose Type (VCP).
annotation	documentation Detailed information on one specific charge including an indication of the type of charge.
source	<xs:element name="VehicleCharge" type="VehicleChargePurposeType" maxOccurs="99">   <xs:annotation>     <xs:documentation xml:lang="en">Detailed information on one specific charge including an indication of the type of charge.</xs:documentation>   </xs:annotation> </xs:element>

element VehicleRentalRateType/RateQualifier

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
type	RateQualifierType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	RateComments
attributes	Name   Type   Use   Default   Fixed   Annotation RateCategory OTA_CodeType optional         documentation The RateCategory attribute defines a set of valid values for the category of a rate.  Typically rates are offered as either Leisure rates or Business (Corporate) rates, with a business rate usually including additional costs such as the cost of insurance, etc.  This set of values defines the rate categories. Refer to OTA Code List Rate Category(RTC). CorpDiscountNmbr AlphaNumericStringLength1to8 optional         documentation This is the vendor specific code used to identify a special rate associated with a specific organization. PromotionCode StringLength1to32 optional         documentation Promotion code is the identifier used by the host to link directly with a specific named advertising campaign. By including the required code, the client is able to gain access to special offers which may have been created for a specifically targeted group via a CRM system or for a wider advertising campaign using Television or press adverts. RateQualifier StringLength1to32 optional         documentation This is the vendor specific code for rate codes (e.g. WES, 2A, DLY00). RatePeriod derived by: RatePeriodSimpleType optional         documentation The RatePeriod attribute defines the type of rate that may be applied.  For example, typically car rental rates differ based upon the duration of the rental, and the actual rate is then expressed in terms of the period of the rental. GuaranteedInd xs:boolean optional         documentation When true, only guaranteed rates should be returned.  When false, all rates should be returned
annotation	documentation Indicates the type of rates applicable to the customer, along with any discount number or promotional codes that affect the quoted rate.
source	<xs:element name="RateQualifier" type="RateQualifierType" minOccurs="0">   <xs:annotation>     <xs:documentation xml:lang="en">Indicates the type of rates applicable to the customer, along with any discount number or promotional codes that affect the quoted rate.</xs:documentation>   </xs:annotation> </xs:element>

element VehicleRentalRateType/RateGuarantee

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	Description
annotation	documentation Used to indicate how long a specific rate is guaranteed.
source	<xs:element name="RateGuarantee" minOccurs="0">   <xs:annotation>     <xs:documentation xml:lang="en">Used to indicate how long a specific rate is guaranteed.</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="Description" type="FormattedTextTextType" minOccurs="0">         <xs:annotation>           <xs:documentation xml:lang="en">A description of the rate guarantee.</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element VehicleRentalRateType/RateGuarantee/Description

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
type	FormattedTextTextType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
annotation	documentation A description of the rate guarantee.
source	<xs:element name="Description" type="FormattedTextTextType" minOccurs="0">   <xs:annotation>     <xs:documentation xml:lang="en">A description of the rate guarantee.</xs:documentation>   </xs:annotation> </xs:element>

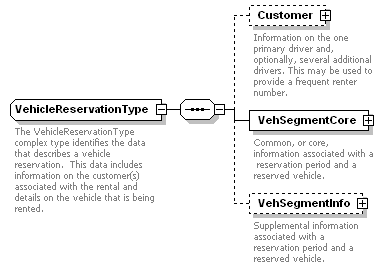

complexType VehicleReservationType

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
children	Customer VehSegmentCore VehSegmentInfo
used by	element  VehicleResRSCoreType/VehReservation
annotation	documentation The VehicleReservationType complex type identifies the data that describes a vehicle reservation.  This data includes information on the customer(s) associated with the rental and details on the vehicle that is being rented.
source	<xs:complexType name="VehicleReservationType">   <xs:annotation>     <xs:documentation xml:lang="en">The VehicleReservationType complex type identifies the data that describes a vehicle reservation.  This data includes information on the customer(s) associated with the rental and details on the vehicle that is being rented.</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="Customer" type="CustomerPrimaryAdditionalType" minOccurs="0">       <xs:annotation>         <xs:documentation xml:lang="en">Information on the one primary driver and, optionally, several additional drivers. This may be used to provide a frequent renter number.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="VehSegmentCore">       <xs:annotation>         <xs:documentation xml:lang="en">Common, or core, information associated with a  reservation period and a reserved vehicle.</xs:documentation>       </xs:annotation>       <xs:complexType>         <xs:complexContent>           <xs:extension base="VehicleSegmentCoreType"/>         </xs:complexContent>       </xs:complexType>     </xs:element>     <xs:element name="VehSegmentInfo" type="VehicleSegmentAdditionalInfoType" minOccurs="0">       <xs:annotation>         <xs:documentation xml:lang="en">Supplemental information associated with a  reservation period and a reserved vehicle.</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element VehicleReservationType/Customer

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
type	CustomerPrimaryAdditionalType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	Primary
annotation	documentation Information on the one primary driver and, optionally, several additional drivers. This may be used to provide a frequent renter number.
source	<xs:element name="Customer" type="CustomerPrimaryAdditionalType" minOccurs="0">   <xs:annotation>     <xs:documentation xml:lang="en">Information on the one primary driver and, optionally, several additional drivers. This may be used to provide a frequent renter number.</xs:documentation>   </xs:annotation> </xs:element>

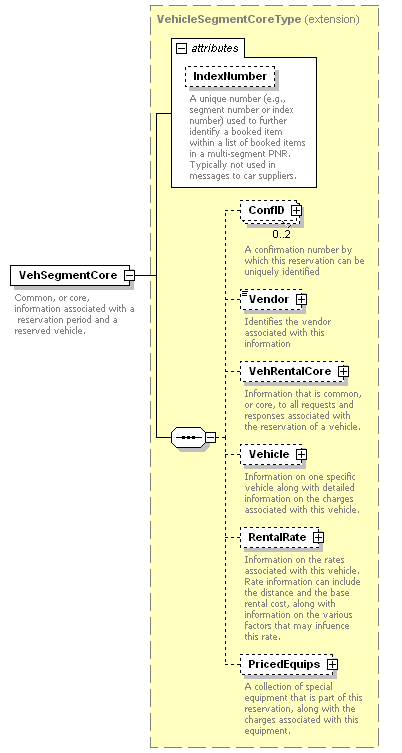

element VehicleReservationType/VehSegmentCore

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
type	extension of VehicleSegmentCoreType
properties	isRef  0 content  complex
children	ConfID Vendor VehRentalCore Vehicle RentalRate PricedEquips
attributes	Name   Type   Use   Default   Fixed   Annotation IndexNumber Numeric1to999 optional         documentation A unique number (e.g., segment number or index number) used to further identify a booked item within a list of booked items in a multi-segment PNR. Typically not used in messages to car suppliers.
annotation	documentation Common, or core, information associated with a  reservation period and a reserved vehicle.
source	<xs:element name="VehSegmentCore">   <xs:annotation>     <xs:documentation xml:lang="en">Common, or core, information associated with a  reservation period and a reserved vehicle.</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:complexContent>       <xs:extension base="VehicleSegmentCoreType"/>     </xs:complexContent>   </xs:complexType> </xs:element>

element VehicleReservationType/VehSegmentInfo

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
type	VehicleSegmentAdditionalInfoType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	RentalPaymentAmount PricedOffLocService VendorMessages LocationDetails TourInfo TPA_Extensions
attributes	Name   Type   Use   Default   Fixed   Annotation WrittenConfInd xs:boolean optional         documentation When true, a written confirmation may be requested.
annotation	documentation Supplemental information associated with a  reservation period and a reserved vehicle.
source	<xs:element name="VehSegmentInfo" type="VehicleSegmentAdditionalInfoType" minOccurs="0">   <xs:annotation>     <xs:documentation xml:lang="en">Supplemental information associated with a  reservation period and a reserved vehicle.</xs:documentation>   </xs:annotation> </xs:element>

complexType VehicleResRSAdditionalInfoType

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
children	ReservationID TPA_Extensions
used by	element  OTA_VehResRS/VehResRSInfo
annotation	documentation The VehicleResRSAdditionalInfoType complex type identifies the supplemental information that is associated with the reservation of a vehicle.
source	<xs:complexType name="VehicleResRSAdditionalInfoType">   <xs:annotation>     <xs:documentation xml:lang="en">The VehicleResRSAdditionalInfoType complex type identifies the supplemental information that is associated with the reservation of a vehicle. </xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="ReservationID" type="UniqueID_Type"/>     <xs:element name="TPA_Extensions" minOccurs="0">       <xs:complexType>         <xs:sequence>           <xs:element name="RequestorID" type="UniqueID_Type" minOccurs="0">             <xs:annotation>               <xs:documentation xml:lang="en">An identifier of the entity making the request  (e.g. ATA/IATA/ID number, Electronic Reservation Service Provider (ERSP), Association of British Travel Agents (ABTA)). </xs:documentation>             </xs:annotation>           </xs:element>           <xs:element name="WorldfileError" minOccurs="0">             <xs:complexType>               <xs:attribute name="Count" type="Numeric1to99"/>               <xs:attribute name="Text" type="AlphaNumericStringLength1to19"/>             </xs:complexType>           </xs:element>         </xs:sequence>       </xs:complexType>     </xs:element>   </xs:sequence> </xs:complexType>

element VehicleResRSAdditionalInfoType/ReservationID

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
type	UniqueID_Type
properties	isRef  0 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation Type OTA_CodeType required         documentation A reference to the type of object defined by the UniqueID element. Refer to OTA Code List Unique ID Type (UIT). ID StringLength1to32 required         documentation A unique identifying value assigned by the creating system.  The ID attribute may be used to reference a primary-key value within a database or in a particular implementation.
source	<xs:element name="ReservationID" type="UniqueID_Type"/>

element VehicleResRSAdditionalInfoType/TPA_Extensions

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	RequestorID WorldfileError
source	<xs:element name="TPA_Extensions" minOccurs="0">   <xs:complexType>     <xs:sequence>       <xs:element name="RequestorID" type="UniqueID_Type" minOccurs="0">         <xs:annotation>           <xs:documentation xml:lang="en">An identifier of the entity making the request  (e.g. ATA/IATA/ID number, Electronic Reservation Service Provider (ERSP), Association of British Travel Agents (ABTA)). </xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="WorldfileError" minOccurs="0">         <xs:complexType>           <xs:attribute name="Count" type="Numeric1to99"/>           <xs:attribute name="Text" type="AlphaNumericStringLength1to19"/>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element VehicleResRSAdditionalInfoType/TPA_Extensions/RequestorID

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
type	UniqueID_Type
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation Type OTA_CodeType required         documentation A reference to the type of object defined by the UniqueID element. Refer to OTA Code List Unique ID Type (UIT). ID StringLength1to32 required         documentation A unique identifying value assigned by the creating system.  The ID attribute may be used to reference a primary-key value within a database or in a particular implementation.
annotation	documentation An identifier of the entity making the request  (e.g. ATA/IATA/ID number, Electronic Reservation Service Provider (ERSP), Association of British Travel Agents (ABTA)).
source	<xs:element name="RequestorID" type="UniqueID_Type" minOccurs="0">   <xs:annotation>     <xs:documentation xml:lang="en">An identifier of the entity making the request  (e.g. ATA/IATA/ID number, Electronic Reservation Service Provider (ERSP), Association of British Travel Agents (ABTA)). </xs:documentation>   </xs:annotation> </xs:element>

element VehicleResRSAdditionalInfoType/TPA_Extensions/WorldfileError

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation Count Numeric1to99          Text AlphaNumericStringLength1to19
source	<xs:element name="WorldfileError" minOccurs="0">   <xs:complexType>     <xs:attribute name="Count" type="Numeric1to99"/>     <xs:attribute name="Text" type="AlphaNumericStringLength1to19"/>   </xs:complexType> </xs:element>

attribute VehicleResRSAdditionalInfoType/TPA_Extensions/WorldfileError/@Count

type	Numeric1to99
properties	isRef  0
facets	minInclusive  1 maxInclusive  99
source	<xs:attribute name="Count" type="Numeric1to99"/>

attribute VehicleResRSAdditionalInfoType/TPA_Extensions/WorldfileError/@Text

type	AlphaNumericStringLength1to19
properties	isRef  0
facets	pattern  [0-9a-zA-Z]{1,19}
source	<xs:attribute name="Text" type="AlphaNumericStringLength1to19"/>

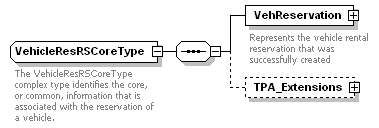

complexType VehicleResRSCoreType

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
children	VehReservation TPA_Extensions
used by	element  OTA_VehResRS/VehResRSCore
annotation	documentation The VehicleResRSCoreType complex type identifies the core, or common, information that is associated with the reservation of a vehicle.
source	<xs:complexType name="VehicleResRSCoreType">   <xs:annotation>     <xs:documentation xml:lang="en">The VehicleResRSCoreType complex type identifies the core, or common, information that is associated with the reservation of a vehicle. </xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="VehReservation" type="VehicleReservationType">       <xs:annotation>         <xs:documentation xml:lang="en">Represents the vehicle rental reservation that was successfully created</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="TPA_Extensions" minOccurs="0">       <xs:complexType>         <xs:attribute name="VehiclesQuantity"/>       </xs:complexType>     </xs:element>   </xs:sequence> </xs:complexType>

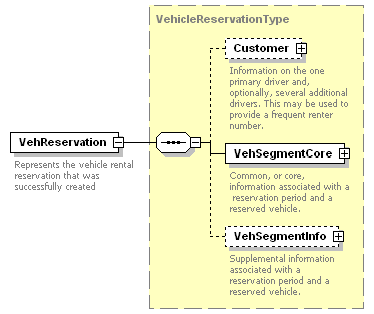

element VehicleResRSCoreType/VehReservation

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
type	VehicleReservationType
properties	isRef  0 content  complex
children	Customer VehSegmentCore VehSegmentInfo
annotation	documentation Represents the vehicle rental reservation that was successfully created
source	<xs:element name="VehReservation" type="VehicleReservationType">   <xs:annotation>     <xs:documentation xml:lang="en">Represents the vehicle rental reservation that was successfully created</xs:documentation>   </xs:annotation> </xs:element>

element VehicleResRSCoreType/TPA_Extensions

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation VehiclesQuantity
source	<xs:element name="TPA_Extensions" minOccurs="0">   <xs:complexType>     <xs:attribute name="VehiclesQuantity"/>   </xs:complexType> </xs:element>

attribute VehicleResRSCoreType/TPA_Extensions/@VehiclesQuantity

properties	isRef  0
source	<xs:attribute name="VehiclesQuantity"/>

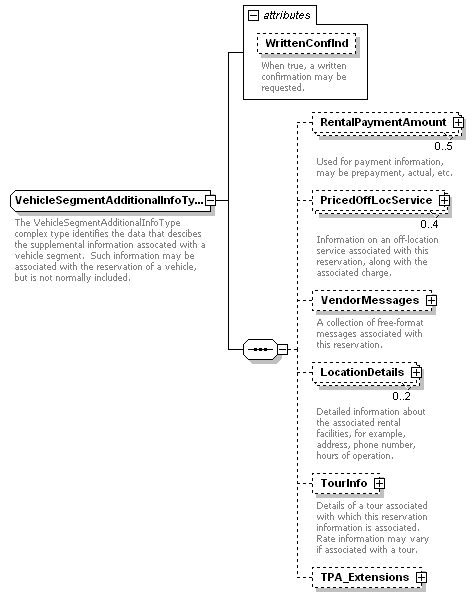

complexType VehicleSegmentAdditionalInfoType

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
children	RentalPaymentAmount PricedOffLocService VendorMessages LocationDetails TourInfo TPA_Extensions
used by	element  VehicleReservationType/VehSegmentInfo
attributes	Name   Type   Use   Default   Fixed   Annotation WrittenConfInd xs:boolean optional         documentation When true, a written confirmation may be requested.
annotation	documentation The VehicleSegmentAdditionalInfoType complex type identifies the data that descibes the supplemental information assocated with a vehicle segment.  Such information may be associated with the reservation of a vehicle, but is not normally included.
source	<xs:complexType name="VehicleSegmentAdditionalInfoType">   <xs:annotation>     <xs:documentation xml:lang="en">The VehicleSegmentAdditionalInfoType complex type identifies the data that descibes the supplemental information assocated with a vehicle segment.  Such information may be associated with the reservation of a vehicle, but is not normally included.</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="RentalPaymentAmount" type="PaymentDetailType" minOccurs="0" maxOccurs="5">       <xs:annotation>         <xs:documentation xml:lang="en">Used for payment information, may be prepayment, actual, etc.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="PricedOffLocService" type="OffLocationServicePricedType" minOccurs="0" maxOccurs="4">       <xs:annotation>         <xs:documentation xml:lang="en">Information on an off-location service associated with this reservation, along with the associated charge.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="VendorMessages" minOccurs="0">       <xs:annotation>         <xs:documentation xml:lang="en">A collection of free-format messages associated with this reservation.</xs:documentation>       </xs:annotation>       <xs:complexType>         <xs:sequence>           <xs:element name="VendorMessage" type="FormattedTextType" maxOccurs="99">             <xs:annotation>               <xs:documentation xml:lang="en">A specific vendor message associated with this reservation.</xs:documentation>             </xs:annotation>           </xs:element>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="LocationDetails" type="VehicleLocationDetailsType" minOccurs="0" maxOccurs="2">       <xs:annotation>         <xs:documentation xml:lang="en">Detailed information about the associated rental facilities, for example, address, phone number, hours of operation.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="TourInfo" type="VehicleTourInfoType" minOccurs="0">       <xs:annotation>         <xs:documentation xml:lang="en">Details of a tour associated with which this reservation information is associated. Rate information may vary if associated with a tour.  </xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="TPA_Extensions" minOccurs="0">       <xs:complexType>         <xs:attribute name="TicketTimeLimit"/>       </xs:complexType>     </xs:element>   </xs:sequence>   <xs:attribute name="WrittenConfInd" type="xs:boolean" use="optional">     <xs:annotation>       <xs:documentation xml:lang="en">When true, a written confirmation may be requested.</xs:documentation>     </xs:annotation>   </xs:attribute> </xs:complexType>

attribute VehicleSegmentAdditionalInfoType/@WrittenConfInd

type	xs:boolean
properties	isRef  0 use  optional
annotation	documentation When true, a written confirmation may be requested.
source	<xs:attribute name="WrittenConfInd" type="xs:boolean" use="optional">   <xs:annotation>     <xs:documentation xml:lang="en">When true, a written confirmation may be requested.</xs:documentation>   </xs:annotation> </xs:attribute>

element VehicleSegmentAdditionalInfoType/RentalPaymentAmount

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
type	PaymentDetailType
properties	isRef  0 minOcc  0 maxOcc  5 content  complex
children	PaymentCard BankAcct DirectBill Voucher Cash PaymentAmount
attributes	Name   Type   Use   Default   Fixed   Annotation PaymentTransactionTypeCode derived by: xs:NMTOKEN optional         documentation This is used to indicate either a charge or reserve (deposit).
annotation	documentation Used for payment information, may be prepayment, actual, etc.
source	<xs:element name="RentalPaymentAmount" type="PaymentDetailType" minOccurs="0" maxOccurs="5">   <xs:annotation>     <xs:documentation xml:lang="en">Used for payment information, may be prepayment, actual, etc.</xs:documentation>   </xs:annotation> </xs:element>

element VehicleSegmentAdditionalInfoType/PricedOffLocService

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
type	OffLocationServicePricedType
properties	isRef  0 minOcc  0 maxOcc  4 content  complex
children	OffLocService
annotation	documentation Information on an off-location service associated with this reservation, along with the associated charge.
source	<xs:element name="PricedOffLocService" type="OffLocationServicePricedType" minOccurs="0" maxOccurs="4">   <xs:annotation>     <xs:documentation xml:lang="en">Information on an off-location service associated with this reservation, along with the associated charge.</xs:documentation>   </xs:annotation> </xs:element>

element VehicleSegmentAdditionalInfoType/VendorMessages

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	VendorMessage
annotation	documentation A collection of free-format messages associated with this reservation.
source	<xs:element name="VendorMessages" minOccurs="0">   <xs:annotation>     <xs:documentation xml:lang="en">A collection of free-format messages associated with this reservation.</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="VendorMessage" type="FormattedTextType" maxOccurs="99">         <xs:annotation>           <xs:documentation xml:lang="en">A specific vendor message associated with this reservation.</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

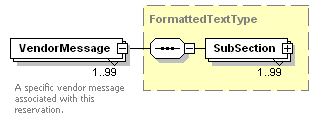

element VehicleSegmentAdditionalInfoType/VendorMessages/VendorMessage

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
type	FormattedTextType
properties	isRef  0 minOcc  1 maxOcc  99 content  complex
children	SubSection
annotation	documentation A specific vendor message associated with this reservation.
source	<xs:element name="VendorMessage" type="FormattedTextType" maxOccurs="99">   <xs:annotation>     <xs:documentation xml:lang="en">A specific vendor message associated with this reservation.</xs:documentation>   </xs:annotation> </xs:element>

element VehicleSegmentAdditionalInfoType/LocationDetails

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
type	VehicleLocationDetailsType
properties	isRef  0 minOcc  0 maxOcc  2 content  complex
children	Telephone AdditionalInfo
annotation	documentation Detailed information about the associated rental facilities, for example, address, phone number, hours of operation.
source	<xs:element name="LocationDetails" type="VehicleLocationDetailsType" minOccurs="0" maxOccurs="2">   <xs:annotation>     <xs:documentation xml:lang="en">Detailed information about the associated rental facilities, for example, address, phone number, hours of operation.</xs:documentation>   </xs:annotation> </xs:element>

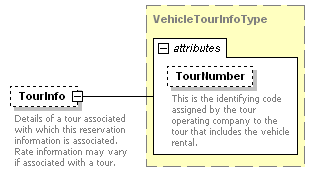

element VehicleSegmentAdditionalInfoType/TourInfo

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
type	VehicleTourInfoType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation TourNumber StringLength1to16 optional         documentation This is the identifying code assigned by the tour operating company to the tour that includes the vehicle rental.
annotation	documentation Details of a tour associated with which this reservation information is associated. Rate information may vary if associated with a tour.
source	<xs:element name="TourInfo" type="VehicleTourInfoType" minOccurs="0">   <xs:annotation>     <xs:documentation xml:lang="en">Details of a tour associated with which this reservation information is associated. Rate information may vary if associated with a tour.  </xs:documentation>   </xs:annotation> </xs:element>

element VehicleSegmentAdditionalInfoType/TPA_Extensions

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation TicketTimeLimit
source	<xs:element name="TPA_Extensions" minOccurs="0">   <xs:complexType>     <xs:attribute name="TicketTimeLimit"/>   </xs:complexType> </xs:element>

attribute VehicleSegmentAdditionalInfoType/TPA_Extensions/@TicketTimeLimit

properties	isRef  0
source	<xs:attribute name="TicketTimeLimit"/>

complexType VehicleSegmentCoreType

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
children	ConfID Vendor VehRentalCore Vehicle RentalRate PricedEquips
used by	element  VehicleReservationType/VehSegmentCore
attributes	Name   Type   Use   Default   Fixed   Annotation IndexNumber Numeric1to999 optional         documentation A unique number (e.g., segment number or index number) used to further identify a booked item within a list of booked items in a multi-segment PNR. Typically not used in messages to car suppliers.
annotation	documentation The VehicleSegmentCoreType complex type identifies the core, or common, data that descibes the information assocated with a vehicle segment.  Such information is typically provided in a reservation.
source	<xs:complexType name="VehicleSegmentCoreType">   <xs:annotation>     <xs:documentation xml:lang="en">The VehicleSegmentCoreType complex type identifies the core, or common, data that descibes the information assocated with a vehicle segment.  Such information is typically provided in a reservation.</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="ConfID" type="UniqueID_Type" minOccurs="0" maxOccurs="2">       <xs:annotation>         <xs:documentation xml:lang="en">A confirmation number by which this reservation can be uniquely identified</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="Vendor" type="CompanyNameType" minOccurs="0">       <xs:annotation>         <xs:documentation xml:lang="en">Identifies the vendor associated with this information</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="VehRentalCore" type="VehicleRentalCoreType" minOccurs="0">       <xs:annotation>         <xs:documentation xml:lang="en">Information that is common,  or core, to all requests and responses associated with the reservation of a vehicle.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="Vehicle" type="VehicleType" minOccurs="0">       <xs:annotation>         <xs:documentation xml:lang="en">Information on one specific vehicle along with detailed information on the charges associated with this vehicle.</xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="RentalRate" type="VehicleRentalRateType" minOccurs="0">       <xs:annotation>         <xs:documentation xml:lang="en">Information on the rates associated with this vehicle.  Rate information can include the distance and the base rental cost, along with information on the various factors that may infuence this rate.  </xs:documentation>       </xs:annotation>     </xs:element>     <xs:element name="PricedEquips" minOccurs="0">       <xs:annotation>         <xs:documentation xml:lang="en">A collection of special equipment that is part of this reservation, along with the charges associated with this equipment.</xs:documentation>       </xs:annotation>       <xs:complexType>         <xs:sequence>           <xs:element name="PricedEquip" type="VehicleEquipmentPricedType" maxOccurs="25">             <xs:annotation>               <xs:documentation xml:lang="en">A specific piece of special equipment, along with the quantity, restrictions and charge.</xs:documentation>             </xs:annotation>           </xs:element>         </xs:sequence>       </xs:complexType>     </xs:element>   </xs:sequence>   <xs:attribute name="IndexNumber" type="Numeric1to999" use="optional">     <xs:annotation>       <xs:documentation xml:lang="en">A unique number (e.g., segment number or index number) used to further identify a booked item within a list of booked items in a multi-segment PNR. Typically not used in messages to car suppliers.</xs:documentation>     </xs:annotation>   </xs:attribute> </xs:complexType>

attribute VehicleSegmentCoreType/@IndexNumber

type	Numeric1to999
properties	isRef  0 use  optional
facets	minInclusive  1 maxInclusive  999
annotation	documentation A unique number (e.g., segment number or index number) used to further identify a booked item within a list of booked items in a multi-segment PNR. Typically not used in messages to car suppliers.
source	<xs:attribute name="IndexNumber" type="Numeric1to999" use="optional">   <xs:annotation>     <xs:documentation xml:lang="en">A unique number (e.g., segment number or index number) used to further identify a booked item within a list of booked items in a multi-segment PNR. Typically not used in messages to car suppliers.</xs:documentation>   </xs:annotation> </xs:attribute>

element VehicleSegmentCoreType/ConfID

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
type	UniqueID_Type
properties	isRef  0 minOcc  0 maxOcc  2 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation Type OTA_CodeType required         documentation A reference to the type of object defined by the UniqueID element. Refer to OTA Code List Unique ID Type (UIT). ID StringLength1to32 required         documentation A unique identifying value assigned by the creating system.  The ID attribute may be used to reference a primary-key value within a database or in a particular implementation.
annotation	documentation A confirmation number by which this reservation can be uniquely identified
source	<xs:element name="ConfID" type="UniqueID_Type" minOccurs="0" maxOccurs="2">   <xs:annotation>     <xs:documentation xml:lang="en">A confirmation number by which this reservation can be uniquely identified</xs:documentation>   </xs:annotation> </xs:element>

element VehicleSegmentCoreType/Vendor

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
type	CompanyNameType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
facets	minLength  0 maxLength  128
attributes	Name   Type   Use   Default   Fixed   Annotation Code StringLength1to16 optional         documentation Identifies a company by the company code.
annotation	documentation Identifies the vendor associated with this information
source	<xs:element name="Vendor" type="CompanyNameType" minOccurs="0">   <xs:annotation>     <xs:documentation xml:lang="en">Identifies the vendor associated with this information</xs:documentation>   </xs:annotation> </xs:element>

element VehicleSegmentCoreType/VehRentalCore

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
type	VehicleRentalCoreType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	PickUpLocation ReturnLocation
attributes	Name   Type   Use   Default   Fixed   Annotation PickUpDateTime xs:dateTime optional         ReturnDateTime xs:dateTime optional
annotation	documentation Information that is common,  or core, to all requests and responses associated with the reservation of a vehicle.
source	<xs:element name="VehRentalCore" type="VehicleRentalCoreType" minOccurs="0">   <xs:annotation>     <xs:documentation xml:lang="en">Information that is common,  or core, to all requests and responses associated with the reservation of a vehicle.</xs:documentation>   </xs:annotation> </xs:element>

element VehicleSegmentCoreType/Vehicle

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
type	VehicleType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	VehType VehClass
attributes	Name   Type   Use   Default   Fixed   Annotation AirConditionInd xs:boolean optional         TransmissionType VehicleTransmissionType optional         FuelType derived by: xs:NMTOKEN optional         documentation The kind of fuel the vehicle uses. DriveType derived by: xs:NMTOKEN optional         documentation Used to define the drive type of a vehicle.
annotation	documentation Information on one specific vehicle along with detailed information on the charges associated with this vehicle.
source	<xs:element name="Vehicle" type="VehicleType" minOccurs="0">   <xs:annotation>     <xs:documentation xml:lang="en">Information on one specific vehicle along with detailed information on the charges associated with this vehicle.</xs:documentation>   </xs:annotation> </xs:element>

element VehicleSegmentCoreType/RentalRate

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
type	VehicleRentalRateType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	RateDistance VehicleCharges RateQualifier RateGuarantee
annotation	documentation Information on the rates associated with this vehicle.  Rate information can include the distance and the base rental cost, along with information on the various factors that may infuence this rate.
source	<xs:element name="RentalRate" type="VehicleRentalRateType" minOccurs="0">   <xs:annotation>     <xs:documentation xml:lang="en">Information on the rates associated with this vehicle.  Rate information can include the distance and the base rental cost, along with information on the various factors that may infuence this rate.  </xs:documentation>   </xs:annotation> </xs:element>

element VehicleSegmentCoreType/PricedEquips

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	PricedEquip
annotation	documentation A collection of special equipment that is part of this reservation, along with the charges associated with this equipment.
source	<xs:element name="PricedEquips" minOccurs="0">   <xs:annotation>     <xs:documentation xml:lang="en">A collection of special equipment that is part of this reservation, along with the charges associated with this equipment.</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="PricedEquip" type="VehicleEquipmentPricedType" maxOccurs="25">         <xs:annotation>           <xs:documentation xml:lang="en">A specific piece of special equipment, along with the quantity, restrictions and charge.</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element VehicleSegmentCoreType/PricedEquips/PricedEquip

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
type	VehicleEquipmentPricedType
properties	isRef  0 minOcc  1 maxOcc  25 content  complex
children	Equipment Charge
attributes	Name   Type   Use   Default   Fixed   Annotation Required xs:boolean optional   false      documentation An indication if this particular equipment is required in the vehicle reservation, or is optional, based upon renter preference.
annotation	documentation A specific piece of special equipment, along with the quantity, restrictions and charge.
source	<xs:element name="PricedEquip" type="VehicleEquipmentPricedType" maxOccurs="25">   <xs:annotation>     <xs:documentation xml:lang="en">A specific piece of special equipment, along with the quantity, restrictions and charge.</xs:documentation>   </xs:annotation> </xs:element>

complexType VehicleTourInfoType

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
used by	element  VehicleSegmentAdditionalInfoType/TourInfo
attributes	Name   Type   Use   Default   Fixed   Annotation TourNumber StringLength1to16 optional         documentation This is the identifying code assigned by the tour operating company to the tour that includes the vehicle rental.
annotation	documentation The VehicleTourInfoType provides information about a tour that includes a vehicle rental.
source	<xs:complexType name="VehicleTourInfoType">   <xs:annotation>     <xs:documentation xml:lang="en">The VehicleTourInfoType provides information about a tour that includes a vehicle rental. </xs:documentation>   </xs:annotation>   <xs:attribute name="TourNumber" type="StringLength1to16" use="optional">     <xs:annotation>       <xs:documentation xml:lang="en">This is the identifying code assigned by the tour operating company to the tour that includes the vehicle rental.</xs:documentation>     </xs:annotation>   </xs:attribute> </xs:complexType>

attribute VehicleTourInfoType/@TourNumber

type	StringLength1to16
properties	isRef  0 use  optional
facets	minLength  1 maxLength  16
annotation	documentation This is the identifying code assigned by the tour operating company to the tour that includes the vehicle rental.
source	<xs:attribute name="TourNumber" type="StringLength1to16" use="optional">   <xs:annotation>     <xs:documentation xml:lang="en">This is the identifying code assigned by the tour operating company to the tour that includes the vehicle rental.</xs:documentation>   </xs:annotation> </xs:attribute>

complexType VehicleType

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
type	extension of VehicleCoreType
properties	base  VehicleCoreType
children	VehType VehClass
used by	element  VehicleSegmentCoreType/Vehicle
attributes	Name   Type   Use   Default   Fixed   Annotation AirConditionInd xs:boolean optional         TransmissionType VehicleTransmissionType optional         FuelType derived by: xs:NMTOKEN optional         documentation The kind of fuel the vehicle uses. DriveType derived by: xs:NMTOKEN optional         documentation Used to define the drive type of a vehicle.
annotation	documentation The VehicleType complex type identifie sthe data that fully describes a vehicle. This includes the core information along with supplemental information such as make and model, and a link to a picture.
source	<xs:complexType name="VehicleType">   <xs:annotation>     <xs:documentation xml:lang="en">The VehicleType complex type identifie sthe data that fully describes a vehicle. This includes the core information along with supplemental information such as make and model, and a link to a picture.</xs:documentation>   </xs:annotation>   <xs:complexContent>     <xs:extension base="VehicleCoreType"/>   </xs:complexContent> </xs:complexType>

complexType VehicleWhereAtFacilityType

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
type	extension of StringLength0to255
properties	base  StringLength0to255
used by	element  VehicleLocationAdditionalDetailsType/CounterLocation
facets	minLength  0 maxLength  255
attributes	Name   Type   Use   Default   Fixed   Annotation Location OTA_CodeType required         documentation The Location attribute identifies the location of an item at an airport.  Refer to OTA Code List Vehicle Where At Facility (VWF) (e.g., shuttle on airport).
annotation	documentation The VehicleWhereAtFacilityType complex type defines the information needed to describe the location of the associated item at a rental facility.  Example of the items that may make use of this type include Rental Counter, Vehicle Parking Locations, etc.
source	<xs:complexType name="VehicleWhereAtFacilityType">   <xs:annotation>     <xs:documentation xml:lang="en">The VehicleWhereAtFacilityType complex type defines the information needed to describe the location of the associated item at a rental facility.  Example of the items that may make use of this type include Rental Counter, Vehicle Parking Locations, etc.</xs:documentation>   </xs:annotation>   <xs:simpleContent>     <xs:extension base="StringLength0to255">       <xs:attribute name="Location" type="OTA_CodeType" use="required">         <xs:annotation>           <xs:documentation xml:lang="en">The Location attribute identifies the location of an item at an airport.  Refer to OTA Code List Vehicle Where At Facility (VWF) (e.g., shuttle on airport).</xs:documentation>         </xs:annotation>       </xs:attribute>     </xs:extension>   </xs:simpleContent> </xs:complexType>

attribute VehicleWhereAtFacilityType/@Location

type	OTA_CodeType
properties	isRef  0 use  required
facets	pattern  [0-9A-Z]{1,3}(\.[A-Z]{3}(\.X){0,1}){0,1}
annotation	documentation The Location attribute identifies the location of an item at an airport.  Refer to OTA Code List Vehicle Where At Facility (VWF) (e.g., shuttle on airport).
source	<xs:attribute name="Location" type="OTA_CodeType" use="required">   <xs:annotation>     <xs:documentation xml:lang="en">The Location attribute identifies the location of an item at an airport.  Refer to OTA Code List Vehicle Where At Facility (VWF) (e.g., shuttle on airport).</xs:documentation>   </xs:annotation> </xs:attribute>

complexType WarningsType

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
children	Warning
used by	element  OTA_VehResRS/Warnings
annotation	documentation Collection of warnings.
source	<xs:complexType name="WarningsType">   <xs:annotation>     <xs:documentation xml:lang="en">Collection of warnings.</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="Warning" type="WarningType" maxOccurs="99"/>   </xs:sequence> </xs:complexType>

element WarningsType/Warning

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
type	WarningType
properties	isRef  0 minOcc  1 maxOcc  99 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation Type OTA_CodeType required         documentation The Warning element MUST contain the Type attribute that uses a recommended set of values to indicate the warning type. The validating XSD can expect to accept values that it has NOT been explicitly coded for and process them by using Type ="Unknown".  Refer to OTA Code List Error Warning Type (EWT). Code OTA_CodeType optional         documentation If present, this refers to a table of coded values exchanged between applications to identify errors or warnings. Refer to OTA Code List Error Codes (ERR).
source	<xs:element name="Warning" type="WarningType" maxOccurs="99"/>

complexType WarningType

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
type	extension of FreeTextType
properties	base  FreeTextType
used by	element  WarningsType/Warning
attributes	Name   Type   Use   Default   Fixed   Annotation Type OTA_CodeType required         documentation The Warning element MUST contain the Type attribute that uses a recommended set of values to indicate the warning type. The validating XSD can expect to accept values that it has NOT been explicitly coded for and process them by using Type ="Unknown".  Refer to OTA Code List Error Warning Type (EWT). Code OTA_CodeType optional         documentation If present, this refers to a table of coded values exchanged between applications to identify errors or warnings. Refer to OTA Code List Error Codes (ERR).
annotation	documentation Standard way to indicate successful processing of an OTA message, but one in which warnings are generated
source	<xs:complexType name="WarningType">   <xs:annotation>     <xs:documentation xml:lang="en">Standard way to indicate successful processing of an OTA message, but one in which warnings are generated</xs:documentation>   </xs:annotation>   <xs:simpleContent>     <xs:extension base="FreeTextType">       <xs:attribute name="Type" type="OTA_CodeType" use="required">         <xs:annotation>           <xs:documentation xml:lang="en">The Warning element MUST contain the Type attribute that uses a recommended set of values to indicate the warning type. The validating XSD can expect to accept values that it has NOT been explicitly coded for and process them by using Type ="Unknown".  Refer to OTA Code List Error Warning Type (EWT).</xs:documentation>         </xs:annotation>       </xs:attribute>       <xs:attributeGroup ref="ErrorWarningAttributeGroup"/>     </xs:extension>   </xs:simpleContent> </xs:complexType>

attribute WarningType/@Type

type	OTA_CodeType
properties	isRef  0 use  required
facets	pattern  [0-9A-Z]{1,3}(\.[A-Z]{3}(\.X){0,1}){0,1}
annotation	documentation The Warning element MUST contain the Type attribute that uses a recommended set of values to indicate the warning type. The validating XSD can expect to accept values that it has NOT been explicitly coded for and process them by using Type ="Unknown".  Refer to OTA Code List Error Warning Type (EWT).
source	<xs:attribute name="Type" type="OTA_CodeType" use="required">   <xs:annotation>     <xs:documentation xml:lang="en">The Warning element MUST contain the Type attribute that uses a recommended set of values to indicate the warning type. The validating XSD can expect to accept values that it has NOT been explicitly coded for and process them by using Type ="Unknown".  Refer to OTA Code List Error Warning Type (EWT).</xs:documentation>   </xs:annotation> </xs:attribute>

simpleType AlphaLength3

namespace	http://www.opentravel.org/OTA_RS/2003/05
type	restriction of xs:string
used by	attribute  CurrencyCodeGroup/@CurrencyCode
facets	pattern  [a-zA-Z]{3}
annotation	documentation Used for Alphabetic Strings, length exactly 3
source	<xs:simpleType name="AlphaLength3">   <xs:annotation>     <xs:documentation xml:lang="en">Used for Alphabetic Strings, length exactly 3</xs:documentation>   </xs:annotation>   <xs:restriction base="xs:string">     <xs:pattern value="[a-zA-Z]{3}"/>   </xs:restriction> </xs:simpleType>

simpleType AlphaNumericStringLength1to19

namespace	http://www.opentravel.org/OTA_RS/2003/05
type	restriction of xs:string
used by	attribute  VehicleResRSAdditionalInfoType/TPA_Extensions/WorldfileError/@Text
facets	pattern  [0-9a-zA-Z]{1,19}
annotation	documentation Used forAlpha-Numeric Strings, length 1 to 19
source	<xs:simpleType name="AlphaNumericStringLength1to19">   <xs:annotation>     <xs:documentation xml:lang="en">Used forAlpha-Numeric Strings, length 1 to 19</xs:documentation>   </xs:annotation>   <xs:restriction base="xs:string">     <xs:pattern value="[0-9a-zA-Z]{1,19}"/>   </xs:restriction> </xs:simpleType>

simpleType AlphaNumericStringLength1to8

namespace	http://www.opentravel.org/OTA_RS/2003/05
type	restriction of xs:string
used by	attribute  RateQualifierCoreGroup/@CorpDiscountNmbr
facets	pattern  [0-9a-zA-Z]{1,8}
annotation	documentation Used for Alpha-Numeric Strings, length 1 to 8
source	<xs:simpleType name="AlphaNumericStringLength1to8">   <xs:annotation>     <xs:documentation xml:lang="en">Used for Alpha-Numeric Strings, length 1 to 8</xs:documentation>   </xs:annotation>   <xs:restriction base="xs:string">     <xs:pattern value="[0-9a-zA-Z]{1,8}"/>   </xs:restriction> </xs:simpleType>

simpleType DistanceUnitNameType

namespace	http://www.opentravel.org/OTA_RS/2003/05
type	restriction of xs:NMTOKEN
used by	simpleType  VehicleUnitNameType attribute  VehicleRateDistanceGroup/@DistUnitName
facets	enumeration  Mile enumeration  Km enumeration  Block
annotation	documentation This simple type defines a set of valid values for the units in which distance is measured (i.e. mile or kilometer).
source	<xs:simpleType name="DistanceUnitNameType">   <xs:annotation>     <xs:documentation xml:lang="en">This simple type defines a set of valid values for the units in which distance is measured (i.e. mile or kilometer).</xs:documentation>   </xs:annotation>   <xs:restriction base="xs:NMTOKEN">     <xs:enumeration value="Mile"/>     <xs:enumeration value="Km"/>     <xs:enumeration value="Block"/>   </xs:restriction> </xs:simpleType>

simpleType EquipmentRestrictionType

namespace	http://www.opentravel.org/OTA_RS/2003/05
type	restriction of xs:NMTOKEN
used by	attribute  VehicleEquipmentType/@Restriction
facets	enumeration  OneWayOnly enumeration  RoundTripOnly enumeration  AnyReservation
annotation	documentation The EquipmentRestrictionSimpleType simple type defines a set of valid values for the restrictions that may be placed upon special equipment included as part of the rental of a vehicle.  Some equipment is restricted to rentals that return to the same place, some equipment is restricted to one-way rentals, and some equipment has no restrictions.
source	<xs:simpleType name="EquipmentRestrictionType">   <xs:annotation>     <xs:documentation xml:lang="en">The EquipmentRestrictionSimpleType simple type defines a set of valid values for the restrictions that may be placed upon special equipment included as part of the rental of a vehicle.  Some equipment is restricted to rentals that return to the same place, some equipment is restricted to one-way rentals, and some equipment has no restrictions.</xs:documentation>   </xs:annotation>   <xs:restriction base="xs:NMTOKEN">     <xs:enumeration value="OneWayOnly"/>     <xs:enumeration value="RoundTripOnly"/>     <xs:enumeration value="AnyReservation"/>   </xs:restriction> </xs:simpleType>

simpleType MMYYDate

namespace	http://www.opentravel.org/OTA_RS/2003/05
type	restriction of xs:string
used by	attribute  PaymentCardDateGroup/@ExpireDate
facets	pattern  (0[1-9]|1[0-2])[0-9][0-9]
annotation	documentation Month and year information.
source	<xs:simpleType name="MMYYDate">   <xs:annotation>     <xs:documentation xml:lang="en">Month and year information.</xs:documentation>   </xs:annotation>   <xs:restriction base="xs:string">     <xs:pattern value="(0[1-9]|1[0-2])[0-9][0-9]"/>   </xs:restriction> </xs:simpleType>

simpleType Money

namespace	http://www.opentravel.org/OTA_RS/2003/05
type	restriction of xs:decimal
used by	attributes  CurrencyAmountGroup/@Amount VehicleChargeType/Calculation/@UnitCharge
facets	fractionDigits  3
annotation	documentation Used for amounts, max 3 decimals
source	<xs:simpleType name="Money">   <xs:annotation>     <xs:documentation xml:lang="en">Used for amounts, max 3 decimals</xs:documentation>   </xs:annotation>   <xs:restriction base="xs:decimal">     <xs:fractionDigits value="3"/>   </xs:restriction> </xs:simpleType>

simpleType Numeric1to99

namespace	http://www.opentravel.org/OTA_RS/2003/05
type	restriction of xs:integer
used by	attribute  VehicleResRSAdditionalInfoType/TPA_Extensions/WorldfileError/@Count
facets	minInclusive  1 maxInclusive  99
annotation	documentation Used for Numeric values, from 1 to 99 inclusive
source	<xs:simpleType name="Numeric1to99">   <xs:annotation>     <xs:documentation xml:lang="en">Used for Numeric values, from 1 to 99 inclusive</xs:documentation>   </xs:annotation>   <xs:restriction base="xs:integer">     <xs:minInclusive value="1"/>     <xs:maxInclusive value="99"/>   </xs:restriction> </xs:simpleType>

simpleType Numeric1to999

namespace	http://www.opentravel.org/OTA_RS/2003/05
type	restriction of xs:integer
used by	attribute  VehicleSegmentCoreType/@IndexNumber
facets	minInclusive  1 maxInclusive  999
annotation	documentation Used for Numeric values, from 1 to 999 inclusive.
source	<xs:simpleType name="Numeric1to999">   <xs:annotation>     <xs:documentation xml:lang="en">Used for Numeric values, from 1 to 999 inclusive.</xs:documentation>   </xs:annotation>   <xs:restriction base="xs:integer">     <xs:minInclusive value="1"/>     <xs:maxInclusive value="999"/>   </xs:restriction> </xs:simpleType>

simpleType NumericStringLength1to19

namespace	http://www.opentravel.org/OTA_RS/2003/05
type	restriction of xs:string
used by	attribute  PaymentCardType/@CardNumber
facets	pattern  [0-9]{1,19}
annotation	documentation Used for Numeric Strings, length 1 to 19.
source	<xs:simpleType name="NumericStringLength1to19">   <xs:annotation>     <xs:documentation xml:lang="en">Used for Numeric Strings, length 1 to 19.</xs:documentation>   </xs:annotation>   <xs:restriction base="xs:string">     <xs:pattern value="[0-9]{1,19}"/>   </xs:restriction> </xs:simpleType>

simpleType OffLocationServiceID_Type

namespace	http://www.opentravel.org/OTA_RS/2003/05
type	restriction of xs:NMTOKEN
used by	attribute  OffLocationServiceCoreType/@Type
facets	enumeration  CustPickUp enumeration  VehDelivery enumeration  CustDropOff enumeration  VehCollection enumeration  Exchange
annotation	documentation The OffLocationServiceType simple type defines a set of valid values for the services that do not occur at the rental facility.
source	<xs:simpleType name="OffLocationServiceID_Type">   <xs:annotation>     <xs:documentation xml:lang="en">The OffLocationServiceType simple type defines a set of valid values for the services that do not occur at the rental facility.</xs:documentation>   </xs:annotation>   <xs:restriction base="xs:NMTOKEN">     <xs:enumeration value="CustPickUp">       <xs:annotation>         <xs:documentation xml:lang="en">Indicates that the associated information describes an offered service by which the customer may be picked up and taken to the rental facility, to rent a vehicle.</xs:documentation>       </xs:annotation>     </xs:enumeration>     <xs:enumeration value="VehDelivery">       <xs:annotation>         <xs:documentation xml:lang="en">Indicates that the associated information describes an offered service by which the vehicle may be delivered to a location, rather than the customer taking delivery at the rental facility.</xs:documentation>       </xs:annotation>     </xs:enumeration>     <xs:enumeration value="CustDropOff">       <xs:annotation>         <xs:documentation xml:lang="en">Indicates that the associated information describes an offered service by which the customer may be dropped off at a location after the vehicle rental period has ended.</xs:documentation>       </xs:annotation>     </xs:enumeration>     <xs:enumeration value="VehCollection">       <xs:annotation>         <xs:documentation xml:lang="en">Indicates that the associated information describes an offered service by which the vehicle may be collected from a location, rather than the customer returning the vehicle to the rental facility.</xs:documentation>       </xs:annotation>     </xs:enumeration>     <xs:enumeration value="Exchange">       <xs:annotation>         <xs:documentation xml:lang="en">Indicates that the associated information describes an offered service by which the customer will be delivered the exchanged car.</xs:documentation>       </xs:annotation>     </xs:enumeration>   </xs:restriction> </xs:simpleType>

simpleType OTA_CodeType

namespace	http://www.opentravel.org/OTA_RS/2003/05
type	restriction of xs:string
used by	attributes  ErrorWarningAttributeGroup/@Code VehicleEquipmentCoreGroup/@EquipType VehicleWhereAtFacilityType/@Location TelephoneAttributesGroup/@PhoneTechType VehicleChargePurposeType/@Purpose RateQualifierCoreGroup/@RateCategory VehicleClassGroup/@Size ErrorType/@Type WarningType/@Type UniqueID_Group/@Type VehicleTypeGroup/@VehicleCategory
facets	pattern  [0-9A-Z]{1,3}(\.[A-Z]{3}(\.X){0,1}){0,1}
annotation	documentation Used for codes in the OTA code tables. Possible values of this pattern are 1, 101, 101.EQP, or 101.EQP.X.
source	<xs:simpleType name="OTA_CodeType">   <xs:annotation>     <xs:documentation xml:lang="en">Used for codes in the OTA code tables. Possible values of this pattern are 1, 101, 101.EQP, or 101.EQP.X.</xs:documentation>   </xs:annotation>   <xs:restriction base="xs:string">     <xs:pattern value="[0-9A-Z]{1,3}(\.[A-Z]{3}(\.X){0,1}){0,1}"/>   </xs:restriction> </xs:simpleType>

simpleType PaymentCardCodeType

namespace	http://www.opentravel.org/OTA_RS/2003/05
type	union of (restriction of UpperCaseAlphaLength1to2, UpperCaseAlphaLength1to2)
used by	attribute  PaymentCardType/@CardCode
annotation	documentation The 2 digit code used that references the credit card used.
source	<xs:simpleType name="PaymentCardCodeType">   <xs:annotation>     <xs:documentation xml:lang="en">The 2 digit code used that references the credit card used.</xs:documentation>   </xs:annotation>   <xs:union>     <xs:simpleType>       <xs:restriction base="UpperCaseAlphaLength1to2">         <xs:enumeration value="AX">           <xs:annotation>             <xs:documentation xml:lang="en"> American Express </xs:documentation>           </xs:annotation>         </xs:enumeration>         <xs:enumeration value="BC">           <xs:annotation>             <xs:documentation xml:lang="en"> Bank Card </xs:documentation>           </xs:annotation>         </xs:enumeration>         <xs:enumeration value="BL">           <xs:annotation>             <xs:documentation xml:lang="en"> Carte Bleu                  </xs:documentation>           </xs:annotation>         </xs:enumeration>         <xs:enumeration value="CB">           <xs:annotation>             <xs:documentation xml:lang="en"> Carte Blanche                  </xs:documentation>           </xs:annotation>         </xs:enumeration>         <xs:enumeration value="DN">           <xs:annotation>             <xs:documentation xml:lang="en"> Diners Club </xs:documentation>           </xs:annotation>         </xs:enumeration>         <xs:enumeration value="DS">           <xs:annotation>             <xs:documentation xml:lang="en"> Discover Card </xs:documentation>           </xs:annotation>         </xs:enumeration>         <xs:enumeration value="EC">           <xs:annotation>             <xs:documentation xml:lang="en"> Eurocard </xs:documentation>           </xs:annotation>         </xs:enumeration>         <xs:enumeration value="JC">           <xs:annotation>             <xs:documentation xml:lang="en"> Japanese Credit Bureau Credit Card </xs:documentation>           </xs:annotation>         </xs:enumeration>         <xs:enumeration value="MC">           <xs:annotation>             <xs:documentation xml:lang="en"> Master Card </xs:documentation>           </xs:annotation>         </xs:enumeration>         <xs:enumeration value="TP">           <xs:annotation>             <xs:documentation xml:lang="en"> Universal Air Travel Card </xs:documentation>           </xs:annotation>         </xs:enumeration>         <xs:enumeration value="VI">           <xs:annotation>             <xs:documentation xml:lang="en"> Visa </xs:documentation>           </xs:annotation>         </xs:enumeration>       </xs:restriction>     </xs:simpleType>     <xs:simpleType>       <xs:annotation>         <xs:documentation xml:lang="en">This is intended to be used when the above enumeration list does not meet your needs. </xs:documentation>       </xs:annotation>       <xs:restriction base="UpperCaseAlphaLength1to2"/>     </xs:simpleType>   </xs:union> </xs:simpleType>

simpleType RatePeriodSimpleType

namespace	http://www.opentravel.org/OTA_RS/2003/05
type	restriction of xs:NMTOKEN
used by	attributeGroup  RateQualifierCoreGroup
facets	enumeration  Hourly enumeration  Daily enumeration  Weekly enumeration  Monthly enumeration  WeekendDay enumeration  Other enumeration  Package enumeration  Bundle enumeration  Total
annotation	documentation The RatePeriodSimpleType simple type defines a set of valid values for the type of rate that may be applied.  Typically rates differ based upon the duration, and the actual rate is then expressed in terms of the period of the rental.
source	<xs:simpleType name="RatePeriodSimpleType">   <xs:annotation>     <xs:documentation xml:lang="en">The RatePeriodSimpleType simple type defines a set of valid values for the type of rate that may be applied.  Typically rates differ based upon the duration, and the actual rate is then expressed in terms of the period of the rental.</xs:documentation>   </xs:annotation>   <xs:restriction base="xs:NMTOKEN">     <xs:enumeration value="Hourly"/>     <xs:enumeration value="Daily"/>     <xs:enumeration value="Weekly"/>     <xs:enumeration value="Monthly"/>     <xs:enumeration value="WeekendDay"/>     <xs:enumeration value="Other"/>     <xs:enumeration value="Package">       <xs:annotation>         <xs:documentation xml:lang="en">The rate period is based on the package.</xs:documentation>       </xs:annotation>     </xs:enumeration>     <xs:enumeration value="Bundle">       <xs:annotation>         <xs:documentation xml:lang="en">The rate is the same regardless of the number of days the vehicle is rented</xs:documentation>       </xs:annotation>     </xs:enumeration>     <xs:enumeration value="Total">       <xs:annotation>         <xs:documentation xml:lang="en">The rate is the total, no specific rate period.</xs:documentation>       </xs:annotation>     </xs:enumeration>   </xs:restriction> </xs:simpleType>

simpleType StringLength0to128

namespace	http://www.opentravel.org/OTA_RS/2003/05
type	restriction of xs:string
used by	complexType  CompanyNameType
facets	minLength  0 maxLength  128
annotation	documentation Used for Character Strings, length 0 to 128
source	<xs:simpleType name="StringLength0to128">   <xs:annotation>     <xs:documentation xml:lang="en">Used for Character Strings, length 0 to 128</xs:documentation>   </xs:annotation>   <xs:restriction base="xs:string">     <xs:minLength value="0"/>     <xs:maxLength value="128"/>   </xs:restriction> </xs:simpleType>

simpleType StringLength0to255

namespace	http://www.opentravel.org/OTA_RS/2003/05
type	restriction of xs:string
used by	complexType  VehicleWhereAtFacilityType
facets	minLength  0 maxLength  255
annotation	documentation Used for Character Strings, length 0 to 255
source	<xs:simpleType name="StringLength0to255">   <xs:annotation>     <xs:documentation xml:lang="en">Used for Character Strings, length 0 to 255</xs:documentation>   </xs:annotation>   <xs:restriction base="xs:string">     <xs:minLength value="0"/>     <xs:maxLength value="255"/>   </xs:restriction> </xs:simpleType>

simpleType StringLength0to64

namespace	http://www.opentravel.org/OTA_RS/2003/05
type	restriction of xs:string
used by	attribute  DirectBillType/@BillingNumber
facets	minLength  0 maxLength  64
annotation	documentation Used for Character Strings, length 0 to 64
source	<xs:simpleType name="StringLength0to64">   <xs:annotation>     <xs:documentation xml:lang="en">Used for Character Strings, length 0 to 64</xs:documentation>   </xs:annotation>   <xs:restriction base="xs:string">     <xs:minLength value="0"/>     <xs:maxLength value="64"/>   </xs:restriction> </xs:simpleType>

simpleType StringLength1to128

namespace	http://www.opentravel.org/OTA_RS/2003/05
type	restriction of xs:string
used by	attribute  OffLocationServiceType/@SpecInstructions
facets	minLength  1 maxLength  128
annotation	documentation Used for Character Strings, length 1 to 128
source	<xs:simpleType name="StringLength1to128">   <xs:annotation>     <xs:documentation xml:lang="en">Used for Character Strings, length 1 to 128</xs:documentation>   </xs:annotation>   <xs:restriction base="xs:string">     <xs:minLength value="1"/>     <xs:maxLength value="128"/>   </xs:restriction> </xs:simpleType>

simpleType StringLength1to16

namespace	http://www.opentravel.org/OTA_RS/2003/05
type	restriction of xs:string
used by	attributes  CompanyID_AttributesGroup/@Code LocationGroup/@LocationCode CustomerLoyaltyGroup/@ProgramID VehicleTourInfoType/@TourNumber
facets	minLength  1 maxLength  16
annotation	documentation Used for Character Strings, length 1 to 16
source	<xs:simpleType name="StringLength1to16">   <xs:annotation>     <xs:documentation xml:lang="en">Used for Character Strings, length 1 to 16</xs:documentation>   </xs:annotation>   <xs:restriction base="xs:string">     <xs:minLength value="1"/>     <xs:maxLength value="16"/>   </xs:restriction> </xs:simpleType>

simpleType StringLength1to32

namespace	http://www.opentravel.org/OTA_RS/2003/05
type	restriction of xs:string
used by	attributes  DirectBillType/@DirectBill_ID ID_Group/@ID CustomerLoyaltyGroup/@MembershipID TelephoneAttributesGroup/@PhoneNumber PromotionCodeGroup/@PromotionCode RateQualifierCoreGroup/@RateQualifier VoucherGroup/@SeriesCode OTA_PayloadStdAttributes/@TransactionIdentifier
facets	minLength  1 maxLength  32
annotation	documentation Used for Character Strings, length 1 to 32
source	<xs:simpleType name="StringLength1to32">   <xs:annotation>     <xs:documentation xml:lang="en">Used for Character Strings, length 1 to 32</xs:documentation>   </xs:annotation>   <xs:restriction base="xs:string">     <xs:minLength value="1"/>     <xs:maxLength value="32"/>   </xs:restriction> </xs:simpleType>

simpleType StringLength1to64

namespace	http://www.opentravel.org/OTA_RS/2003/05
type	restriction of xs:string
used by	elements  PersonNameType/GivenName PersonNameType/Surname attributes  ParagraphType/@Name RateQualifierType/RateComments/RateComment/@Name
facets	minLength  1 maxLength  64
annotation	documentation Used for Character Strings, length 1 to 64
source	<xs:simpleType name="StringLength1to64">   <xs:annotation>     <xs:documentation xml:lang="en">Used for Character Strings, length 1 to 64</xs:documentation>   </xs:annotation>   <xs:restriction base="xs:string">     <xs:minLength value="1"/>     <xs:maxLength value="64"/>   </xs:restriction> </xs:simpleType>

simpleType StringLength1to8

namespace	http://www.opentravel.org/OTA_RS/2003/05
type	restriction of xs:string
used by	attributes  VehicleTypeGroup/@DoorCount VehicleRentalCoreType/PickUpLocation/@ExtendedLocationCode
facets	minLength  1 maxLength  8
annotation	documentation Used for Character Strings, length 1 to 8
source	<xs:simpleType name="StringLength1to8">   <xs:annotation>     <xs:documentation xml:lang="en">Used for Character Strings, length 1 to 8</xs:documentation>   </xs:annotation>   <xs:restriction base="xs:string">     <xs:minLength value="1"/>     <xs:maxLength value="8"/>   </xs:restriction> </xs:simpleType>

simpleType TransactionStatusType

namespace	http://www.opentravel.org/OTA_RS/2003/05
type	restriction of xs:string
used by	element  OTA_VehResRS/VehResRSCore
facets	enumeration  Pending enumeration  Cancelled enumeration  Modified enumeration  Committed enumeration  Ignored enumeration  On Hold enumeration  Unsuccessful
annotation	documentation To specify a status to the transaction, usually in the response message, of the action specifed in the request message.
source	<xs:simpleType name="TransactionStatusType">   <xs:annotation>     <xs:documentation xml:lang="en">To specify a status to the transaction, usually in the response message, of the action specifed in the request message. </xs:documentation>   </xs:annotation>   <xs:restriction base="xs:string">     <xs:enumeration value="Pending"/>     <xs:enumeration value="Cancelled"/>     <xs:enumeration value="Modified"/>     <xs:enumeration value="Committed"/>     <xs:enumeration value="Ignored"/>     <xs:enumeration value="On Hold"/>     <xs:enumeration value="Unsuccessful"/>   </xs:restriction> </xs:simpleType>

simpleType UpperCaseAlphaLength1to2

namespace	http://www.opentravel.org/OTA_RS/2003/05
type	restriction of xs:string
used by	element  OTA_VehResRS/VehResRSCore simpleTypes  PaymentCardCodeType PaymentCardCodeType
facets	pattern  [A-Z]{1,2}
annotation	documentation Used for an Alpha String, length 2 (for letter codes)
source	<xs:simpleType name="UpperCaseAlphaLength1to2">   <xs:annotation>     <xs:documentation xml:lang="en">Used for an Alpha String, length 2 (for letter codes)</xs:documentation>   </xs:annotation>   <xs:restriction base="xs:string">     <xs:pattern value="[A-Z]{1,2}"/>   </xs:restriction> </xs:simpleType>

simpleType VehicleFuelUnitNameType

namespace	http://www.opentravel.org/OTA_RS/2003/05
type	restriction of xs:NMTOKEN
used by	simpleType  VehicleUnitNameType
facets	enumeration  Gallon enumeration  Liter
annotation	documentation The VehicleFuelUnitNameSimpleType simple type defines a set of valid values for the units in which fuel is measured.  The rental of a vehicle may include a charge to provide fuel for the vehicle, expressed in Gallons or Liters.
source	<xs:simpleType name="VehicleFuelUnitNameType">   <xs:annotation>     <xs:documentation xml:lang="en">The VehicleFuelUnitNameSimpleType simple type defines a set of valid values for the units in which fuel is measured.  The rental of a vehicle may include a charge to provide fuel for the vehicle, expressed in Gallons or Liters. </xs:documentation>   </xs:annotation>   <xs:restriction base="xs:NMTOKEN">     <xs:enumeration value="Gallon"/>     <xs:enumeration value="Liter"/>   </xs:restriction> </xs:simpleType>

simpleType VehiclePeriodUnitNameType

namespace	http://www.opentravel.org/OTA_RS/2003/05
type	restriction of xs:NMTOKEN
used by	simpleType  VehicleUnitNameType
facets	enumeration  RentalPeriod enumeration  Year enumeration  Month enumeration  Week enumeration  Day enumeration  Hour enumeration  Weekend enumeration  Bundle enumeration  Package
annotation	documentation The VehiclePeriodUnitNameSimpleType simple type defines a set of valid values for a period of time that may be used as part of the reservation of a vehicle.  Examples of these valid values include day, hour, rental period for expressing the entire duration of the rental, etc.
source	<xs:simpleType name="VehiclePeriodUnitNameType">   <xs:annotation>     <xs:documentation xml:lang="en">The VehiclePeriodUnitNameSimpleType simple type defines a set of valid values for a period of time that may be used as part of the reservation of a vehicle.  Examples of these valid values include day, hour, rental period for expressing the entire duration of the rental, etc.</xs:documentation>   </xs:annotation>   <xs:restriction base="xs:NMTOKEN">     <xs:enumeration value="RentalPeriod"/>     <xs:enumeration value="Year"/>     <xs:enumeration value="Month"/>     <xs:enumeration value="Week"/>     <xs:enumeration value="Day"/>     <xs:enumeration value="Hour"/>     <xs:enumeration value="Weekend">       <xs:annotation>         <xs:documentation xml:lang="en">The calculation is for each weekend.</xs:documentation>       </xs:annotation>     </xs:enumeration>     <xs:enumeration value="Bundle">       <xs:annotation>         <xs:documentation xml:lang="en">The rate is the same regardless of the number of days the vehicle is rented.</xs:documentation>       </xs:annotation>     </xs:enumeration>     <xs:enumeration value="Package">       <xs:annotation>         <xs:documentation xml:lang="en">The charge is based on the package.</xs:documentation>       </xs:annotation>     </xs:enumeration>   </xs:restriction> </xs:simpleType>

simpleType VehicleTransmissionType

namespace	http://www.opentravel.org/OTA_RS/2003/05
type	restriction of xs:NMTOKEN
used by	attribute  VehicleCoreType/@TransmissionType
facets	enumeration  Automatic enumeration  Manual
annotation	documentation The VehicleTransmissionSimpleType simple type defines a set of valid values for the transmission type of a vehicle.  The valid values are automatic and manual.  Use of this attribute can help in describing a vehicle.
source	<xs:simpleType name="VehicleTransmissionType">   <xs:annotation>     <xs:documentation xml:lang="en">The VehicleTransmissionSimpleType simple type defines a set of valid values for the transmission type of a vehicle.  The valid values are automatic and manual.  Use of this attribute can help in describing a vehicle.</xs:documentation>   </xs:annotation>   <xs:restriction base="xs:NMTOKEN">     <xs:enumeration value="Automatic"/>     <xs:enumeration value="Manual"/>   </xs:restriction> </xs:simpleType>

simpleType VehicleUnitNameType

namespace	http://www.opentravel.org/OTA_RS/2003/05
type	union of (VehiclePeriodUnitNameType, VehicleFuelUnitNameType, DistanceUnitNameType)
used by	attribute  VehicleChargeType/Calculation/@UnitName
annotation	documentation The VehicleUnitNameSimpleType simple type defines a set of valid values for the units on which an item charge may be based when renting a vehicle.  For example, there may be a charge which is based upon the number of days, another charge that is based upon the numbers of miles, a charge that is based upon the number of gallons, etc.
source	<xs:simpleType name="VehicleUnitNameType">   <xs:annotation>     <xs:documentation xml:lang="en">The VehicleUnitNameSimpleType simple type defines a set of valid values for the units on which an item charge may be based when renting a vehicle.  For example, there may be a charge which is based upon the number of days, another charge that is based upon the numbers of miles, a charge that is based upon the number of gallons, etc.  </xs:documentation>   </xs:annotation>   <xs:union memberTypes="VehiclePeriodUnitNameType VehicleFuelUnitNameType DistanceUnitNameType"/> </xs:simpleType>

attributeGroup CompanyID_AttributesGroup

namespace	http://www.opentravel.org/OTA_RS/2003/05
used by	complexType  CompanyNameType
attributes	Name   Type   Use   Default   Fixed   Annotation Code StringLength1to16 optional         documentation Identifies a company by the company code.
annotation	documentation Provides meaning to a company code.
source	<xs:attributeGroup name="CompanyID_AttributesGroup">   <xs:annotation>     <xs:documentation xml:lang="en">Provides meaning to a company code.</xs:documentation>   </xs:annotation>   <xs:attribute name="Code" type="StringLength1to16" use="optional">     <xs:annotation>       <xs:documentation xml:lang="en">Identifies a company by the company code.</xs:documentation>     </xs:annotation>   </xs:attribute> </xs:attributeGroup>

attributeGroup CurrencyAmountGroup

namespace	http://www.opentravel.org/OTA_RS/2003/05
used by	element  PaymentDetailType/PaymentAmount complexType  VehicleChargeType
attributes	Name   Type   Use   Default   Fixed   Annotation Amount Money optional         CurrencyCode AlphaLength3 optional         documentation The code specifying a monetary unit. Use ISO 4217, three alpha code.
annotation	documentation Provides a monetary amount and the currency code to reflect the currency in which this amount is expressed.
source	<xs:attributeGroup name="CurrencyAmountGroup">   <xs:annotation>     <xs:documentation xml:lang="en">Provides a monetary amount and the currency code to reflect the currency in which this amount is expressed.</xs:documentation>   </xs:annotation>   <xs:attribute name="Amount" type="Money" use="optional"/>   <xs:attributeGroup ref="CurrencyCodeGroup">     <xs:annotation>       <xs:documentation xml:lang="en">Provides a currency code to reflect the currency in which an amount may be expressed as well as the number of decimal places of that currency.</xs:documentation>     </xs:annotation>   </xs:attributeGroup> </xs:attributeGroup>

attributeGroup CurrencyCodeGroup

namespace	http://www.opentravel.org/OTA_RS/2003/05
used by	attributeGroup  CurrencyAmountGroup
attributes	Name   Type   Use   Default   Fixed   Annotation CurrencyCode AlphaLength3 optional         documentation The code specifying a monetary unit. Use ISO 4217, three alpha code.
annotation	documentation Provides a currency code to reflect the currency in which an amount may be expressed.
source	<xs:attributeGroup name="CurrencyCodeGroup">   <xs:annotation>     <xs:documentation xml:lang="en">Provides a currency code to reflect the currency in which an amount may be expressed.</xs:documentation>   </xs:annotation>   <xs:attribute name="CurrencyCode" type="AlphaLength3" use="optional">     <xs:annotation>       <xs:documentation xml:lang="en">The code specifying a monetary unit. Use ISO 4217, three alpha code.</xs:documentation>     </xs:annotation>   </xs:attribute> </xs:attributeGroup>

attributeGroup CustomerLoyaltyGroup

namespace	http://www.opentravel.org/OTA_RS/2003/05
used by	element  CustomerType/CustLoyalty
attributes	Name   Type   Use   Default   Fixed   Annotation ProgramID StringLength1to16          documentation Identifier to indicate the company owner of the loyalty program. MembershipID StringLength1to32          documentation Unique identifier of the member in the program (membership number, account number, etc.).
annotation	documentation Program rewarding frequent use by accumulating credits for services provided by vendors.
source	<xs:attributeGroup name="CustomerLoyaltyGroup">   <xs:annotation>     <xs:documentation xml:lang="en">Program rewarding frequent use by accumulating credits for services provided by vendors.</xs:documentation>   </xs:annotation>   <xs:attribute name="ProgramID" type="StringLength1to16">     <xs:annotation>       <xs:documentation xml:lang="en">Identifier to indicate the company owner of the loyalty program.</xs:documentation>     </xs:annotation>   </xs:attribute>   <xs:attribute name="MembershipID" type="StringLength1to32">     <xs:annotation>       <xs:documentation xml:lang="en">Unique identifier of the member in the program (membership number, account number, etc.).</xs:documentation>     </xs:annotation>   </xs:attribute> </xs:attributeGroup>

attributeGroup ErrorWarningAttributeGroup

namespace	http://www.opentravel.org/OTA_RS/2003/05
used by	complexTypes  ErrorType WarningType
attributes	Name   Type   Use   Default   Fixed   Annotation Code OTA_CodeType optional         documentation If present, this refers to a table of coded values exchanged between applications to identify errors or warnings. Refer to OTA Code List Error Codes (ERR).
annotation	documentation Used to identify an application error by either text, code, or by an online description and also to give the status, tag, and/or identification of the record that may have caused the error.
source	<xs:attributeGroup name="ErrorWarningAttributeGroup">   <xs:annotation>     <xs:documentation xml:lang="en">Used to identify an application error by either text, code, or by an online description and also to give the status, tag, and/or identification of the record that may have caused the error.</xs:documentation>   </xs:annotation>   <xs:attribute name="Code" type="OTA_CodeType" use="optional">     <xs:annotation>       <xs:documentation xml:lang="en">If present, this refers to a table of coded values exchanged between applications to identify errors or warnings. Refer to OTA Code List Error Codes (ERR).</xs:documentation>     </xs:annotation>   </xs:attribute> </xs:attributeGroup>

attributeGroup ID_Group

namespace	http://www.opentravel.org/OTA_RS/2003/05
used by	attributeGroup  UniqueID_Group
attributes	Name   Type   Use   Default   Fixed   Annotation ID StringLength1to32 required         documentation A unique identifying value assigned by the creating system.  The ID attribute may be used to reference a primary-key value within a database or in a particular implementation.
annotation	documentation Used to provide a required unique identifier.
source	<xs:attributeGroup name="ID_Group">   <xs:annotation>     <xs:documentation xml:lang="en">Used to provide a required unique identifier.</xs:documentation>   </xs:annotation>   <xs:attribute name="ID" type="StringLength1to32" use="required">     <xs:annotation>       <xs:documentation xml:lang="en">A unique identifying value assigned by the creating system.  The ID attribute may be used to reference a primary-key value within a database or in a particular implementation.</xs:documentation>     </xs:annotation>   </xs:attribute> </xs:attributeGroup>

attributeGroup LocationGroup

namespace	http://www.opentravel.org/OTA_RS/2003/05
used by	complexType  LocationType
attributes	Name   Type   Use   Default   Fixed   Annotation LocationCode StringLength1to16 optional         documentation Code used to identify a location.
annotation	documentation Code and optional string to describe a location point.
source	<xs:attributeGroup name="LocationGroup">   <xs:annotation>     <xs:documentation xml:lang="en">Code and optional string to describe a location point.</xs:documentation>   </xs:annotation>   <xs:attribute name="LocationCode" type="StringLength1to16" use="optional">     <xs:annotation>       <xs:documentation xml:lang="en">Code used to identify a location.</xs:documentation>     </xs:annotation>   </xs:attribute> </xs:attributeGroup>

attributeGroup OTA_PayloadStdAttributes

namespace	http://www.opentravel.org/OTA_RS/2003/05
used by	element  OTA_VehResRS
attributes	Name   Type   Use   Default   Fixed   Annotation Version xs:decimal required         documentation For all OTA versioned messages, the version of the message is indicated by a decimal value. TransactionIdentifier StringLength1to32 optional         documentation A unique identifier to relate all messages within a transaction (e.g. this would be sent in all request and response messages that are part of an on-going transaction).
annotation	documentation The OTA_PayloadStdAttributes defines the standard attributes that appear on the root element for all OTA payloads.
source	<xs:attributeGroup name="OTA_PayloadStdAttributes">   <xs:annotation>     <xs:documentation xml:lang="en">The OTA_PayloadStdAttributes defines the standard attributes that appear on the root element for all OTA payloads.</xs:documentation>   </xs:annotation>   <xs:attribute name="Version" type="xs:decimal" use="required">     <xs:annotation>       <xs:documentation xml:lang="en">For all OTA versioned messages, the version of the message is indicated by a decimal value.</xs:documentation>     </xs:annotation>   </xs:attribute>   <xs:attribute name="TransactionIdentifier" type="StringLength1to32" use="optional">     <xs:annotation>       <xs:documentation xml:lang="en">A unique identifier to relate all messages within a transaction (e.g. this would be sent in all request and response messages that are part of an on-going transaction).</xs:documentation>     </xs:annotation>   </xs:attribute> </xs:attributeGroup>

attributeGroup PaymentCardDateGroup

namespace	http://www.opentravel.org/OTA_RS/2003/05
used by	complexType  PaymentCardType
attributes	Name   Type   Use   Default   Fixed   Annotation ExpireDate MMYYDate optional         documentation Indicates the ending date.
annotation	documentation Indicates the start and end date for a payment card.
source	<xs:attributeGroup name="PaymentCardDateGroup">   <xs:annotation>     <xs:documentation xml:lang="en">Indicates the start and end date for a payment card.</xs:documentation>   </xs:annotation>   <xs:attribute name="ExpireDate" type="MMYYDate" use="optional">     <xs:annotation>       <xs:documentation xml:lang="en">Indicates the ending date.</xs:documentation>     </xs:annotation>   </xs:attribute> </xs:attributeGroup>

attributeGroup PromotionCodeGroup

namespace	http://www.opentravel.org/OTA_RS/2003/05
used by	attributeGroup  RateQualifierCoreGroup
attributes	Name   Type   Use   Default   Fixed   Annotation PromotionCode StringLength1to32 optional         documentation Promotion code is the identifier used by the host to link directly with a specific named advertising campaign. By including the required code, the client is able to gain access to special offers which may have been created for a specifically targeted group via a CRM system or for a wider advertising campaign using Television or press adverts.
annotation	documentation Used to provide a promotion code.
source	<xs:attributeGroup name="PromotionCodeGroup">   <xs:annotation>     <xs:documentation xml:lang="en">Used to provide a promotion code.</xs:documentation>   </xs:annotation>   <xs:attribute name="PromotionCode" type="StringLength1to32" use="optional">     <xs:annotation>       <xs:documentation xml:lang="en">Promotion code is the identifier used by the host to link directly with a specific named advertising campaign. By including the required code, the client is able to gain access to special offers which may have been created for a specifically targeted group via a CRM system or for a wider advertising campaign using Television or press adverts.</xs:documentation>     </xs:annotation>   </xs:attribute> </xs:attributeGroup>

attributeGroup RateQualifierCoreGroup

namespace	http://www.opentravel.org/OTA_RS/2003/05
used by	complexType  RateQualifierType
attributes	Name   Type   Use   Default   Fixed   Annotation RateCategory OTA_CodeType optional         documentation The RateCategory attribute defines a set of valid values for the category of a rate.  Typically rates are offered as either Leisure rates or Business (Corporate) rates, with a business rate usually including additional costs such as the cost of insurance, etc.  This set of values defines the rate categories. Refer to OTA Code List Rate Category(RTC). CorpDiscountNmbr AlphaNumericStringLength1to8 optional         documentation This is the vendor specific code used to identify a special rate associated with a specific organization. PromotionCode StringLength1to32 optional         documentation Promotion code is the identifier used by the host to link directly with a specific named advertising campaign. By including the required code, the client is able to gain access to special offers which may have been created for a specifically targeted group via a CRM system or for a wider advertising campaign using Television or press adverts. RateQualifier StringLength1to32 optional         documentation This is the vendor specific code for rate codes (e.g. WES, 2A, DLY00). RatePeriod derived by: RatePeriodSimpleType optional         documentation The RatePeriod attribute defines the type of rate that may be applied.  For example, typically car rental rates differ based upon the duration of the rental, and the actual rate is then expressed in terms of the period of the rental. GuaranteedInd xs:boolean optional         documentation When true, only guaranteed rates should be returned.  When false, all rates should be returned
annotation	documentation Defines the rate information that is common to all transactions.  Such information may include rate codes, rate type, promotional codes, etc.  This information may be used to determine the rate that is made available.
source	<xs:attributeGroup name="RateQualifierCoreGroup">   <xs:annotation>     <xs:documentation xml:lang="en">Defines the rate information that is common to all transactions.  Such information may include rate codes, rate type, promotional codes, etc.  This information may be used to determine the rate that is made available.</xs:documentation>   </xs:annotation>   <xs:attribute name="RateCategory" type="OTA_CodeType" use="optional">     <xs:annotation>       <xs:documentation xml:lang="en">The RateCategory attribute defines a set of valid values for the category of a rate.  Typically rates are offered as either Leisure rates or Business (Corporate) rates, with a business rate usually including additional costs such as the cost of insurance, etc.  This set of values defines the rate categories. Refer to OTA Code List Rate Category(RTC).</xs:documentation>     </xs:annotation>   </xs:attribute>   <xs:attribute name="CorpDiscountNmbr" type="AlphaNumericStringLength1to8" use="optional">     <xs:annotation>       <xs:documentation xml:lang="en">This is the vendor specific code used to identify a special rate associated with a specific organization.</xs:documentation>     </xs:annotation>   </xs:attribute>   <xs:attributeGroup ref="PromotionCodeGroup">     <xs:annotation>       <xs:documentation xml:lang="en">Promotion code is the identifier used by the host to link directly with a specific named advertising campaign. By including the required code, the client is able to gain access to special offers which may have been created for a specifically targeted group via a CRM system or for a wider advertising campaign using Television or press adverts.</xs:documentation>     </xs:annotation>   </xs:attributeGroup>   <xs:attribute name="RateQualifier" type="StringLength1to32" use="optional">     <xs:annotation>       <xs:documentation xml:lang="en">This is the vendor specific code for rate codes (e.g. WES, 2A, DLY00).</xs:documentation>     </xs:annotation>   </xs:attribute>   <xs:attribute name="RatePeriod" use="optional">     <xs:annotation>       <xs:documentation xml:lang="en">The RatePeriod attribute defines the type of rate that may be applied.  For example, typically car rental rates differ based upon the duration of the rental, and the actual rate is then expressed in terms of the period of the rental.</xs:documentation>     </xs:annotation>     <xs:simpleType>       <xs:restriction base="RatePeriodSimpleType"/>     </xs:simpleType>   </xs:attribute>   <xs:attribute name="GuaranteedInd" type="xs:boolean" use="optional">     <xs:annotation>       <xs:documentation xml:lang="en">When true, only guaranteed rates should be returned.  When false, all rates should be returned</xs:documentation>     </xs:annotation>   </xs:attribute> </xs:attributeGroup>

attributeGroup TelephoneAttributesGroup

namespace	http://www.opentravel.org/OTA_RS/2003/05
used by	attributeGroup  TelephoneGroup
attributes	Name   Type   Use   Default   Fixed   Annotation PhoneTechType OTA_CodeType optional         documentation Indicates type of technology associated with this telephone number, such as Voice, Data, Fax, Pager, Mobile, TTY, etc. Refer to OTA Code List Phone Technology Type (PTT). PhoneNumber StringLength1to32 required         documentation Telephone number assigned to a single location.
annotation	documentation Provides telephone information details.
source	<xs:attributeGroup name="TelephoneAttributesGroup">   <xs:annotation>     <xs:documentation xml:lang="en">Provides telephone information details.</xs:documentation>   </xs:annotation>   <xs:attribute name="PhoneTechType" type="OTA_CodeType" use="optional">     <xs:annotation>       <xs:documentation xml:lang="en">Indicates type of technology associated with this telephone number, such as Voice, Data, Fax, Pager, Mobile, TTY, etc. Refer to OTA Code List Phone Technology Type (PTT).</xs:documentation>     </xs:annotation>   </xs:attribute>   <xs:attribute name="PhoneNumber" type="StringLength1to32" use="required">     <xs:annotation>       <xs:documentation xml:lang="en">Telephone number assigned to a single location.</xs:documentation>     </xs:annotation>   </xs:attribute> </xs:attributeGroup>

attributeGroup TelephoneGroup

namespace	http://www.opentravel.org/OTA_RS/2003/05
used by	attributeGroup  TelephoneInfoGroup
attributes	Name   Type   Use   Default   Fixed   Annotation PhoneTechType OTA_CodeType optional         documentation Indicates type of technology associated with this telephone number, such as Voice, Data, Fax, Pager, Mobile, TTY, etc. Refer to OTA Code List Phone Technology Type (PTT). PhoneNumber StringLength1to32 required         documentation Telephone number assigned to a single location.
annotation	documentation Construct for holding a telephone number.
source	<xs:attributeGroup name="TelephoneGroup">   <xs:annotation>     <xs:documentation xml:lang="en">Construct for holding a telephone number.</xs:documentation>   </xs:annotation>   <xs:attributeGroup ref="TelephoneAttributesGroup"/> </xs:attributeGroup>

attributeGroup TelephoneInfoGroup

namespace	http://www.opentravel.org/OTA_RS/2003/05
used by	element  VehicleLocationDetailsType/Telephone
attributes	Name   Type   Use   Default   Fixed   Annotation PhoneTechType OTA_CodeType optional         documentation Indicates type of technology associated with this telephone number, such as Voice, Data, Fax, Pager, Mobile, TTY, etc. Refer to OTA Code List Phone Technology Type (PTT). PhoneNumber StringLength1to32 required         documentation Telephone number assigned to a single location.
annotation	documentation Information about a telephone number, including the actual number and its usage
source	<xs:attributeGroup name="TelephoneInfoGroup">   <xs:annotation>     <xs:documentation xml:lang="en">Information about a telephone number, including the actual number and its usage</xs:documentation>   </xs:annotation>   <xs:attributeGroup ref="TelephoneGroup"/> </xs:attributeGroup>

attributeGroup UniqueID_Group

namespace	http://www.opentravel.org/OTA_RS/2003/05
used by	complexType  UniqueID_Type
attributes	Name   Type   Use   Default   Fixed   Annotation Type OTA_CodeType required         documentation A reference to the type of object defined by the UniqueID element. Refer to OTA Code List Unique ID Type (UIT). ID StringLength1to32 required         documentation A unique identifying value assigned by the creating system.  The ID attribute may be used to reference a primary-key value within a database or in a particular implementation.
annotation	documentation Provides unique identification information.
source	<xs:attributeGroup name="UniqueID_Group">   <xs:annotation>     <xs:documentation xml:lang="en">Provides unique identification information.</xs:documentation>   </xs:annotation>   <xs:attribute name="Type" type="OTA_CodeType" use="required">     <xs:annotation>       <xs:documentation xml:lang="en">A reference to the type of object defined by the UniqueID element. Refer to OTA Code List Unique ID Type (UIT).</xs:documentation>     </xs:annotation>   </xs:attribute>   <xs:attributeGroup ref="ID_Group"/> </xs:attributeGroup>

attributeGroup VehicleClassGroup

namespace	http://www.opentravel.org/OTA_RS/2003/05
used by	element  VehicleCoreType/VehClass
attributes	Name   Type   Use   Default   Fixed   Annotation Size OTA_CodeType required         documentation The Size attribute identifies the size of a vehicle. Refer to OTA Code List Size (SIZ).
annotation	documentation The VehicleClassType complex type defines what is referred to as the class of vehicle.  Within a type of vehicle (for example, within the type "Car") there is still a wide range of different vehicles.  A class of vehicle is used to define that specific vehicle within the broader range of the vehicle in that same vehicle type.  Use of vehicle class in conjunction with a vehicle type aids in clarifying a request and aids in describing a specific vehicle.  A vehicle class is currently defined as just the size of the vehicle.
source	<xs:attributeGroup name="VehicleClassGroup">   <xs:annotation>     <xs:documentation xml:lang="en">The VehicleClassType complex type defines what is referred to as the class of vehicle.  Within a type of vehicle (for example, within the type "Car") there is still a wide range of different vehicles.  A class of vehicle is used to define that specific vehicle within the broader range of the vehicle in that same vehicle type.  Use of vehicle class in conjunction with a vehicle type aids in clarifying a request and aids in describing a specific vehicle.  A vehicle class is currently defined as just the size of the vehicle.</xs:documentation>   </xs:annotation>   <xs:attribute name="Size" type="OTA_CodeType" use="required">     <xs:annotation>       <xs:documentation xml:lang="en">The Size attribute identifies the size of a vehicle. Refer to OTA Code List Size (SIZ).</xs:documentation>     </xs:annotation>   </xs:attribute> </xs:attributeGroup>

attributeGroup VehicleEquipmentCoreGroup

namespace	http://www.opentravel.org/OTA_RS/2003/05
used by	complexType  VehicleEquipmentType
attributes	Name   Type   Use   Default   Fixed   Annotation EquipType OTA_CodeType required         documentation Identifies the specific type of special equipment. 1-Mobile phone (PHN) 2-Bike rack (BYC) 3-Luggage rack (LUG) 5-Trailer hitch (TRH) 7-Infant child seat CSI 8-Child toddler seat (CST) 10-Snow chains (SNO) 11-Hand control right (HCR) 12-Hand control left (HCL) 13-Navigational system (NVS) 31-Citizen band radio (CBR) 32-Computerized directions (CDD) 33-FM radio (FMR) 34-Navigational phone (NVP) 35-Ski rental (SKI) 36-Ski equipped (SKV) 37-Cassette player (TAP) 38-Television(TVI) Quantity xs:positiveInteger optional
annotation	documentation The VehicleEquipmentCoreType complex type identifies the core data that descrbes a piece of special equipment in association with the renting of a vehicle.
source	<xs:attributeGroup name="VehicleEquipmentCoreGroup">   <xs:annotation>     <xs:documentation xml:lang="en">The VehicleEquipmentCoreType complex type identifies the core data that descrbes a piece of special equipment in association with the renting of a vehicle.</xs:documentation>   </xs:annotation>   <xs:attribute name="EquipType" type="OTA_CodeType" use="required">     <xs:annotation>       <xs:documentation xml:lang="en">Identifies the specific type of special equipment. 1-Mobile phone (PHN) 2-Bike rack (BYC) 3-Luggage rack (LUG) 5-Trailer hitch (TRH) 7-Infant child seat CSI 8-Child toddler seat (CST) 10-Snow chains (SNO) 11-Hand control right (HCR) 12-Hand control left (HCL) 13-Navigational system (NVS) 31-Citizen band radio (CBR) 32-Computerized directions (CDD) 33-FM radio (FMR) 34-Navigational phone (NVP) 35-Ski rental (SKI) 36-Ski equipped (SKV) 37-Cassette player (TAP) 38-Television(TVI) </xs:documentation>     </xs:annotation>   </xs:attribute>   <xs:attribute name="Quantity" type="xs:positiveInteger" use="optional"/> </xs:attributeGroup>

attributeGroup VehicleRateDistanceGroup

namespace	http://www.opentravel.org/OTA_RS/2003/05
used by	element  VehicleRentalRateType/RateDistance
attributes	Name   Type   Use   Default   Fixed   Annotation Unlimited xs:boolean required         documentation When true there is no mileage/kilometer restriction. Quantity xs:nonNegativeInteger optional         documentation Provides the number of miles/kilometers included, typically used when Unlimited is false. DistUnitName DistanceUnitNameType optional         documentation Provides the units in which distance is measured, when applied to the rental of a vehicle (i.e., miles or kilometers).
annotation	documentation Provides information on a distance associated with a particular rate (e.g., the distance may be  expressed as Unlimited miles per rental period or 200 miles per day).
source	<xs:attributeGroup name="VehicleRateDistanceGroup">   <xs:annotation>     <xs:documentation xml:lang="en">Provides information on a distance associated with a particular rate (e.g., the distance may be  expressed as Unlimited miles per rental period or 200 miles per day).</xs:documentation>   </xs:annotation>   <xs:attribute name="Unlimited" type="xs:boolean" use="required">     <xs:annotation>       <xs:documentation xml:lang="en">When true there is no mileage/kilometer restriction.</xs:documentation>     </xs:annotation>   </xs:attribute>   <xs:attribute name="Quantity" type="xs:nonNegativeInteger" use="optional">     <xs:annotation>       <xs:documentation xml:lang="en">Provides the number of miles/kilometers included, typically used when Unlimited is false.</xs:documentation>     </xs:annotation>   </xs:attribute>   <xs:attribute name="DistUnitName" type="DistanceUnitNameType" use="optional">     <xs:annotation>       <xs:documentation xml:lang="en">Provides the units in which distance is measured, when applied to the rental of a vehicle (i.e., miles or kilometers).</xs:documentation>     </xs:annotation>   </xs:attribute> </xs:attributeGroup>

attributeGroup VehicleTypeGroup

namespace	http://www.opentravel.org/OTA_RS/2003/05
used by	element  VehicleCoreType/VehType
attributes	Name   Type   Use   Default   Fixed   Annotation VehicleCategory OTA_CodeType required         documentation The VehicleCategory attribute provides the catgeory of a vehicle.  Refer to OTA Code List Vehicle Category (VEC). DoorCount StringLength1to8 optional         documentation The number of doors on a vehicle.  This may be an exact number or a range, i.e. 2-4.
annotation	documentation The VehicleTypeType complex type defines what is referred to as the type of vehicle.  The range of vehicles is divided into types to aid in clarifying a request and to aid in describing a specific vehicle.  A vehicle type is defined to be the combination of the vehicle category (Car, Truck, etc) and the number of doors on that vehicle.
source	<xs:attributeGroup name="VehicleTypeGroup">   <xs:annotation>     <xs:documentation xml:lang="en">The VehicleTypeType complex type defines what is referred to as the type of vehicle.  The range of vehicles is divided into types to aid in clarifying a request and to aid in describing a specific vehicle.  A vehicle type is defined to be the combination of the vehicle category (Car, Truck, etc) and the number of doors on that vehicle. </xs:documentation>   </xs:annotation>   <xs:attribute name="VehicleCategory" type="OTA_CodeType" use="required">     <xs:annotation>       <xs:documentation xml:lang="en">The VehicleCategory attribute provides the catgeory of a vehicle.  Refer to OTA Code List Vehicle Category (VEC). </xs:documentation>     </xs:annotation>   </xs:attribute>   <xs:attribute name="DoorCount" type="StringLength1to8" use="optional">     <xs:annotation>       <xs:documentation xml:lang="en">The number of doors on a vehicle.  This may be an exact number or a range, i.e. 2-4. </xs:documentation>     </xs:annotation>   </xs:attribute> </xs:attributeGroup>

attributeGroup VoucherGroup

namespace	http://www.opentravel.org/OTA_RS/2003/05
used by	element  PaymentFormType/Voucher
attributes	Name   Type   Use   Default   Fixed   Annotation SeriesCode StringLength1to32          documentation Identification of a series of coupons or vouchers identified by serial number(s).
annotation	documentation A form of payment using a voucher or coupon.
source	<xs:attributeGroup name="VoucherGroup">   <xs:annotation>     <xs:documentation xml:lang="en">A form of payment using a voucher or coupon.</xs:documentation>   </xs:annotation>   <xs:attribute name="SeriesCode" type="StringLength1to32">     <xs:annotation>       <xs:documentation xml:lang="en">Identification of a series of coupons or vouchers identified by serial number(s).</xs:documentation>     </xs:annotation>   </xs:attribute> </xs:attributeGroup>
