Schema OTA_CancelRS.xsd

schema location:	http://xmlprosdk.wspan.com/msgdoc/wsdl/OTA_AirRulesRS.xsd
attribute form default:
element form default:	qualified
targetNamespace:	http://www.opentravel.org/OTA_RS/2003/05

Elements	Complex types	Simple types	Attr. groups
OTA_CancelRS	ErrorsType	OTA_CodeType	ErrorWarningAttributeGroup
TPA_Extensions	ErrorType	StringLength1to32	ID_Group
	FreeTextType	StringLength1to64	LanguageGroup
	SuccessType	TransactionStatusType	OTA_PayloadStdAttributes
	TPA_Extensions_Type		UniqueID_Group
	UniqueID_Type
	WarningsType
	WarningType

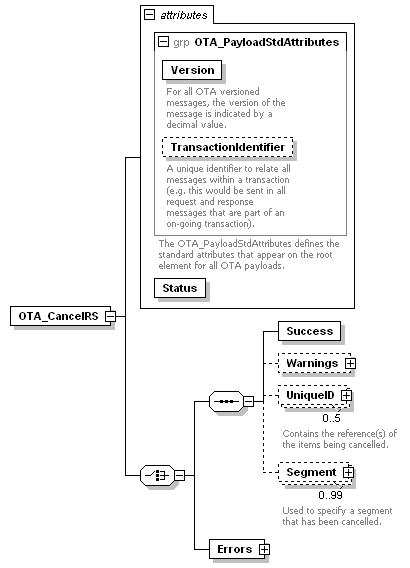

element OTA_CancelRS

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
properties	content  complex
children	Success Warnings UniqueID Segment Errors
attributes	Name   Type   Use   Default   Fixed   Annotation Version   xs:decimal required         documentation For all OTA versioned messages, the version of the message is indicated by a decimal value. TransactionIdentifier   StringLength1to32 optional         documentation A unique identifier to relate all messages within a transaction (e.g. this would be sent in all request and response messages that are part of an on-going transaction). Status   TransactionStatusType required
source	<xs:element name="OTA_CancelRS">   <xs:complexType>     <xs:choice>       <xs:sequence>         <xs:element name="Success" type="SuccessType"/>         <xs:element name="Warnings" type="WarningsType" minOccurs="0"/>         <xs:element name="UniqueID" type="UniqueID_Type" minOccurs="0" maxOccurs="5">           <xs:annotation>             <xs:documentation xml:lang="en">Contains the reference(s) of the items being cancelled.</xs:documentation>           </xs:annotation>         </xs:element>         <xs:element name="Segment" minOccurs="0" maxOccurs="99">           <xs:annotation>             <xs:documentation xml:lang="en">Used to specify a segment that has been cancelled.</xs:documentation>           </xs:annotation>           <xs:complexType>             <xs:sequence>               <xs:element name="UniqueID" type="UniqueID_Type" minOccurs="0" maxOccurs="2">                 <xs:annotation>                   <xs:documentation xml:lang="en">Contains the supplier's cancellation or confirmation number.</xs:documentation>                 </xs:annotation>               </xs:element>               <xs:element name="Warnings" type="WarningsType" minOccurs="0">                 <xs:annotation>                   <xs:documentation xml:lang="en">Warning information for the segment that was requested to be cancelled.</xs:documentation>                 </xs:annotation>               </xs:element>             </xs:sequence>             <xs:attribute name="ItinSegNbr" type="xs:nonNegativeInteger" use="optional">               <xs:annotation>                 <xs:documentation xml:lang="en">Number identifying the segment item that was cancelled.</xs:documentation>               </xs:annotation>             </xs:attribute>           </xs:complexType>         </xs:element>       </xs:sequence>       <xs:element name="Errors" type="ErrorsType"/>     </xs:choice>     <xs:attributeGroup ref="OTA_PayloadStdAttributes"/>     <xs:attribute name="Status" type="TransactionStatusType" use="required"/>   </xs:complexType> </xs:element>

element OTA_CancelRS/Success

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
type	SuccessType
properties	isRef  0 content  complex
source	<xs:element name="Success" type="SuccessType"/>

element OTA_CancelRS/Warnings

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
type	WarningsType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	Warning
source	<xs:element name="Warnings" type="WarningsType" minOccurs="0"/>

element OTA_CancelRS/UniqueID

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
type	UniqueID_Type
properties	isRef  0 minOcc  0 maxOcc  5 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation Type   OTA_CodeType required         documentation A reference to the type of object defined by the UniqueID element. Refer to OTA Code List Unique ID Type (UIT). ID   StringLength1to32 required         documentation A unique identifying value assigned by the creating system.  The ID attribute may be used to reference a primary-key value within a database or in a particular implementation.
annotation	documentation Contains the reference(s) of the items being cancelled.
source	<xs:element name="UniqueID" type="UniqueID_Type" minOccurs="0" maxOccurs="5">   <xs:annotation>     <xs:documentation xml:lang="en">Contains the reference(s) of the items being cancelled.</xs:documentation>   </xs:annotation> </xs:element>

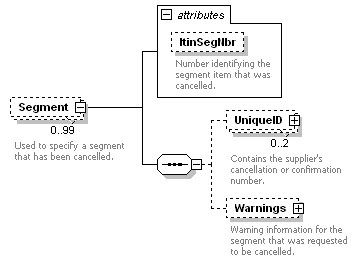

element OTA_CancelRS/Segment

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
properties	isRef  0 minOcc  0 maxOcc  99 content  complex
children	UniqueID Warnings
attributes	Name   Type   Use   Default   Fixed   Annotation ItinSegNbr   xs:nonNegativeInteger optional         documentation Number identifying the segment item that was cancelled.
annotation	documentation Used to specify a segment that has been cancelled.
source	<xs:element name="Segment" minOccurs="0" maxOccurs="99">   <xs:annotation>     <xs:documentation xml:lang="en">Used to specify a segment that has been cancelled.</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="UniqueID" type="UniqueID_Type" minOccurs="0" maxOccurs="2">         <xs:annotation>           <xs:documentation xml:lang="en">Contains the supplier's cancellation or confirmation number.</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="Warnings" type="WarningsType" minOccurs="0">         <xs:annotation>           <xs:documentation xml:lang="en">Warning information for the segment that was requested to be cancelled.</xs:documentation>         </xs:annotation>       </xs:element>     </xs:sequence>     <xs:attribute name="ItinSegNbr" type="xs:nonNegativeInteger" use="optional">       <xs:annotation>         <xs:documentation xml:lang="en">Number identifying the segment item that was cancelled.</xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

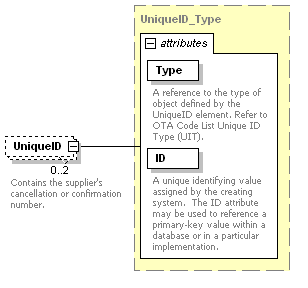

element OTA_CancelRS/Segment/UniqueID

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
type	UniqueID_Type
properties	isRef  0 minOcc  0 maxOcc  2 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation Type   OTA_CodeType required         documentation A reference to the type of object defined by the UniqueID element. Refer to OTA Code List Unique ID Type (UIT). ID   StringLength1to32 required         documentation A unique identifying value assigned by the creating system.  The ID attribute may be used to reference a primary-key value within a database or in a particular implementation.
annotation	documentation Contains the supplier's cancellation or confirmation number.
source	<xs:element name="UniqueID" type="UniqueID_Type" minOccurs="0" maxOccurs="2">   <xs:annotation>     <xs:documentation xml:lang="en">Contains the supplier's cancellation or confirmation number.</xs:documentation>   </xs:annotation> </xs:element>

element OTA_CancelRS/Segment/Warnings

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
type	WarningsType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	Warning
annotation	documentation Warning information for the segment that was requested to be cancelled.
source	<xs:element name="Warnings" type="WarningsType" minOccurs="0">   <xs:annotation>     <xs:documentation xml:lang="en">Warning information for the segment that was requested to be cancelled.</xs:documentation>   </xs:annotation> </xs:element>

element OTA_CancelRS/Errors

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
type	ErrorsType
properties	isRef  0 content  complex
children	Error
source	<xs:element name="Errors" type="ErrorsType"/>

element TPA_Extensions

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
type	TPA_Extensions_Type
properties	content  complex
annotation	documentation A placeholder in the schema to allow for additional elements and attributes to be included if required, per Trading Partner Agreement (TPA).
source	<xs:element name="TPA_Extensions" type="TPA_Extensions_Type">   <xs:annotation>     <xs:documentation xml:lang="en">A placeholder in the schema to allow for additional elements and attributes to be included if required, per Trading Partner Agreement (TPA).</xs:documentation>   </xs:annotation> </xs:element>

complexType ErrorsType

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
children	Error
used by	element  OTA_CancelRS/Errors
annotation	documentation A collection of errors that occurred during the processing of a message.
source	<xs:complexType name="ErrorsType">   <xs:annotation>     <xs:documentation xml:lang="en">A collection of errors that occurred during the processing of a message.</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="Error" type="ErrorType" maxOccurs="99"/>   </xs:sequence> </xs:complexType>

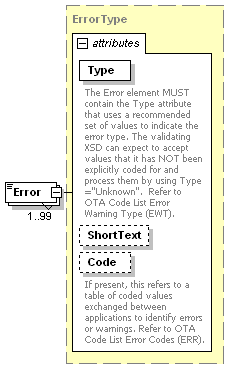

element ErrorsType/Error

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
type	ErrorType
properties	isRef  0 minOcc  1 maxOcc  99 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation Type   OTA_CodeType required         documentation The Error element MUST contain the Type attribute that uses a recommended set of values to indicate the error type. The validating XSD can expect to accept values that it has NOT been explicitly coded for and process them by using Type ="Unknown".  Refer to OTA Code List Error Warning Type (EWT). ShortText   StringLength1to64 optional         Code   OTA_CodeType optional         documentation If present, this refers to a table of coded values exchanged between applications to identify errors or warnings. Refer to OTA Code List Error Codes (ERR).
source	<xs:element name="Error" type="ErrorType" maxOccurs="99"/>

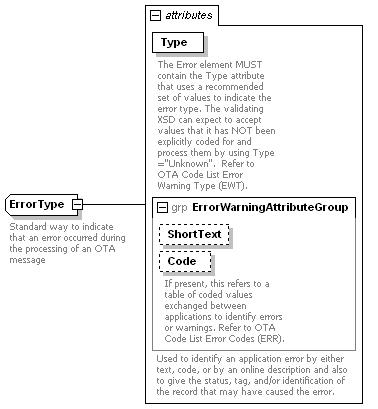

complexType ErrorType

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
type	extension of FreeTextType
properties	base  FreeTextType
used by	element  ErrorsType/Error
attributes	Name   Type   Use   Default   Fixed   Annotation Type   OTA_CodeType required         documentation The Error element MUST contain the Type attribute that uses a recommended set of values to indicate the error type. The validating XSD can expect to accept values that it has NOT been explicitly coded for and process them by using Type ="Unknown".  Refer to OTA Code List Error Warning Type (EWT). ShortText   StringLength1to64 optional         Code   OTA_CodeType optional         documentation If present, this refers to a table of coded values exchanged between applications to identify errors or warnings. Refer to OTA Code List Error Codes (ERR).
annotation	documentation Standard way to indicate that an error occurred during the processing of an OTA message
source	<xs:complexType name="ErrorType">   <xs:annotation>     <xs:documentation xml:lang="en">Standard way to indicate that an error occurred during the processing of an OTA message</xs:documentation>   </xs:annotation>   <xs:simpleContent>     <xs:extension base="FreeTextType">       <xs:attribute name="Type" type="OTA_CodeType" use="required">         <xs:annotation>           <xs:documentation xml:lang="en">The Error element MUST contain the Type attribute that uses a recommended set of values to indicate the error type. The validating XSD can expect to accept values that it has NOT been explicitly coded for and process them by using Type ="Unknown".  Refer to OTA Code List Error Warning Type (EWT).</xs:documentation>         </xs:annotation>       </xs:attribute>       <xs:attributeGroup ref="ErrorWarningAttributeGroup"/>     </xs:extension>   </xs:simpleContent> </xs:complexType>

complexType FreeTextType

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
type	extension of xs:string
properties	base  xs:string
used by	complexTypes  ErrorType WarningType
attributes	Name   Type   Use   Default   Fixed   Annotation
annotation	documentation Textual information to provide descriptions and/or additional information.
source	<xs:complexType name="FreeTextType">   <xs:annotation>     <xs:documentation xml:lang="en">Textual information to provide descriptions and/or additional information.</xs:documentation>   </xs:annotation>   <xs:simpleContent>     <xs:extension base="xs:string">       <xs:attributeGroup ref="LanguageGroup"/>     </xs:extension>   </xs:simpleContent> </xs:complexType>

complexType SuccessType

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
used by	element  OTA_CancelRS/Success
annotation	documentation Standard way to indicate successful processing of an OTA message. Returning an empty element of this type indicates success.
source	<xs:complexType name="SuccessType">   <xs:annotation>     <xs:documentation xml:lang="en">Standard way to indicate successful processing of an OTA message. Returning an empty element of this type indicates success.</xs:documentation>   </xs:annotation> </xs:complexType>

complexType TPA_Extensions_Type

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
used by	element  TPA_Extensions
annotation	documentation Allows extensions to be added to the OTA specification per trading partner agreement.
source	<xs:complexType name="TPA_Extensions_Type">   <xs:annotation>     <xs:documentation xml:lang="en">Allows extensions to be added to the OTA specification per trading partner agreement.</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:any processContents="skip" minOccurs="0" maxOccurs="unbounded"/>   </xs:sequence> </xs:complexType>

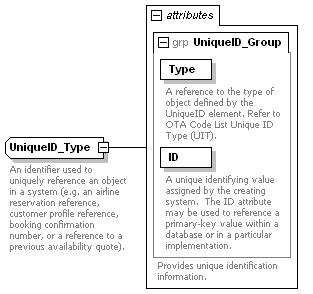

complexType UniqueID_Type

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
used by	elements  OTA_CancelRS/UniqueID OTA_CancelRS/Segment/UniqueID
attributes	Name   Type   Use   Default   Fixed   Annotation Type   OTA_CodeType required         documentation A reference to the type of object defined by the UniqueID element. Refer to OTA Code List Unique ID Type (UIT). ID   StringLength1to32 required         documentation A unique identifying value assigned by the creating system.  The ID attribute may be used to reference a primary-key value within a database or in a particular implementation.
annotation	documentation An identifier used to uniquely reference an object in a system (e.g. an airline reservation reference, customer profile reference, booking confirmation number, or a reference to a previous availability quote).
source	<xs:complexType name="UniqueID_Type">   <xs:annotation>     <xs:documentation xml:lang="en">An identifier used to uniquely reference an object in a system (e.g. an airline reservation reference, customer profile reference, booking confirmation number, or a reference to a previous availability quote). </xs:documentation>   </xs:annotation>   <xs:attributeGroup ref="UniqueID_Group"/> </xs:complexType>

complexType WarningsType

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
children	Warning
used by	elements  OTA_CancelRS/Warnings OTA_CancelRS/Segment/Warnings
source	<xs:complexType name="WarningsType">   <xs:sequence>     <xs:element name="Warning" type="WarningType" maxOccurs="99"/>   </xs:sequence> </xs:complexType>

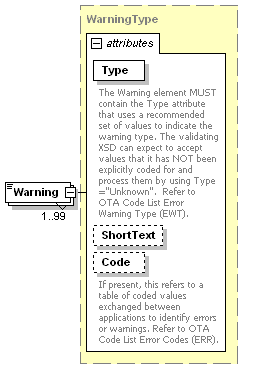

element WarningsType/Warning

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
type	WarningType
properties	isRef  0 minOcc  1 maxOcc  99 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation Type   OTA_CodeType required         documentation The Warning element MUST contain the Type attribute that uses a recommended set of values to indicate the warning type. The validating XSD can expect to accept values that it has NOT been explicitly coded for and process them by using Type ="Unknown".  Refer to OTA Code List Error Warning Type (EWT). ShortText   StringLength1to64 optional         Code   OTA_CodeType optional         documentation If present, this refers to a table of coded values exchanged between applications to identify errors or warnings. Refer to OTA Code List Error Codes (ERR).
source	<xs:element name="Warning" type="WarningType" maxOccurs="99"/>

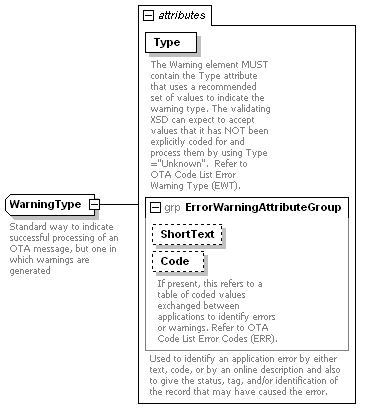

complexType WarningType

diagram
namespace	http://www.opentravel.org/OTA_RS/2003/05
type	extension of FreeTextType
properties	base  FreeTextType
used by	element  WarningsType/Warning
attributes	Name   Type   Use   Default   Fixed   Annotation Type   OTA_CodeType required         documentation The Warning element MUST contain the Type attribute that uses a recommended set of values to indicate the warning type. The validating XSD can expect to accept values that it has NOT been explicitly coded for and process them by using Type ="Unknown".  Refer to OTA Code List Error Warning Type (EWT). ShortText   StringLength1to64 optional         Code   OTA_CodeType optional         documentation If present, this refers to a table of coded values exchanged between applications to identify errors or warnings. Refer to OTA Code List Error Codes (ERR).
annotation	documentation Standard way to indicate successful processing of an OTA message, but one in which warnings are generated
source	<xs:complexType name="WarningType">   <xs:annotation>     <xs:documentation xml:lang="en">Standard way to indicate successful processing of an OTA message, but one in which warnings are generated</xs:documentation>   </xs:annotation>   <xs:simpleContent>     <xs:extension base="FreeTextType">       <xs:attribute name="Type" type="OTA_CodeType" use="required">         <xs:annotation>           <xs:documentation xml:lang="en">The Warning element MUST contain the Type attribute that uses a recommended set of values to indicate the warning type. The validating XSD can expect to accept values that it has NOT been explicitly coded for and process them by using Type ="Unknown".  Refer to OTA Code List Error Warning Type (EWT).</xs:documentation>         </xs:annotation>       </xs:attribute>       <xs:attributeGroup ref="ErrorWarningAttributeGroup"/>     </xs:extension>   </xs:simpleContent> </xs:complexType>

simpleType OTA_CodeType

namespace	http://www.opentravel.org/OTA_RS/2003/05
type	restriction of xs:string
used by	attributes  ErrorWarningAttributeGroup/@Code ErrorType/@Type WarningType/@Type UniqueID_Group/@Type
facets	pattern  [0-9A-Z]{1,3}(\.[A-Z]{3}(\.X){0,1}){0,1}
annotation	documentation Used for codes in the OTA code tables. Possible values of this pattern are 1, 101, 101.EQP, or 101.EQP.X.
source	<xs:simpleType name="OTA_CodeType">   <xs:annotation>     <xs:documentation xml:lang="en">Used for codes in the OTA code tables. Possible values of this pattern are 1, 101, 101.EQP, or 101.EQP.X.</xs:documentation>   </xs:annotation>   <xs:restriction base="xs:string">     <xs:pattern value="[0-9A-Z]{1,3}(\.[A-Z]{3}(\.X){0,1}){0,1}"/>   </xs:restriction> </xs:simpleType>

simpleType StringLength1to32

namespace	http://www.opentravel.org/OTA_RS/2003/05
type	restriction of xs:string
used by	attributes  ID_Group/@ID OTA_PayloadStdAttributes/@TransactionIdentifier
facets	minLength  1 maxLength  32
annotation	documentation Used for Character Strings, length 1 to 32
source	<xs:simpleType name="StringLength1to32">   <xs:annotation>     <xs:documentation xml:lang="en">Used for Character Strings, length 1 to 32</xs:documentation>   </xs:annotation>   <xs:restriction base="xs:string">     <xs:minLength value="1"/>     <xs:maxLength value="32"/>   </xs:restriction> </xs:simpleType>

simpleType StringLength1to64

namespace	http://www.opentravel.org/OTA_RS/2003/05
type	restriction of xs:string
used by	attribute  ErrorWarningAttributeGroup/@ShortText
facets	minLength  1 maxLength  64
annotation	documentation Used for Character Strings, length 1 to 64
source	<xs:simpleType name="StringLength1to64">   <xs:annotation>     <xs:documentation xml:lang="en">Used for Character Strings, length 1 to 64</xs:documentation>   </xs:annotation>   <xs:restriction base="xs:string">     <xs:minLength value="1"/>     <xs:maxLength value="64"/>   </xs:restriction> </xs:simpleType>

simpleType TransactionStatusType

namespace	http://www.opentravel.org/OTA_RS/2003/05
type	restriction of xs:string
used by	attribute  OTA_CancelRS/@Status
facets	enumeration  Pending enumeration  Cancelled enumeration  Modified enumeration  Committed enumeration  Ignored enumeration  On Hold enumeration  Unsuccessful
annotation	documentation To specify a status to the transaction, usually in the response message, of the action specifed in the request message.
source	<xs:simpleType name="TransactionStatusType">   <xs:annotation>     <xs:documentation xml:lang="en">To specify a status to the transaction, usually in the response message, of the action specifed in the request message. </xs:documentation>   </xs:annotation>   <xs:restriction base="xs:string">     <xs:enumeration value="Pending"/>     <xs:enumeration value="Cancelled"/>     <xs:enumeration value="Modified"/>     <xs:enumeration value="Committed"/>     <xs:enumeration value="Ignored"/>     <xs:enumeration value="On Hold"/>     <xs:enumeration value="Unsuccessful"/>   </xs:restriction> </xs:simpleType>

attributeGroup ErrorWarningAttributeGroup

namespace	http://www.opentravel.org/OTA_RS/2003/05
used by	complexTypes  ErrorType WarningType
attributes	Name   Type   Use   Default   Fixed   Annotation ShortText   StringLength1to64 optional         Code   OTA_CodeType optional         documentation If present, this refers to a table of coded values exchanged between applications to identify errors or warnings. Refer to OTA Code List Error Codes (ERR).
annotation	documentation Used to identify an application error by either text, code, or by an online description and also to give the status, tag, and/or identification of the record that may have caused the error.
source	<xs:attributeGroup name="ErrorWarningAttributeGroup">   <xs:annotation>     <xs:documentation xml:lang="en">Used to identify an application error by either text, code, or by an online description and also to give the status, tag, and/or identification of the record that may have caused the error.</xs:documentation>   </xs:annotation>   <xs:attribute name="ShortText" type="StringLength1to64" use="optional"/>   <xs:attribute name="Code" type="OTA_CodeType" use="optional">     <xs:annotation>       <xs:documentation xml:lang="en">If present, this refers to a table of coded values exchanged between applications to identify errors or warnings. Refer to OTA Code List Error Codes (ERR).</xs:documentation>     </xs:annotation>   </xs:attribute> </xs:attributeGroup>

attributeGroup ID_Group

namespace	http://www.opentravel.org/OTA_RS/2003/05
used by	attributeGroup  UniqueID_Group
attributes	Name   Type   Use   Default   Fixed   Annotation ID   StringLength1to32 required         documentation A unique identifying value assigned by the creating system.  The ID attribute may be used to reference a primary-key value within a database or in a particular implementation.
annotation	documentation Used to provide a required unique identifier.
source	<xs:attributeGroup name="ID_Group">   <xs:annotation>     <xs:documentation xml:lang="en">Used to provide a required unique identifier.</xs:documentation>   </xs:annotation>   <xs:attribute name="ID" type="StringLength1to32" use="required">     <xs:annotation>       <xs:documentation xml:lang="en">A unique identifying value assigned by the creating system.  The ID attribute may be used to reference a primary-key value within a database or in a particular implementation.</xs:documentation>     </xs:annotation>   </xs:attribute> </xs:attributeGroup>

attributeGroup LanguageGroup

namespace	http://www.opentravel.org/OTA_RS/2003/05
used by	complexType  FreeTextType
annotation	documentation Identifies language.
source	<xs:attributeGroup name="LanguageGroup">   <xs:annotation>     <xs:documentation xml:lang="en">Identifies language.</xs:documentation>   </xs:annotation> </xs:attributeGroup>

attributeGroup OTA_PayloadStdAttributes

namespace	http://www.opentravel.org/OTA_RS/2003/05
used by	element  OTA_CancelRS
attributes	Name   Type   Use   Default   Fixed   Annotation Version   xs:decimal required         documentation For all OTA versioned messages, the version of the message is indicated by a decimal value. TransactionIdentifier   StringLength1to32 optional         documentation A unique identifier to relate all messages within a transaction (e.g. this would be sent in all request and response messages that are part of an on-going transaction).
annotation	documentation The OTA_PayloadStdAttributes defines the standard attributes that appear on the root element for all OTA payloads.
source	<xs:attributeGroup name="OTA_PayloadStdAttributes">   <xs:annotation>     <xs:documentation xml:lang="en">The OTA_PayloadStdAttributes defines the standard attributes that appear on the root element for all OTA payloads.</xs:documentation>   </xs:annotation>   <xs:attribute name="Version" type="xs:decimal" use="required">     <xs:annotation>       <xs:documentation xml:lang="en">For all OTA versioned messages, the version of the message is indicated by a decimal value.</xs:documentation>     </xs:annotation>   </xs:attribute>   <xs:attribute name="TransactionIdentifier" type="StringLength1to32" use="optional">     <xs:annotation>       <xs:documentation xml:lang="en">A unique identifier to relate all messages within a transaction (e.g. this would be sent in all request and response messages that are part of an on-going transaction).</xs:documentation>     </xs:annotation>   </xs:attribute> </xs:attributeGroup>

attributeGroup UniqueID_Group

namespace	http://www.opentravel.org/OTA_RS/2003/05
used by	complexType  UniqueID_Type
attributes	Name   Type   Use   Default   Fixed   Annotation Type   OTA_CodeType required         documentation A reference to the type of object defined by the UniqueID element. Refer to OTA Code List Unique ID Type (UIT). ID   StringLength1to32 required         documentation A unique identifying value assigned by the creating system.  The ID attribute may be used to reference a primary-key value within a database or in a particular implementation.
annotation	documentation Provides unique identification information.
source	<xs:attributeGroup name="UniqueID_Group">   <xs:annotation>     <xs:documentation xml:lang="en">Provides unique identification information.</xs:documentation>   </xs:annotation>   <xs:attribute name="Type" type="OTA_CodeType" use="required">     <xs:annotation>       <xs:documentation xml:lang="en">A reference to the type of object defined by the UniqueID element. Refer to OTA Code List Unique ID Type (UIT).</xs:documentation>     </xs:annotation>   </xs:attribute>   <xs:attributeGroup ref="ID_Group"/> </xs:attributeGroup>
