Schema OTA_CancelRQ.xsd

schema location:	http://xmlprosdk.wspan.com/msgdoc/wsdl/OTA_CancelRQ.xsd
attribute form default:
element form default:	qualified
targetNamespace:	http://www.opentravel.org/OTA/2003/05

Elements	Complex types	Simple types	Attr. groups
OTA_CancelRQ	POS_Type	OTA_CodeType	ID_Group
TPA_Extensions	SourceType	StringLength1to32	OTA_PayloadStdAttributes
	TPA_Extensions_Type	StringLength1to64	UniqueID_Group
	UniqueID_Type	TransactionActionType

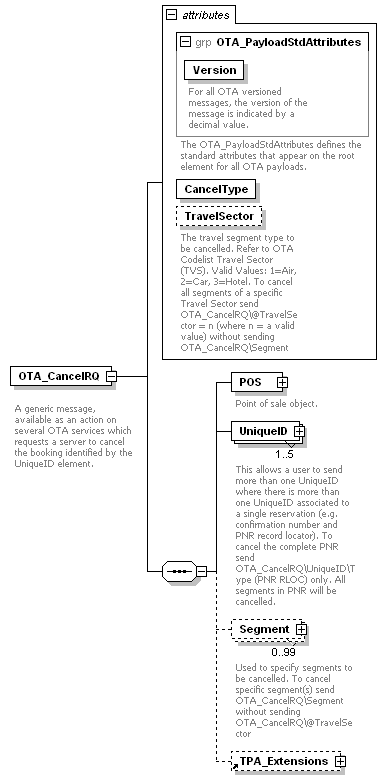

element OTA_CancelRQ

diagram
namespace	http://www.opentravel.org/OTA/2003/05
properties	content  complex
children	POS UniqueID Segment TPA_Extensions
attributes	Name   Type   Use   Default   Fixed   Annotation Version   xs:decimal required         documentation For all OTA versioned messages, the version of the message is indicated by a decimal value. CancelType   TransactionActionType required         TravelSector   OTA_CodeType optional         documentation The travel segment type to be cancelled. Refer to OTA Codelist Travel Sector (TVS). Valid Values: 1=Air, 2=Car, 3=Hotel. To cancel all segments of a specific Travel Sector send OTA_CancelRQ\@TravelSector = n (where n = a valid value) without sending OTA_CancelRQ\Segment
annotation	documentation A generic message, available as an action on several OTA services which requests a server to cancel the booking identified by the UniqueID element.
source	<xs:element name="OTA_CancelRQ">   <xs:annotation>     <xs:documentation xml:lang="en"> A generic message, available as an action on several OTA services which requests a server to cancel the booking identified by the UniqueID element. </xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element name="POS" type="POS_Type">         <xs:annotation>           <xs:documentation xml:lang="en">Point of sale object. </xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="UniqueID" type="UniqueID_Type" maxOccurs="5">         <xs:annotation>           <xs:documentation xml:lang="en">This allows a user to send more than one UniqueID where there is more than one UniqueID associated to a single reservation (e.g. confirmation number and PNR record locator). To cancel the complete PNR send OTA_CancelRQ\UniqueID\Type (PNR RLOC) only. All segments in PNR will be cancelled.</xs:documentation>         </xs:annotation>       </xs:element>       <xs:element name="Segment" minOccurs="0" maxOccurs="99">         <xs:annotation>           <xs:documentation xml:lang="en">Used to specify segments to be cancelled. To cancel specific segment(s) send OTA_CancelRQ\Segment without sending OTA_CancelRQ\@TravelSector</xs:documentation>         </xs:annotation>         <xs:complexType>           <xs:attribute name="ItinSegNbr" type="xs:nonNegativeInteger" use="optional">             <xs:annotation>               <xs:documentation xml:lang="en">Number identifying the segment item to be cancelled.</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="FirstItinSegNbr" type="xs:nonNegativeInteger" use="optional">             <xs:annotation>               <xs:documentation xml:lang="en">The beginning number in a range that identifies the first segment  item to be cancelled.</xs:documentation>             </xs:annotation>           </xs:attribute>           <xs:attribute name="LastItinSegNbr" type="xs:nonNegativeInteger" use="optional">             <xs:annotation>               <xs:documentation xml:lang="en">The last number in a range that identifies the last segment  item to be cancelled.</xs:documentation>             </xs:annotation>           </xs:attribute>         </xs:complexType>       </xs:element>       <xs:element ref="TPA_Extensions" minOccurs="0"/>     </xs:sequence>     <xs:attributeGroup ref="OTA_PayloadStdAttributes"/>     <xs:attribute name="CancelType" type="TransactionActionType" use="required"/>     <xs:attribute name="TravelSector" type="OTA_CodeType" use="optional">       <xs:annotation>         <xs:documentation xml:lang="en">The travel segment type to be cancelled. Refer to OTA Codelist Travel Sector (TVS). Valid Values: 1=Air, 2=Car, 3=Hotel. To cancel all segments of a specific Travel Sector send OTA_CancelRQ\@TravelSector = n (where n = a valid value) without sending OTA_CancelRQ\Segment</xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

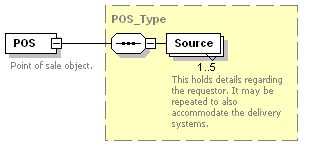

element OTA_CancelRQ/POS

diagram
namespace	http://www.opentravel.org/OTA/2003/05
type	POS_Type
properties	isRef  0 content  complex
children	Source
annotation	documentation Point of sale object.
source	<xs:element name="POS" type="POS_Type">   <xs:annotation>     <xs:documentation xml:lang="en">Point of sale object. </xs:documentation>   </xs:annotation> </xs:element>

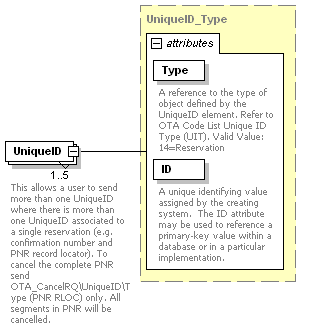

element OTA_CancelRQ/UniqueID

diagram
namespace	http://www.opentravel.org/OTA/2003/05
type	UniqueID_Type
properties	isRef  0 minOcc  1 maxOcc  5 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation Type   OTA_CodeType required         documentation A reference to the type of object defined by the UniqueID element. Refer to OTA Code List Unique ID Type (UIT). Valid Value: 14=Reservation ID   StringLength1to32 required         documentation A unique identifying value assigned by the creating system.  The ID attribute may be used to reference a primary-key value within a database or in a particular implementation.
annotation	documentation This allows a user to send more than one UniqueID where there is more than one UniqueID associated to a single reservation (e.g. confirmation number and PNR record locator). To cancel the complete PNR send OTA_CancelRQ\UniqueID\Type (PNR RLOC) only. All segments in PNR will be cancelled.
source	<xs:element name="UniqueID" type="UniqueID_Type" maxOccurs="5">   <xs:annotation>     <xs:documentation xml:lang="en">This allows a user to send more than one UniqueID where there is more than one UniqueID associated to a single reservation (e.g. confirmation number and PNR record locator). To cancel the complete PNR send OTA_CancelRQ\UniqueID\Type (PNR RLOC) only. All segments in PNR will be cancelled.</xs:documentation>   </xs:annotation> </xs:element>

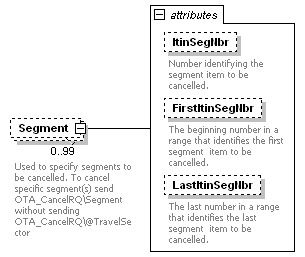

element OTA_CancelRQ/Segment

diagram
namespace	http://www.opentravel.org/OTA/2003/05
properties	isRef  0 minOcc  0 maxOcc  99 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation ItinSegNbr   xs:nonNegativeInteger optional         documentation Number identifying the segment item to be cancelled. FirstItinSegNbr   xs:nonNegativeInteger optional         documentation The beginning number in a range that identifies the first segment  item to be cancelled. LastItinSegNbr   xs:nonNegativeInteger optional         documentation The last number in a range that identifies the last segment  item to be cancelled.
annotation	documentation Used to specify segments to be cancelled. To cancel specific segment(s) send OTA_CancelRQ\Segment without sending OTA_CancelRQ\@TravelSector
source	<xs:element name="Segment" minOccurs="0" maxOccurs="99">   <xs:annotation>     <xs:documentation xml:lang="en">Used to specify segments to be cancelled. To cancel specific segment(s) send OTA_CancelRQ\Segment without sending OTA_CancelRQ\@TravelSector</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:attribute name="ItinSegNbr" type="xs:nonNegativeInteger" use="optional">       <xs:annotation>         <xs:documentation xml:lang="en">Number identifying the segment item to be cancelled.</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="FirstItinSegNbr" type="xs:nonNegativeInteger" use="optional">       <xs:annotation>         <xs:documentation xml:lang="en">The beginning number in a range that identifies the first segment  item to be cancelled.</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attribute name="LastItinSegNbr" type="xs:nonNegativeInteger" use="optional">       <xs:annotation>         <xs:documentation xml:lang="en">The last number in a range that identifies the last segment  item to be cancelled.</xs:documentation>       </xs:annotation>     </xs:attribute>   </xs:complexType> </xs:element>

element TPA_Extensions

diagram
namespace	http://www.opentravel.org/OTA/2003/05
type	TPA_Extensions_Type
properties	content  complex
used by	element  OTA_CancelRQ
attributes	Name   Type   Use   Default   Fixed   Annotation ChangeTicketing   xs:boolean optional         ReceivedFrom   StringLength1to32 optional
source	<xs:element name="TPA_Extensions" type="TPA_Extensions_Type"/>

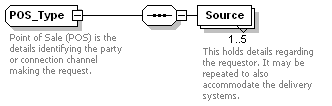

complexType POS_Type

diagram
namespace	http://www.opentravel.org/OTA/2003/05
children	Source
used by	element  OTA_CancelRQ/POS
annotation	documentation Point of Sale (POS) is the details identifying the party or connection channel making the request.
source	<xs:complexType name="POS_Type">   <xs:annotation>     <xs:documentation xml:lang="en">Point of Sale (POS) is the details identifying the party or connection channel making the request.</xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="Source" type="SourceType" maxOccurs="5">       <xs:annotation>         <xs:documentation xml:lang="en">This holds details regarding the requestor. It may be repeated to also accommodate the delivery systems.</xs:documentation>       </xs:annotation>     </xs:element>   </xs:sequence> </xs:complexType>

element POS_Type/Source

diagram
namespace	http://www.opentravel.org/OTA/2003/05
type	SourceType
properties	isRef  0 minOcc  1 maxOcc  5 content  complex
annotation	documentation This holds details regarding the requestor. It may be repeated to also accommodate the delivery systems.
source	<xs:element name="Source" type="SourceType" maxOccurs="5">   <xs:annotation>     <xs:documentation xml:lang="en">This holds details regarding the requestor. It may be repeated to also accommodate the delivery systems.</xs:documentation>   </xs:annotation> </xs:element>

complexType SourceType

diagram
namespace	http://www.opentravel.org/OTA/2003/05
used by	element  POS_Type/Source
annotation	documentation Provides information on the source of a request.
source	<xs:complexType name="SourceType">   <xs:annotation>     <xs:documentation xml:lang="en">Provides information on the source of a request.</xs:documentation>   </xs:annotation> </xs:complexType>

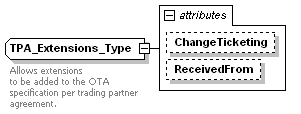

complexType TPA_Extensions_Type

diagram
namespace	http://www.opentravel.org/OTA/2003/05
used by	element  TPA_Extensions
attributes	Name   Type   Use   Default   Fixed   Annotation ChangeTicketing   xs:boolean optional         ReceivedFrom   StringLength1to32 optional
annotation	documentation Allows extensions to be added to the OTA specification per trading partner agreement.
source	<xs:complexType name="TPA_Extensions_Type">   <xs:annotation>     <xs:documentation xml:lang="en">Allows extensions to be added to the OTA specification per trading partner agreement.</xs:documentation>   </xs:annotation>   <xs:attribute name="ChangeTicketing" type="xs:boolean" use="optional"/>   <xs:attribute name="ReceivedFrom" type="StringLength1to32" use="optional"/> </xs:complexType>

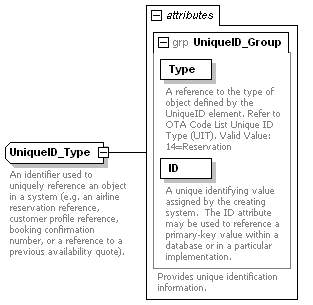

complexType UniqueID_Type

diagram
namespace	http://www.opentravel.org/OTA/2003/05
used by	element  OTA_CancelRQ/UniqueID
attributes	Name   Type   Use   Default   Fixed   Annotation Type   OTA_CodeType required         documentation A reference to the type of object defined by the UniqueID element. Refer to OTA Code List Unique ID Type (UIT). Valid Value: 14=Reservation ID   StringLength1to32 required         documentation A unique identifying value assigned by the creating system.  The ID attribute may be used to reference a primary-key value within a database or in a particular implementation.
annotation	documentation An identifier used to uniquely reference an object in a system (e.g. an airline reservation reference, customer profile reference, booking confirmation number, or a reference to a previous availability quote).
source	<xs:complexType name="UniqueID_Type">   <xs:annotation>     <xs:documentation xml:lang="en">An identifier used to uniquely reference an object in a system (e.g. an airline reservation reference, customer profile reference, booking confirmation number, or a reference to a previous availability quote). </xs:documentation>   </xs:annotation>   <xs:attributeGroup ref="UniqueID_Group"/> </xs:complexType>

simpleType OTA_CodeType

namespace	http://www.opentravel.org/OTA/2003/05
type	restriction of xs:string
used by	attributes  OTA_CancelRQ/@TravelSector UniqueID_Group/@Type
facets	pattern  [0-9A-Z]{1,3}(\.[A-Z]{3}(\.X){0,1}){0,1}
annotation	documentation Used for codes in the OTA code tables. Possible values of this pattern are 1, 101, 101.EQP, or 101.EQP.X.
source	<xs:simpleType name="OTA_CodeType">   <xs:annotation>     <xs:documentation xml:lang="en">Used for codes in the OTA code tables. Possible values of this pattern are 1, 101, 101.EQP, or 101.EQP.X.</xs:documentation>   </xs:annotation>   <xs:restriction base="xs:string">     <xs:pattern value="[0-9A-Z]{1,3}(\.[A-Z]{3}(\.X){0,1}){0,1}"/>   </xs:restriction> </xs:simpleType>

simpleType StringLength1to32

namespace	http://www.opentravel.org/OTA/2003/05
type	restriction of xs:string
used by	attributes  ID_Group/@ID TPA_Extensions_Type/@ReceivedFrom
facets	minLength  1 maxLength  32
annotation	documentation Used for Character Strings, length 1 to 32
source	<xs:simpleType name="StringLength1to32">   <xs:annotation>     <xs:documentation xml:lang="en">Used for Character Strings, length 1 to 32</xs:documentation>   </xs:annotation>   <xs:restriction base="xs:string">     <xs:minLength value="1"/>     <xs:maxLength value="32"/>   </xs:restriction> </xs:simpleType>

simpleType StringLength1to64

namespace	http://www.opentravel.org/OTA/2003/05
type	restriction of xs:string
facets	minLength  1 maxLength  64
annotation	documentation Used for Character Strings, length 1 to 64
source	<xs:simpleType name="StringLength1to64">   <xs:annotation>     <xs:documentation xml:lang="en">Used for Character Strings, length 1 to 64</xs:documentation>   </xs:annotation>   <xs:restriction base="xs:string">     <xs:minLength value="1"/>     <xs:maxLength value="64"/>   </xs:restriction> </xs:simpleType>

simpleType TransactionActionType

namespace	http://www.opentravel.org/OTA/2003/05
type	restriction of xs:string
used by	attribute  OTA_CancelRQ/@CancelType
facets	enumeration  Book enumeration  Quote enumeration  Hold enumeration  Initiate enumeration  Ignore enumeration  Modify enumeration  Commit enumeration  Cancel
annotation	documentation To specify the type of action requested when more than one function could be handled by the message.
source	<xs:simpleType name="TransactionActionType">   <xs:annotation>     <xs:documentation xml:lang="en">To specify the type of action requested when more than one function could be handled by the message. </xs:documentation>   </xs:annotation>   <xs:restriction base="xs:string">     <xs:enumeration value="Book"/>     <xs:enumeration value="Quote"/>     <xs:enumeration value="Hold"/>     <xs:enumeration value="Initiate"/>     <xs:enumeration value="Ignore"/>     <xs:enumeration value="Modify"/>     <xs:enumeration value="Commit"/>     <xs:enumeration value="Cancel"/>   </xs:restriction> </xs:simpleType>

attributeGroup ID_Group

namespace	http://www.opentravel.org/OTA/2003/05
used by	attributeGroup  UniqueID_Group
attributes	Name   Type   Use   Default   Fixed   Annotation ID   StringLength1to32 required         documentation A unique identifying value assigned by the creating system.  The ID attribute may be used to reference a primary-key value within a database or in a particular implementation.
annotation	documentation Used to provide a required unique identifier.
source	<xs:attributeGroup name="ID_Group">   <xs:annotation>     <xs:documentation xml:lang="en">Used to provide a required unique identifier.</xs:documentation>   </xs:annotation>   <xs:attribute name="ID" type="StringLength1to32" use="required">     <xs:annotation>       <xs:documentation xml:lang="en">A unique identifying value assigned by the creating system.  The ID attribute may be used to reference a primary-key value within a database or in a particular implementation.</xs:documentation>     </xs:annotation>   </xs:attribute> </xs:attributeGroup>

attributeGroup OTA_PayloadStdAttributes

namespace	http://www.opentravel.org/OTA/2003/05
used by	element  OTA_CancelRQ
attributes	Name   Type   Use   Default   Fixed   Annotation Version   xs:decimal required         documentation For all OTA versioned messages, the version of the message is indicated by a decimal value.
annotation	documentation The OTA_PayloadStdAttributes defines the standard attributes that appear on the root element for all OTA payloads.
source	<xs:attributeGroup name="OTA_PayloadStdAttributes">   <xs:annotation>     <xs:documentation xml:lang="en">The OTA_PayloadStdAttributes defines the standard attributes that appear on the root element for all OTA payloads.</xs:documentation>   </xs:annotation>   <xs:attribute name="Version" type="xs:decimal" use="required">     <xs:annotation>       <xs:documentation xml:lang="en">For all OTA versioned messages, the version of the message is indicated by a decimal value.</xs:documentation>     </xs:annotation>   </xs:attribute> </xs:attributeGroup>

attributeGroup UniqueID_Group

namespace	http://www.opentravel.org/OTA/2003/05
used by	complexType  UniqueID_Type
attributes	Name   Type   Use   Default   Fixed   Annotation Type   OTA_CodeType required         documentation A reference to the type of object defined by the UniqueID element. Refer to OTA Code List Unique ID Type (UIT). Valid Value: 14=Reservation ID   StringLength1to32 required         documentation A unique identifying value assigned by the creating system.  The ID attribute may be used to reference a primary-key value within a database or in a particular implementation.
annotation	documentation Provides unique identification information.
source	<xs:attributeGroup name="UniqueID_Group">   <xs:annotation>     <xs:documentation xml:lang="en">Provides unique identification information.</xs:documentation>   </xs:annotation>   <xs:attribute name="Type" type="OTA_CodeType" use="required">     <xs:annotation>       <xs:documentation xml:lang="en">A reference to the type of object defined by the UniqueID element. Refer to OTA Code List Unique ID Type (UIT). Valid Value: 14=Reservation</xs:documentation>     </xs:annotation>   </xs:attribute>   <xs:attributeGroup ref="ID_Group"/> </xs:attributeGroup>
